RT1N141C - Transistor

Download the RT1N141C datasheet PDF. This datasheet also covers the RT1N141x variant, as both devices belong to the same transistor family and are provided as variant models within a single manufacturer datasheet.

Description

RT1N141X is a one chip transistor with built-in bias resistor,PNP type is RT1P141X.

Built-in bias resistor (R1=10kΩ,R2=10kΩ).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (RT1N141x_IsahayaElectronicsCorporation.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number RT1N141C
Manufacturer Isahaya Electronics Corporation
File Size 151.05 KB
Description Transistor
Datasheet download datasheet RT1N141C Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
RT1N140C Transistor Isahaya Electronics
RT1N140M Transistor Isahaya Electronics
RT1N140S Transistor Isahaya Electronics
RT1N140U Transistor Isahaya Electronics
RT1N144C Transistor Isahaya Electronics

Other Datasheets by Isahaya Electronics Corporation

Part Number Description
RT1N141M Transistor
RT1N141S Transistor
RT1N141T Transistor
RT1N141U Transistor
RT1N137L Transistor

Full PDF Text Transcription

Click to expand full text

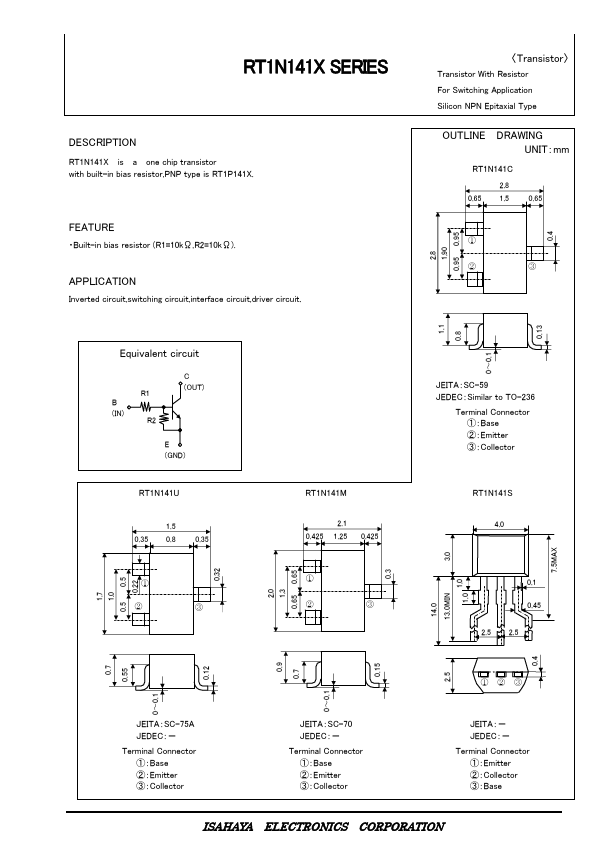

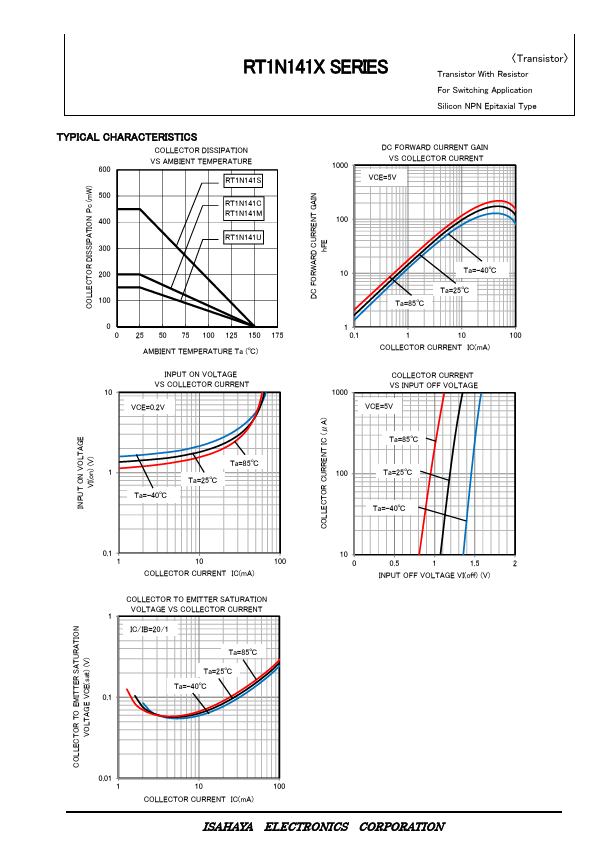

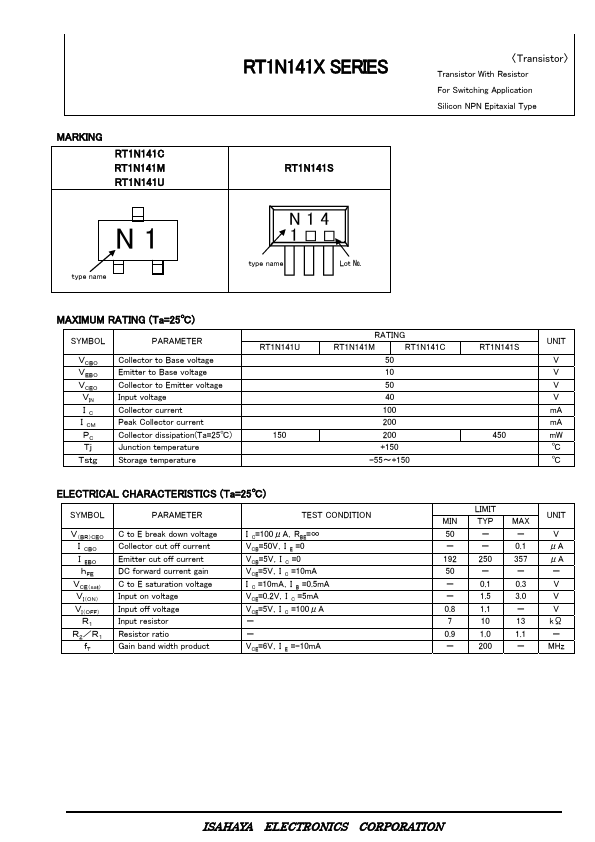

ＲＴ１Ｎ１４１Ｘ SERIES 〈Transistor〉 Transistor With Resistor For Switching Application Silicon NPN Epitaxial Type DESCRIPTION RT1N141X is a one chip transistor with built-in bias resistor,PNP type is RT1P141X. RT1N141U 1.6 OUTLINE DRAWING RT1N141C 2.5 UNIT：mm FEATURE Built-in bias resistor (R1=10kΩ,R2=10kΩ). www.DataSheet4U.com 0.5 0.4 0.8 0.4 0.5 1.5 0.5 0.3 ① ② ③ 0.95 ① ② ③ 2.9 1.90 1.6 1.0 APPLICATION Inverted circuit,switching circuit,interface circuit, driver circuit. 0.7 0.15 1.1 0.55 0.8 0.16 0～0.1 R1 B (IN) R2 C (OUT) JEITA：－ JEDEC：－ Terminal Connector ①：Base ②：Emitter ③：Collector JEITA：SC-59 JEDEC：Similar to TO-236 Terminal Connector ①：Base ②：Emitter ③：Collector E (GND) RT1N141M RT1N141S 2.1 4.0 0.425 1.25 0.425 RT1N141T 0～0.1 Equivalent circuit 0.95 0.
