IRS20957S - Protected Digital Audio Driver

Description

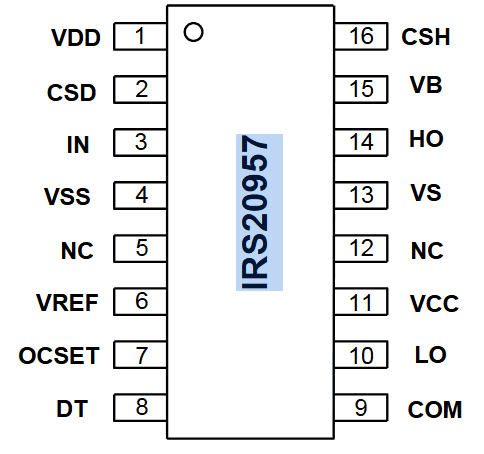

Qualification Information Absolute Maximum Ratings Recommended Operating Conditions Electrical Characteristics Functional Block Diagram Input/Output Pin Equivalent Circuit Diagram Lead Definitions Lead Assignments Waveform definitions Application information and additional information Package Detail

Features

  • Floating PWM input enables easy half bridge implementation Programmable bidirectional over-current protection with self-reset function Programmable preset dead-time for improved THD performances High noise immunity ±100V ratings deliver up to 500W in output power 3.3 V/ 5 V logic compatible input Operates up to 800kHz Product Summary Topology Half-Bri.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IRS20752LPBF SOT-23 High-Side Gate Driver Infineon
IRS21867S HIGH AND LOW SIDE DRIVER IRF
IRS2452AM Class-D Audio-IC Infineon
IRS2461S 400V Class D Audio Amplifier Controller Infineon
IRS2505LPBF Boost PFC and SMPS Controller Infineon

Other Datasheets by International Rectifier (now Infineon)

Part Number Description
IRS20954S Protected Digital Audio Driver
IRS20954SPBF Protected Digital Audio Driver
IRS20955PBF PROTECTED DIGITAL AUDIO DRIVER
IRS20955SPBF PROTECTED DIGITAL AUDIO DRIVER
IRS2092 PROTECTED DIGITAL AUDIO AMPLIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
March 5, 2009 Datasheet No – PD97381 IRS20957S Protected Digital Audio Driver Features • • • • • • • Floating PWM input enables easy half bridge implementation Programmable bidirectional over-current protection with self-reset function Programmable preset dead-time for improved THD performances High noise immunity ±100V ratings deliver up to 500W in output power 3.3 V/ 5 V logic compatible input Operates up to 800kHz Product Summary Topology Half-Bri VOFFSET (max) IO+ & IO- (typical) Selectable deadtime Ton & toff (typical) OC protection delay Shutdown propagation delay dge +/- 100 V 1.0 A & 1.
