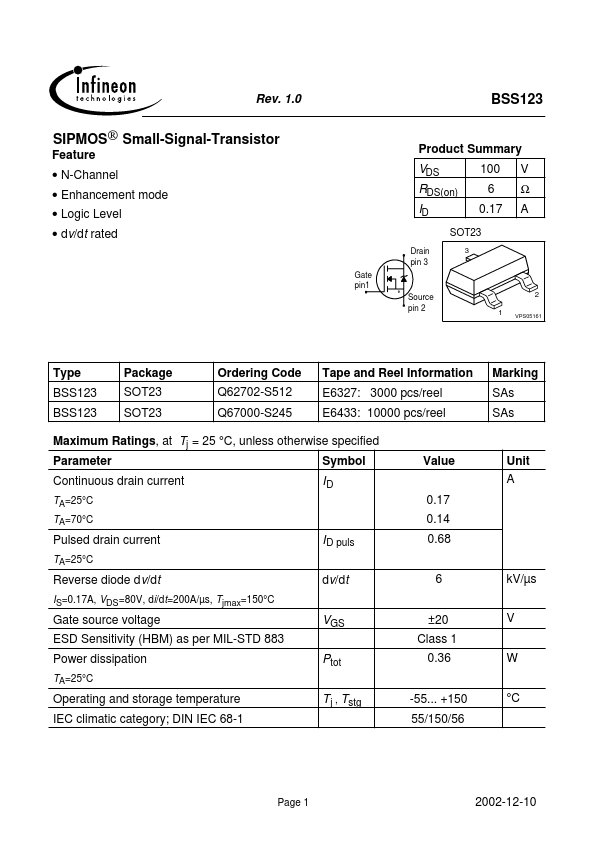

Rev. 1.0
SIPMOS Small-Signal-Transistor
Feature • N-Channel • Enhancement mode • Logic Level • dv/dt rated
BSS123
Product Summary
VDS RDS(on) ID
100 V 6Ω
0.17 A
Gate pin1
Drain pin 3
SOT23
3
Source pin 2
2 1 VPS05161
Type BSS123 BSS123
Package SOT23 SOT23
Ordering Code Q62702-S512 Q67000-S245
Tape and Reel Information E6327: 3000 pcs/reel E6433: 10000 pcs/reel
Marking SAs SAs
Maximum Ratings, at Tj = 25 °C, unless otherwise specified
Parameter
Symbol
Continuous drain current
ID
TA=25°C
TA=70°C
Pulsed drain current
ID puls
TA=25°C
Reverse diode dv/dt
dv/dt
IS=0.
