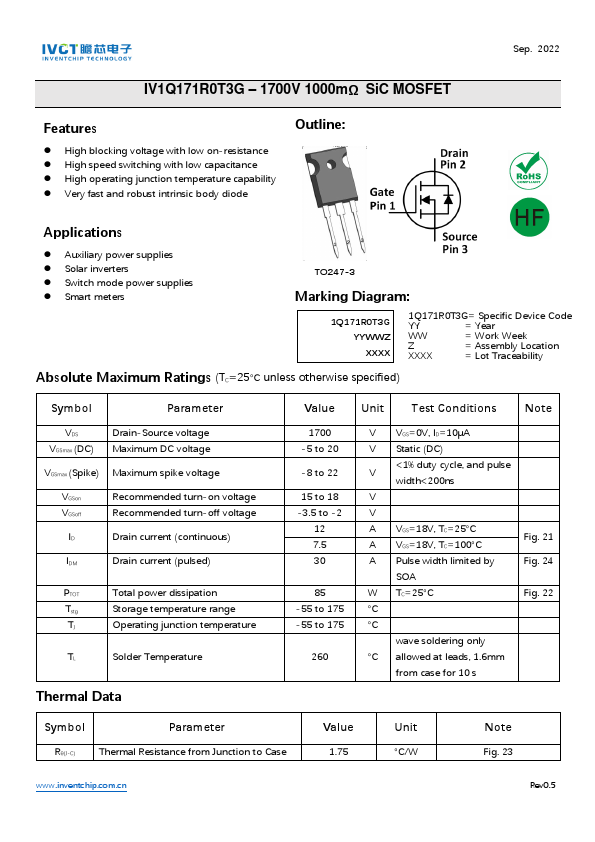

IV1Q171R0T3G
Features
- High blocking voltage with low on-resistance
- High speed switching with low capacitance
- High operating junction temperature capability
- Very fast and robust intrinsic body diode
Outline:
Applications
- Auxiliary power supplies
- Solar inverters
- Switch mode power supplies
- Smart meters
TO247-3
Marking Diagram:
1Q171R0T3G YYWWZ XXXX
1Q171R0T3G= Specific Device Code
= Year
= Work Week
= Assembly Location
XXXX
= Lot Traceability
Absolute Maximum Ratings (TC=25°C unless otherwise specified)
Symbol
Parameter
VDS VGSmax (DC)
Drain-Source voltage Maximum DC voltage
VGSmax (Spike) Maximum spike voltage
VGSon
Remended turn-on voltage
VGSoff
Remended turn-off voltage
Drain current (continuous)
Drain current (pulsed)
PTOT
Total power dissipation
Tstg...
