C2484 - 2SC2484

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 80V(Min) High Power Dissipation Complement to Type 2SA1060 APPLICATIONS Designed for high power audio frequency amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) i.cnSYMBOL PARAMETER VALUE UNIT .iscsemVCBO Collector-B

INCHANGE

📥 Download Datasheet

Datasheet Details

Part number	C2484
Manufacturer	INCHANGE
File Size	230.37 KB
Description	2SC2484
Datasheet	C2484 Datasheet
Additional preview pages of the C2484 datasheet.

📁 Similar Datasheet

C2480 - Silicon NPN Transistor (Panasonic)
C2482 - 2SC2482 (Toshiba Semiconductor)
C24 - Capacitor (Xiamen Faratronic)
C2400 - TCXO (Vectron International)
C2404 - Silicon NPN Transistor (Panasonic)
C2405 - Silicon NPN Transistor (Panasonic)
C2406 - 2SC2406 (Panasonic Semiconductor)
C2407 - NPN Silicon Transistor (NEC)
C2410 - TCXO (Vectron International)
C241J105 - Capacitor (Xiamen Faratronic)

Other Datasheets by INCHANGE

C2489 - 2SC2489

Full PDF Text Transcription

Click to expand full text

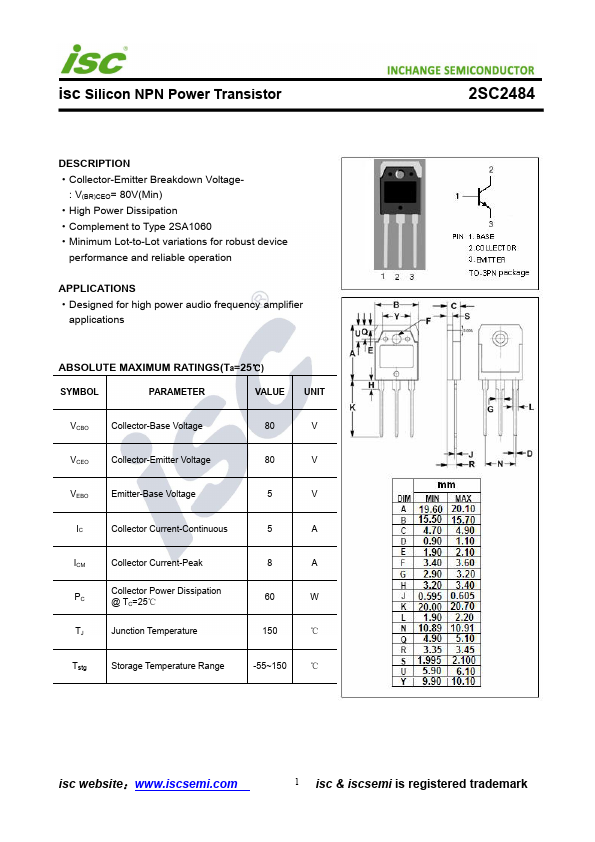

INCHANGE Semiconductor isc Silicon NPN Power Transistor isc Product Specification 2SC2484 DESCRIPTION ·Collector-Emitter Breakdown Voltage- : V(BR)CEO= 80V(Min) ·High Power Dissipation ·Complement to Type 2SA1060 APPLICATIONS ·Designed for high power audio frequency amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) i.cnSYMBOL PARAMETER VALUE UNIT .iscsemVCBO Collector-Base Voltage 80 V wwwVCEO Collector-Emitter Voltage 80 V VEBO Emitter-Base Voltage 5V IC Collector Current-Continuous 5 A ICM Collector Current-Peak PC Collector Power Dissipation @ TC=25℃ TJ Junction Temperature 8A 60 W 150 ℃ Tstg Storage Temperature Range -55~150 ℃ isc Website：www.iscsemi.cn http://www.Datasheet4U.

Published: Aug 4, 2016 |
