HT7K1211 - Peak Current 2.1A H-Bridge Driver

Description

The HT7K1211 is a 1-channel H-bridge driver with a maximum motor peak current of 2.1A.

Features

  • 1 Channel H-Bridge motor driver: low MOSFET On-resistance: 0.5Ω (HS+LS).
  • Wide VDD input voltage range of 1.8V to 6.0V.
  • Maximum motor power supply VM: Up to 7.5V.
  • Maximum 2.1A motor peak current.
  • Four operation modes: Forward, Reverse, Brake and Standby.
  • Low sleep current < 0.1μA.
  • Split controller and motor power supplies: VDD and VM.
  • Isolation Motor Current Sensing Pin: PGND.
  • Up to 200kHz PWM Input Control.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HT7005L LCD HYES Optoelectronics
HT7017 High-precision single-phase metering chip HiTrendtech
HT7020 three-port low voltage detector UMW
HT7022 three-port low voltage detector UMW
HT7024 three-port low voltage detector UMW

Other Datasheets by Holtek Semiconductor

Part Number Description
HT7K1201 Peak Current 1.3A H-Bridge Driver
HT7022A 2.2V Voltage Detector
HT7022A-1 Voltage Detector
HT7022A-2 Voltage Detector
HT7022A-3 Voltage Detector

Full PDF Text Transcription

Click to expand full text

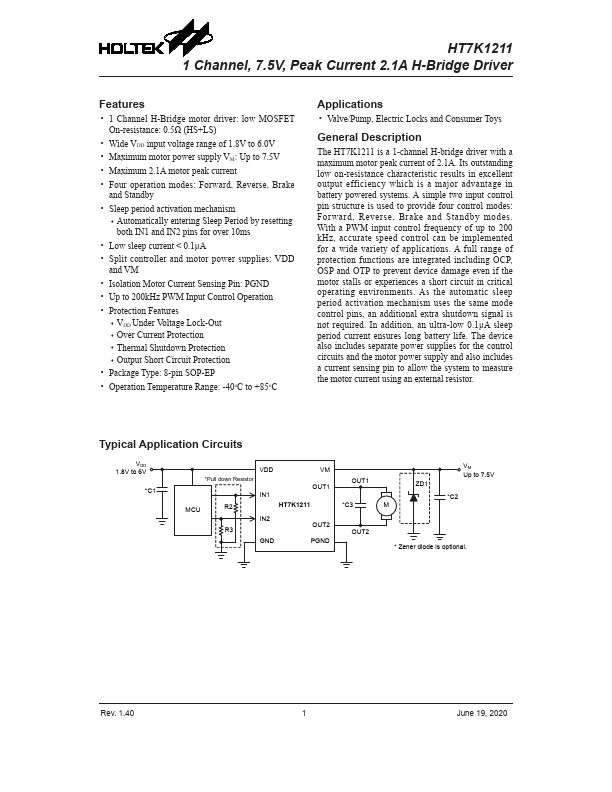

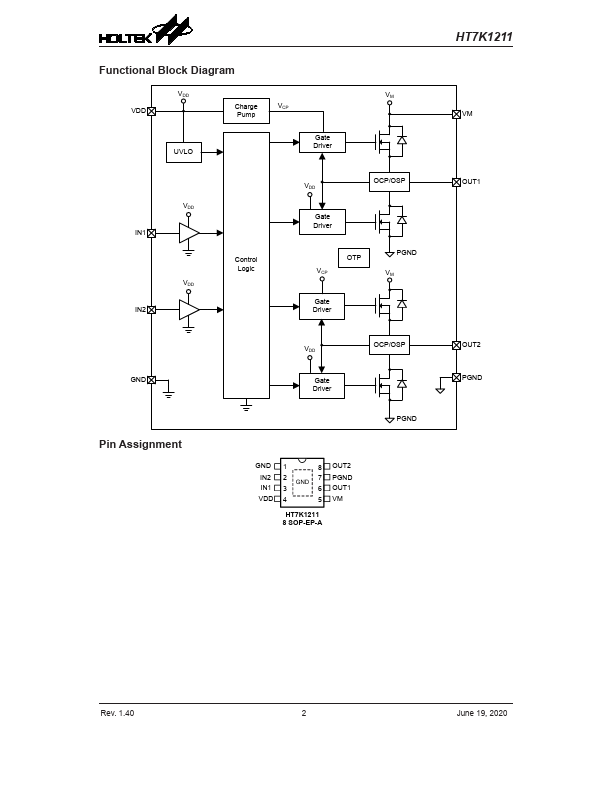

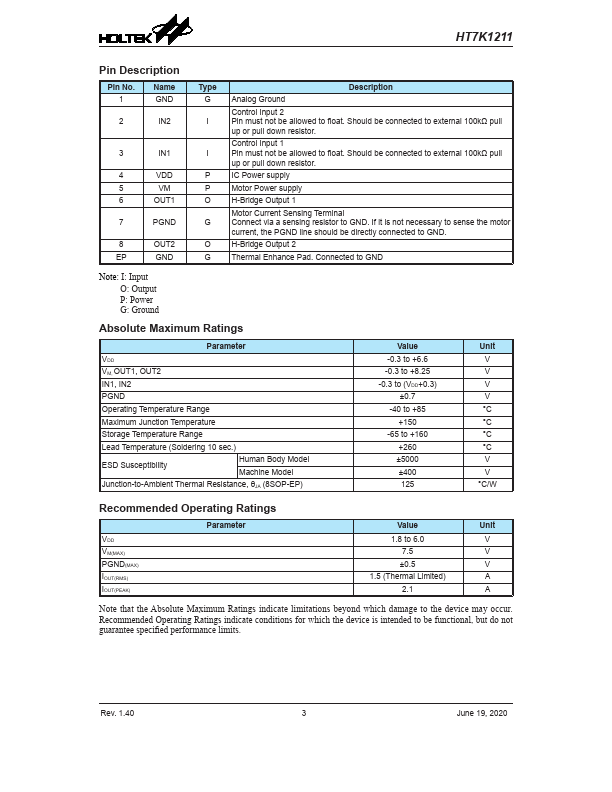

HT7K1211 1 Channel, 7.5V, Peak Current 2.1A H-Bridge Driver Features • 1 Channel H-Bridge motor driver: low MOSFET On-resistance: 0.5Ω (HS+LS) • Wide VDD input voltage range of 1.8V to 6.0V • Maximum motor power supply VM: Up to 7.5V • Maximum 2.1A motor peak current • Four operation modes: Forward, Reverse, Brake and Standby • Low sleep current < 0.
