HT7321-3 - 250mA TinyPower LDO

Description

The HT73xx-3 device series are low power high voltage regulators implemented in CMOS technology which have the advantages of low voltage drop and low quiescent current.

They allow input voltages as high as 30V.

They are available with several fixed output voltages ranging from 2.1V to 5.0V.

Features

  • Low power consumption.
  • Low voltage drop.
  • Low temperature coefficient.
  • High input voltage - up to 30V.
  • Output voltage accuracy: tolerance ±2%.
  • Over current protection.
  • TO-92, SOT89-3, and 8-pin SOP-EP packages.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HT7005L LCD HYES Optoelectronics
HT7017 High-precision single-phase metering chip HiTrendtech
HT7020 three-port low voltage detector UMW
HT7022 three-port low voltage detector UMW
HT7024 three-port low voltage detector UMW

Other Datasheets by Holtek Semiconductor

Part Number Description
HT7321-1 250mA TinyPower LDO
HT7321-2 30V 250mA TinyPower LDO
HT7321-7 30V 250mA TinyPower LDO
HT7323-1 250mA TinyPower LDO
HT7323-2 30V 250mA TinyPower LDO

Full PDF Text Transcription

Click to expand full text

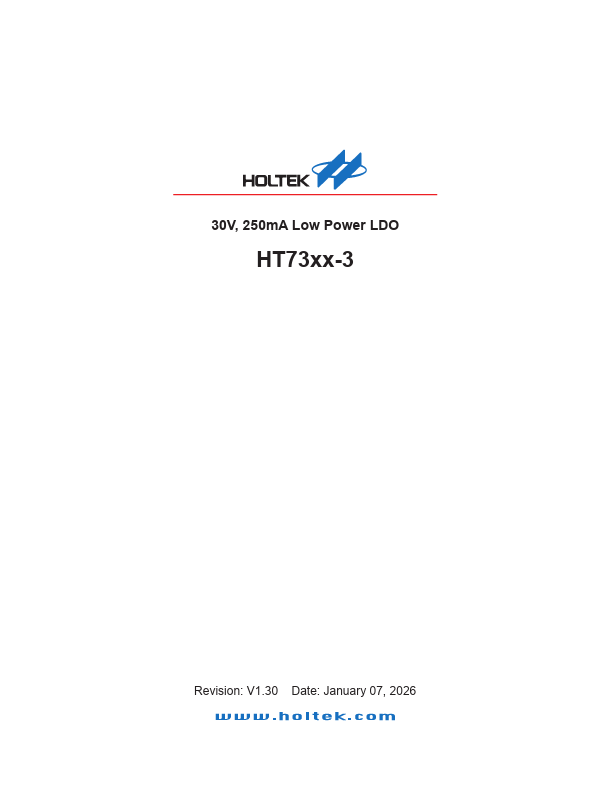

HT73xx-3 30V, 250mA TinyPowerTM LDO Features • Low power consumption • Low voltage drop • Low temperature coefficient • High input voltage - up to 30V • Output voltage accuracy: tolerance ±2% • Over current protection • TO-92, SOT89-3, and 8-pin SOP-EP packages Applications • Battery-powered equipment • Communication equipment • Audio/Video equipment General Description The HT73xx-3 device series are low power high voltage regulators implemented in CMOS technology which have the advantages of low voltage drop and low quiescent current. They allow input voltages as high as 30V. They are available with several fixed output voltages ranging from 2.1V to 5.0V. The softstart function inhibits the problem of output overshoot during power on.
