HT66F319

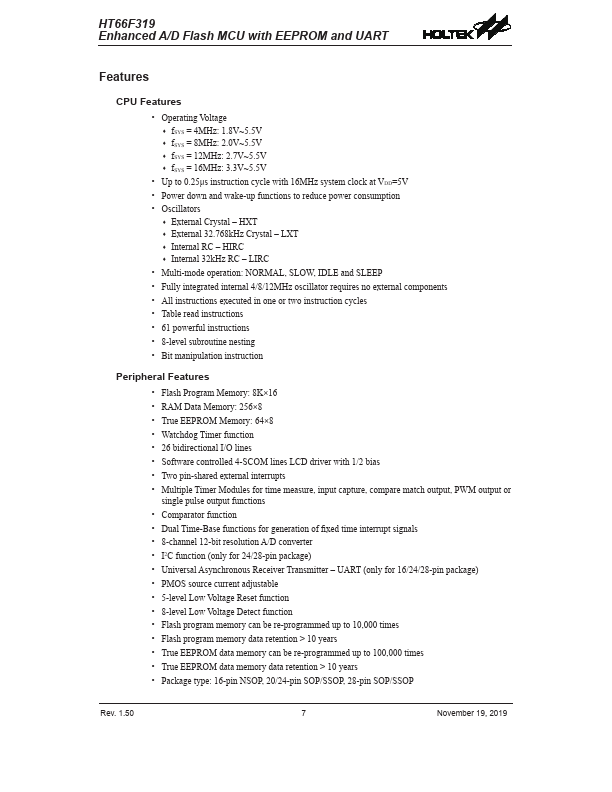

Features
CPU Features
- Operating Voltage
- f SYS = 4MHz: 1.8V~5.5V
- f SYS = 8MHz: 2.0V~5.5V
- f SYS = 12MHz: 2.7V~5.5V
- f SYS = 16MHz: 3.3V~5.5V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillators
- External Crystal
- HXT
- External 32.768k Hz Crystal
- LXT
- Internal RC
- HIRC
- Internal 32k Hz RC
- LIRC
- Multi-mode operation: NORMAL, SLOW, IDLE and SLEEP
- Fully integrated internal 4/8/12MHz oscillator requires no external ponents
- All instructions executed in one or two instruction cycles
- Table read instructions
- 61 powerful instructions
- 8-level subroutine nesting
- Bit manipulation instruction
Peripheral Features
- Flash Program Memory: 8K×16
- RAM Data Memory: 256×8
- True EEPROM Memory: 64×8
- Watchdog Timer function
- 26 bidirectional I/O lines
- Software controlled 4-S lines LCD driver with 1/2 bias
- Two pin-shared external interrupts
- Multiple Timer Modules for time measure,...
