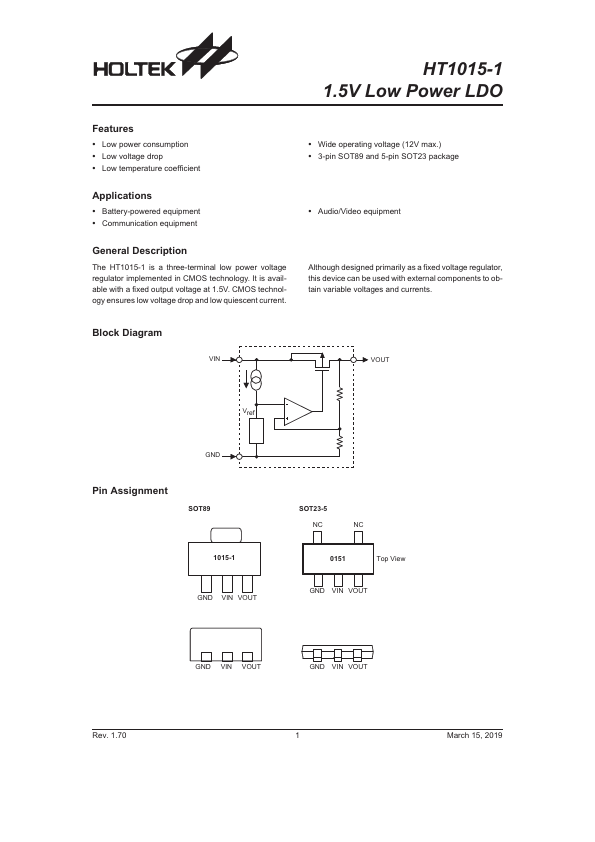

HT1015-1
Features
- Low power consumption
- Low voltage drop
- Low temperature coefficient
- Wide operating voltage (12V max.)
- 3-pin SOT89 and 5-pin SOT23 package
Applications
- Battery-powered equipment
- munication equipment
- Audio/Video equipment
General Description
The HT1015-1 is a three-terminal low power voltage regulator implemented in CMOS technology. It is available with a fixed output voltage at 1.5V. CMOS technology ensures low voltage drop and low quiescent current.
Although designed primarily as a fixed voltage regulator, this device can be used with external ponents to obtain variable voltages and currents.
Block Diagram
VOUT
Vref
Pin Assignment
S O T89
1 0 1 5 -1 G N D V IN V O U T
S O T 2 3 -5
T o p V ie w
G N D V IN V O U T
G N D V IN V O U T
G N D V IN V O U T
Rev. 1.70
March 15, 2019
Absolute Maximum Ratings
Supply Voltage VSS-0.3V to VSS+13V Operating Temperature...
