Datasheet Details
| Part number | HT7033A-1 |
|---|---|
| Manufacturer | Holtek Microelectronics |
| File Size | 380.62 KB |
| Description | (HT70xxA-1) Voltage Detector |
| Datasheet |

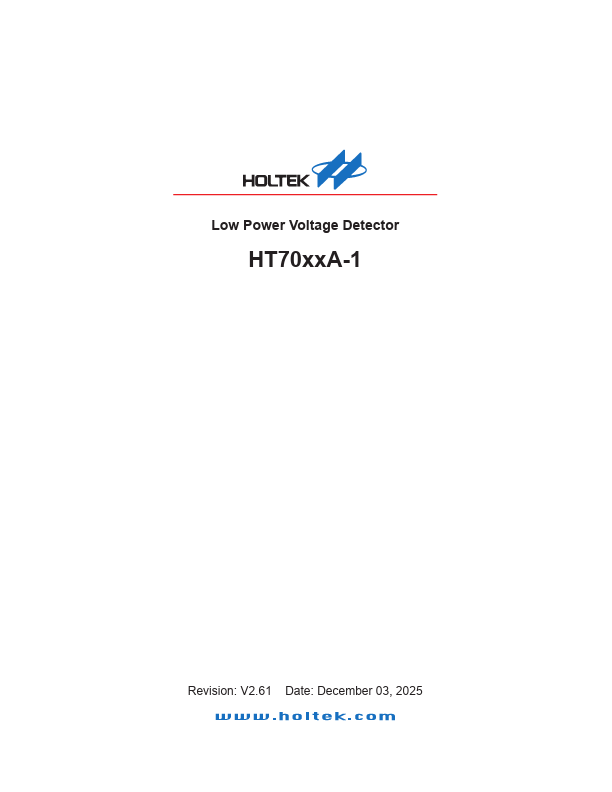

 HT7033A-1 Datasheet
|
|
|

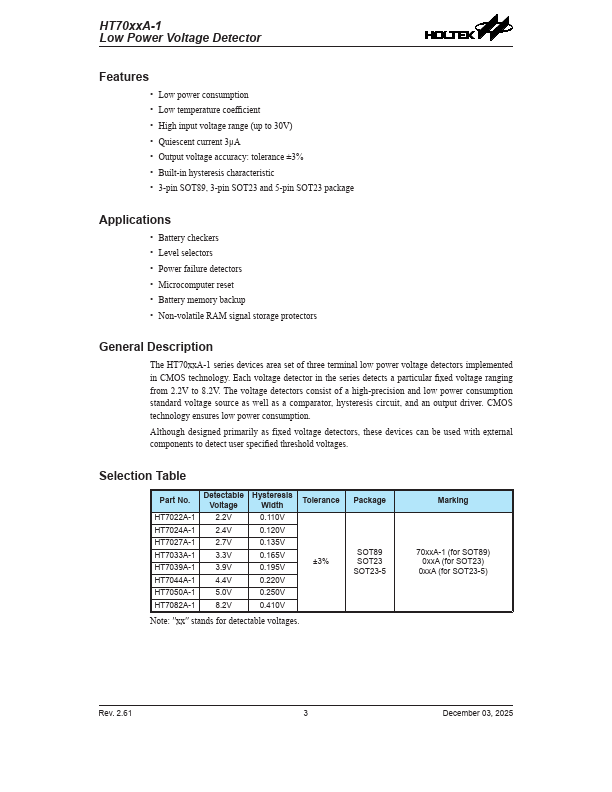

General Description
The HT70xxA-1 series devices area set of three terminal low power voltage detectors implemented in CMOS technology.
Each voltage detector in the series detects a particular fixed voltage ranging from 2.2V to 8.2V.
Key Features
- Low power consumption.
- Low temperature coefficient.
- High input voltage range (up to 30V).
- Quiescent current 3μA.
- Output voltage accuracy: tolerance ±3%.
- Built-in hysteresis characteristic.
- 3-pin TO92, 3-pin SOT89, 3-pin SOT23 and 5-pin SOT23 package.
