HK24C16 - Ultra Low Power EEPROM

General Description

The HK24C16 is 16,384 bits of serial Electrical Erasable and Programmable Read Only Memory, commonly known as EEPROM.

They are organized as 2048 words of 8 bits (1 byte) each.

Key Features

  • Low power consumption:.
  • Standby current : 10nA@Typical, Max.

📥 Download Datasheet

Datasheet Details

Part number HK24C16
Manufacturer Hang Shun chip technology
File Size 549.59 KB
Description Ultra Low Power EEPROM
Datasheet download datasheet HK24C16 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HK2125 MULTILAYER CHIP INDUCTOR Taiyo Yuden
HK23F SUBMINIATURE HIGH POWER RELAY HUI KE
HK23F-DC12V SUBMINIATURE HIGH POWER RELAY HUI KE
HK23F-DC24V SUBMINIATURE HIGH POWER RELAY HUI KE
HK23F-DC3V SUBMINIATURE HIGH POWER RELAY HUI KE

Other Datasheets by Hang Shun chip technology

Part Number Description
HK24C32 Two-Wire Serial EEPROM
HK24C64 Two-Wire Serial EEPROM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

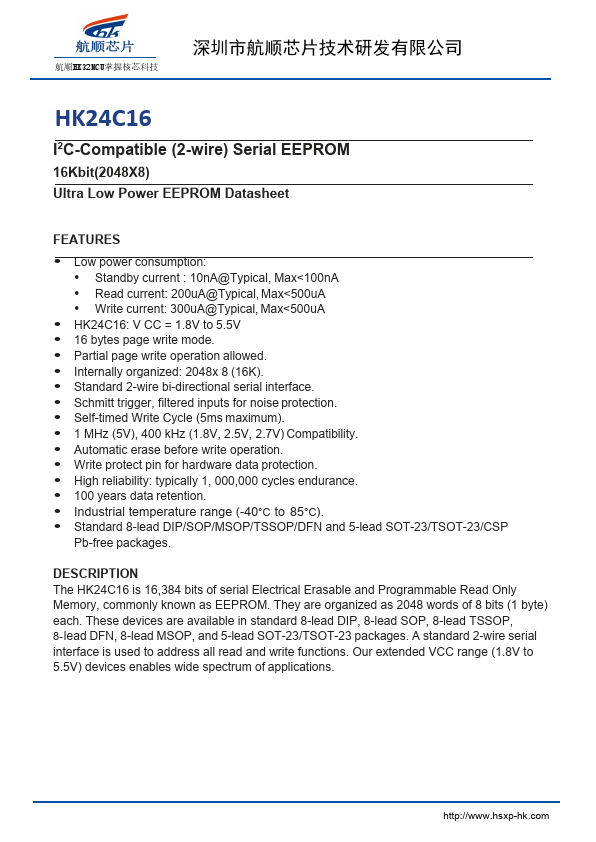

HK32MCU HK24C16 I2C-Compatible (2-wire) Serial EEPROM 16Kbit(2048X8) Ultra Low Power EEPROM Datasheet FEATURES  Low power consumption:  Standby current : 10nA@Typical, Max<100nA  Read current: 200uA@Typical, Max<500uA  Write current: 300uA@Typical, Max<500uA  HK24C16: V CC = 1.8V to 5.5V  16 bytes page write mode.  Partial page write operation allowed.  Internally organized: 2048x 8 (16K).  Standard 2-wire bi-directional serial interface.  Schmitt trigger, filtered inputs for noise protection.  Self-timed Write Cycle (5ms maximum).  1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V) Compatibility.  Automatic erase before write operation.  Write protect pin for hardware data protection.  High reliability: typically 1, 000,000 cycles endurance.  100 years data retention.
