LM358D - Dual Operational Amplifiers

Description

The LM358D consists of two independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages.

Features

  • Internally frequency compensated for unity gain.
  • Large DC voltage gain : 100dB.
  • Wide power supply range : 3V~32V(or±1.5V~16V).
  • Input common-mode voltage range includes ground.
  • Large output voltage swing : 0V DC to VCC-1.5V DC.
  • Power drain suitable for battery operation.
  • Moisture Sensitivity Level 3 LM358D SOP-8 PKG.

📥 Download Datasheet

Datasheet Details

Part number LM358D
Manufacturer HTC KOREA
File Size 470.11 KB
Description Dual Operational Amplifiers
Datasheet download datasheet LM358D Datasheet

📁 Similar Datasheet

  • LM358D - DUAL DIFFERENTIAL INPUT OPERATIONAL AMPLIFIERS (Motorola Inc)
  • LM358D - Low Power Dual Operational Amplifier (NXP)
  • LM358D - Single Supply Dual Operational Amplifiers (ON Semiconductor)
  • LM358D - Low-power dual operational amplifiers (STMicroelectronics)
  • LM358DT - Operational Amplifier (Rohm)
  • LM358DT - Low-power dual operational amplifiers (STMicroelectronics)
  • LM358 - Low-power dual operational amplifiers (STMicroelectronics)
  • LM358 - Dual Rail-to-Rail Output Operational Amplifier (SG Micro)
  • LM358 - Industry-Standard Dual Operational Amplifiers (Texas Instruments)
  • LM358 - LOW POWER DUAL OPERATIONAL AMPLIFIER (Diodes)
Other Datasheets by HTC
  • LM358GN - Dual Operational Amplfiers
  • LM358N - Dual Operational Amplfiers
  • LM317LD - 3-Terminal 100mA Positive Adjustable Regulator
  • LM317LF - 3-Terminal 100mA Positive Adjustable Regulator
  • LM317LTA - 3-Terminal 100mA Positive Adjustable Regulator
  • LM324 - Quad Operational Amplifiers
  • LM324GD - Quad Operational Amplifiers
  • LM324N - Quad Operational Amplifiers

Full PDF Text Transcription

Click to expand full text

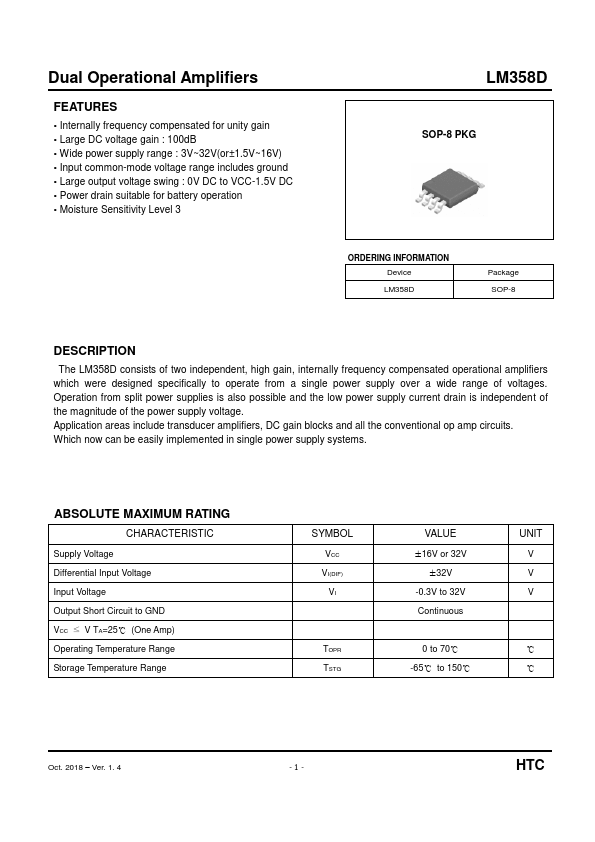

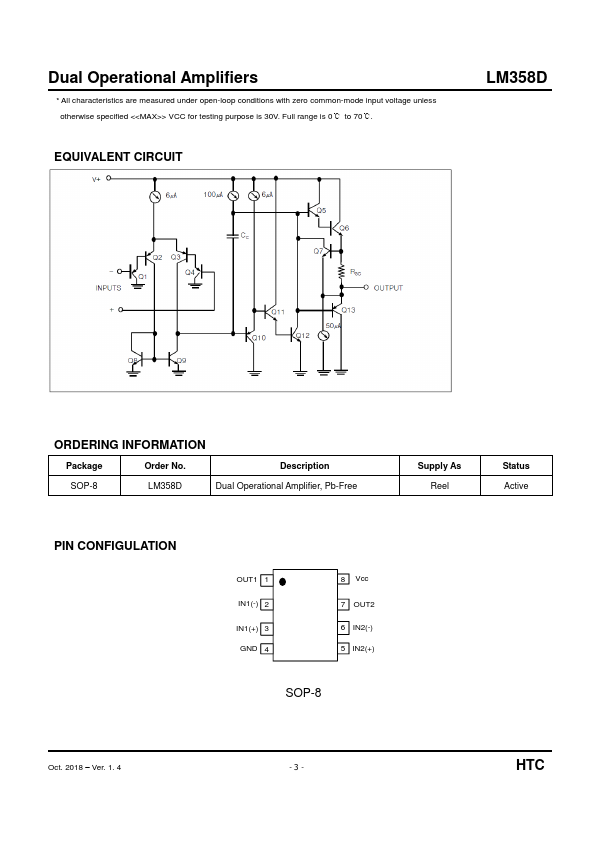

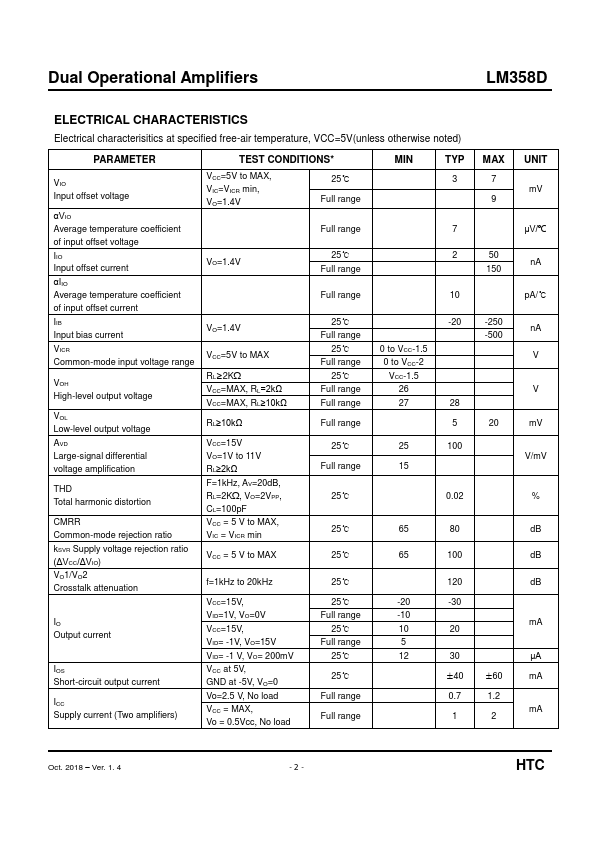

Dual Operational Amplifiers FEATURES • Internally frequency compensated for unity gain • Large DC voltage gain : 100dB • Wide power supply range : 3V~32V(or±1.5V~16V) • Input common-mode voltage range includes ground • Large output voltage swing : 0V DC to VCC-1.5V DC • Power drain suitable for battery operation • Moisture Sensitivity Level 3 LM358D SOP-8 PKG ORDERING INFORMATION Device LM358D Package SOP-8 DESCRIPTION The LM358D consists of two independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
