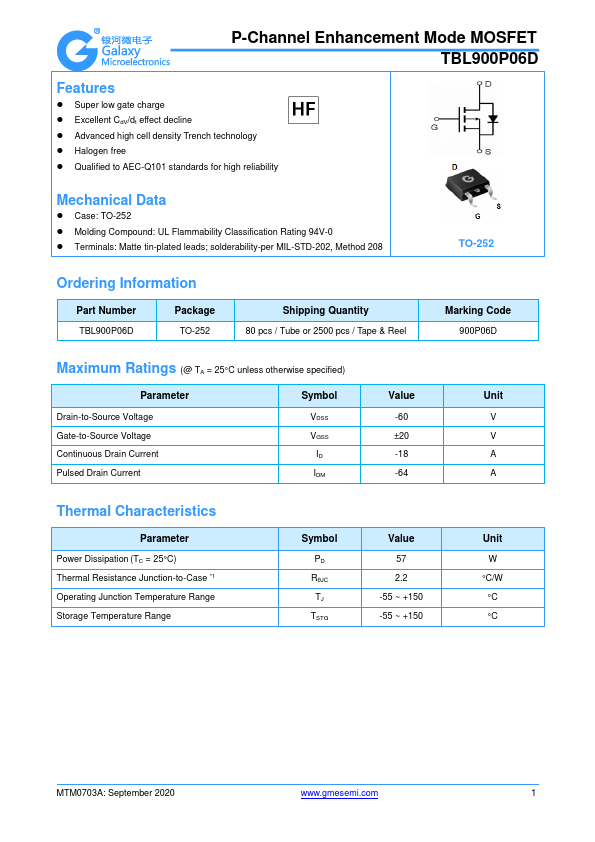

TBL900P06D
Features
- Super low gate charge
- Excellent Cd V/dt effect decline
- Advanced high cell density Trench technology
- Halogen free
- Qualified to AEC-Q101 standards for high reliability
Mechanical Data
- Case: TO-252
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208
TO-252
Ordering Information
Part Number TBL900P06D
Package TO-252
Shipping Quantity 80 pcs / Tube or 2500 pcs / Tape & Reel
Marking Code 900P06D
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current Pulsed Drain Current
Symbol VDSS VGSS ID IDM
Value -60 ±20 -18 -64
Unit V V A A
Thermal Characteristics
Parameter Power Dissipation (TC = 25°C) Thermal Resistance Junction-to-Case
- 1 Operating Junction Temperature Range Storage Temperature Range
Symbol PD RθJC TJ TSTG
Value 57 2.2
-55 ~ +150 -55 ~ +150
Unit W
°C/W °C °C
