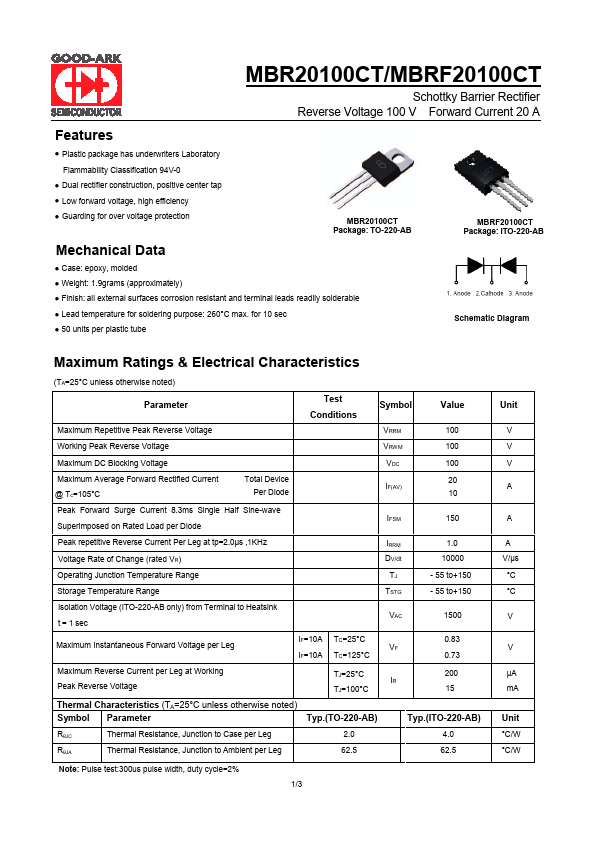

MBRF20100CT - Schottky Barrier Rectifier

Download the MBRF20100CT datasheet PDF. This datasheet also covers the MBRF20100CT-GOOD variant, as both devices belong to the same schottky barrier rectifier family and are provided as variant models within a single manufacturer datasheet.

General Description

1.

1.

Part Name : MBRF20100CT 2.

Key Features

  • Mechanical Characteristics 4. Maximum Ratings and Electrical Characteristics 5. Rating and characteristic Curves 6. Packing Specification.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MBRF20100CT-GOOD-ARK.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MBRF20100CT
Manufacturer GOOD-ARK
File Size 316.08 KB
Description Schottky Barrier Rectifier
Datasheet download datasheet MBRF20100CT Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MBRF20100CT 20A High Power Schottky Barrier Rectifiers CITC
MBRF20100CT SCHOTTKY BARRIER RECTIFIERS HY
MBRF20100CT SCHOTTKY BARRIER RECTIFIER LITE-ON
MBRF20100CT DUAL SCHOTTKY RECTIFIERS SEMTECH
MBRF20100CT SWITCHMODE Schottky Power Rectifirers Motorola

Other Datasheets by GOOD-ARK

Part Number Description
MBRF20150CT Schottky Barrier Rectifier
MBRF20200CT Schottky Barrier Rectifier
MBRF20200CT Schottky Barrier Rectifier
MBRF2060CTG Schottky Barrier Rectifier
MBRF10100CT Schottky Barrier Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

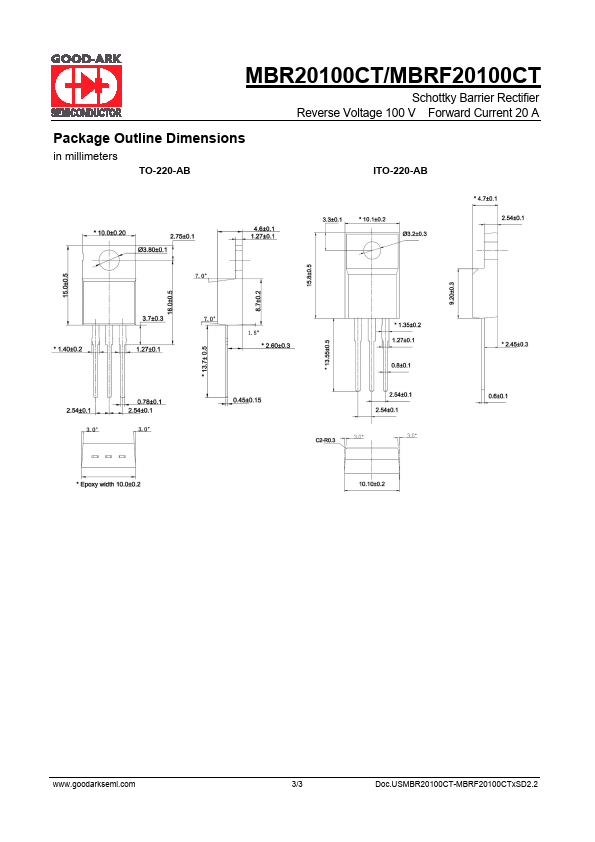

GOODARK Type MBRF20100CT SUZHOU GOOD-ARK ELECTRONIC CO., LTD Product Specification Construction : : Schottky Barrier Rectifier Application : For General Purpose （Manufacturer）: Suzhou Goodark Electronics Co.,Ltd Prepared on Sep. 17th, 2008 Prepared: R & D Department Approval：QRA Department SCHOTTKY BARRIER RECTIFIER 20 AMPERES 100 VOLTS CONTENTS 1. Package Outline 2. Marking 3. Features& Mechanical Characteristics 4. Maximum Ratings and Electrical Characteristics 5. Rating and characteristic Curves 6. Packing Specification PACKAGING SPECIFICATION 7. Description of Box Label 1/6 SUZHOU GOOD-ARK ELECTRONIC CO., LTD 1. Package Outline (TO220F) UNIT:mm Lead Frame Material : Copper Plating: Pure Tin Plating 2/6 2.MARKING SUZHOU GOOD-ARK ELECTRONIC CO., LTD 1.
