BAV99DW - Switching Diode

Download the BAV99DW datasheet PDF. This datasheet also covers the BAV99DW-GOOD variant, as both devices belong to the same switching diode family and are provided as variant models within a single manufacturer datasheet.

Description

of changes First issue www.goodark.com 3 Doc.No.643141 BAV99DW GOOD-ARK Electronics Disclaimers These materials are intended as a reference to assist our customers in the selection of the Suzhou Good-Ark product best suited to the customer’s application; they do not convey any license under any

Features

  • Fast Switching Speed.
  • For General Purpose Switching.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BAV99DW-GOOD-ARK.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number BAV99DW
Manufacturer GOOD-ARK
File Size 1.02 MB
Description Switching Diode
Datasheet download datasheet BAV99DW Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BAV99DW SMD Switching Diode Array Formosa MS
BAV99DW SURFACE MOUNT FAST SWITCHING DIODE WON-TOP
BAV99DW Plastic-Encapsulate Diode MCC
BAV99DW Surface Mount Switching Diode Array SeCoS
BAV99DW Surface Mount Fast Switching Diodes LGE

Other Datasheets by GOOD-ARK

Part Number Description
BAV99 Switching Diode
BAV100 Fast Switching Diode
BAV101 Fast Switching Diode
BAV102 Fast Switching Diode
BAV103 Fast Switching Diode

Full PDF Text Transcription

Click to expand full text

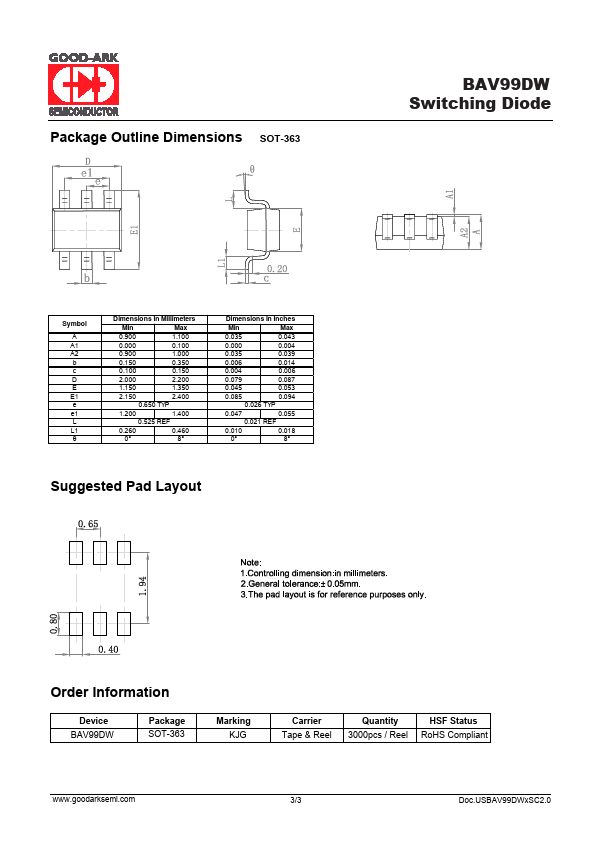

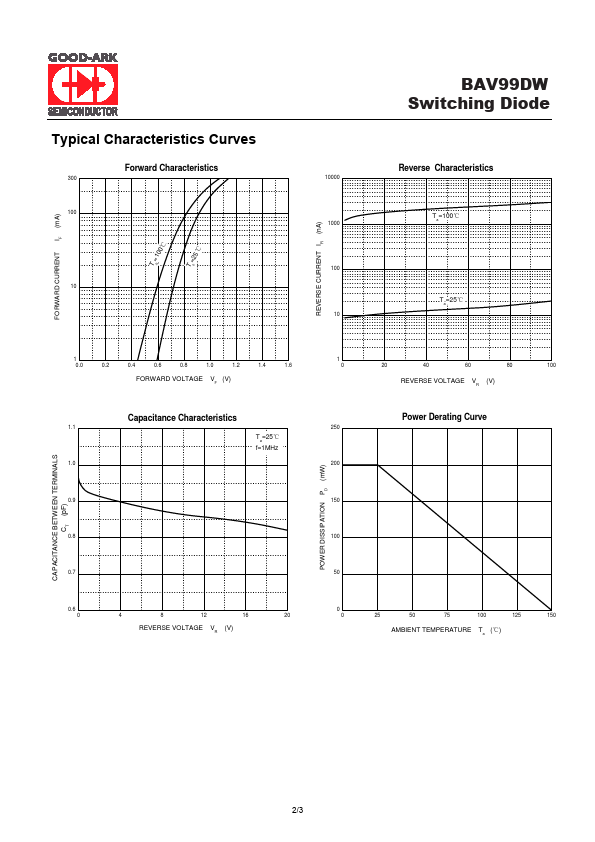

BAV99DW GOOD-ARK Electronics 300mA,75V Switching Diode Array Features ● Fast Switching Speed ● For General Purpose Switching Applications ● Halogen-free、RoHS Compliant ● Ultra-Small Surface Mount Package Mechanical Data ● SOT-363 Package Type：SOT-363 ● Epoxy UL: 94V-0 ● Mounting Position: Any Pb RoHS COMPLIANT Marking: KJG SOT-363 Pin definitiSoOnTSO-22T33- Epuivalent circuit Maximum Ratings & Electrical Characteristics(TA=25℃ unless otherwise noted) Parameter Symbol Value DC Blocking Voltage VR Working Peak Reverse Voltage V RWM 75 Repetitive Peak Reverse Voltage VRRM Non-repetitive pak frward crrent IFM 300 Power Dissipation Average Rectified Current Non-Repetitive Peak Forward Surge Current @ t=8.
