TGSC2D20120B - SiC Schottky Barrier Diode

Features

  • Low conduction loss due to low VF.
  • Extremely low switching loss by tiny QC.
  • Highly rugged due to better surge current.
  • Industrial standard quality and reliability.
  • RoHS compliant with Halogen-free.
  • Qualified to AEC-Q101 Standards.

📥 Download Datasheet

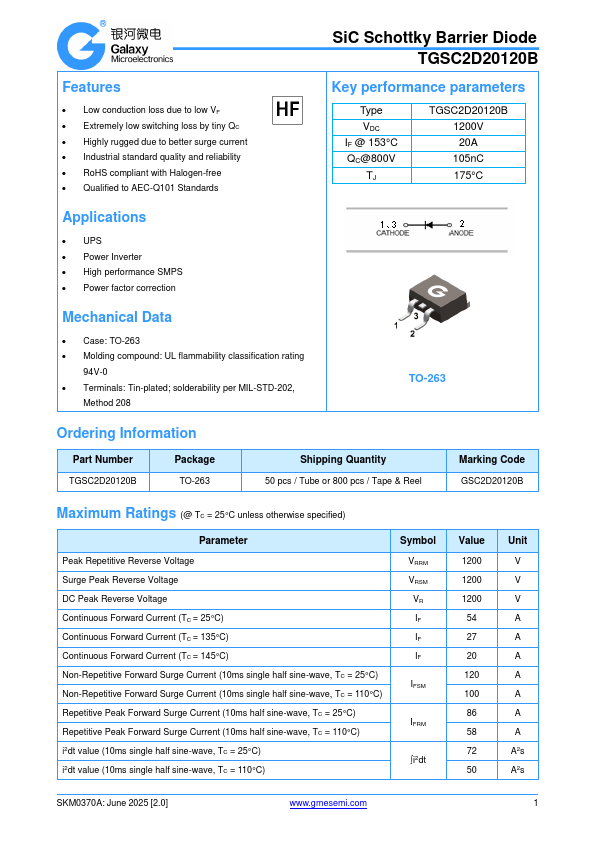

Datasheet preview – TGSC2D20120B

📁 Similar Datasheet

  • TGS-2602 - Gas Sense (Figaro)
  • TGS-2602-A00 - Gas Sense (Figaro)
  • TGS-2602-B00 - Gas Sense (Figaro)
  • TGS-813 - Detection of Combustible Gases (Figaro)
  • TGS203 - Carbon Monoxide Sensor (ETC)
  • TGS2180 - water vapor detection (Figaro)
  • TGS2201 - Dual Sensor Element (Figaro)
  • TGS2302 - VPIN SPDT Switch (TriQuint Semiconductor)
  • TGS2303 - SP3T VPIN (TriQuint Semiconductor)
  • TGS2304 - DC- 20 GHz SP4T PIN Switch (TriQuint Semiconductor)
Other Datasheets by GME

    Full PDF Text Transcription

    Click to expand full text
    Features  Low conduction loss due to low VF  Extremely low switching loss by tiny QC  Highly rugged due to better surge current  Industrial standard quality and reliability  RoHS compliant with Halogen-free  Qualified to AEC-Q101 Standards Applications  UPS  Power Inverter  High performance SMPS  Power factor correction Mechanical Data  Case: TO-263  Molding compound: UL flammability classification rating 94V-0  Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 SiC Schottky Barrier Diode TGSC2D20120B Key performance parameters Type VDC IF @ 153°C QC@800V TJ TGSC2D20120B 1200V 20A 105nC 175°C TO-263 Ordering Information Part Number TGSC2D20120B Package TO-263 Shipping Quantity 50 pcs / Tube or 800 pcs / Tape & Reel Marking Code GSC2D20120B Maximum Rati
