TBC807-40 - PNP Silicon Epitaxial Planar Transistor

Download the TBC807-40 datasheet PDF. This datasheet also covers the TBC807-16 variant, as both devices belong to the same pnp silicon epitaxial planar transistor family and are provided as variant models within a single manufacturer datasheet.

Features

  • Epitaxial planar die construction.
  • Complimentary to TBC817.
  • High collector current.
  • High current gain.
  • Low collector-emitter saturation voltage.
  • RoHS compliant with Halogen-free.
  • Qualified to AEC-Q101 Standards Mechanical Data.
  • Case: SOT-23.
  • Molding compound: UL flammability classification rating 94V-0.
  • Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 SOT-23 Ordering Information Part Number TBC807-16 TBC807-25 TBC807-40 Pack.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TBC807-16-GME.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
TBC-DS Hall Current Sensor Token Electronics
TBC06DS Hall Current Sensor Token Electronics
TBC0747 DUAL OPERATIONAL AMPLIFIER Siemens
TBC0748 Operational Amplifier Siemens
TBC1458 DUAL OPERATIONAL AMPLIFIER Siemens

Other Datasheets by Galaxy Microelectronics

Part Number Description
TBC807-16 PNP Silicon Epitaxial Planar Transistor
TBC807-25 PNP Silicon Epitaxial Planar Transistor

Full PDF Text Transcription

Click to expand full text

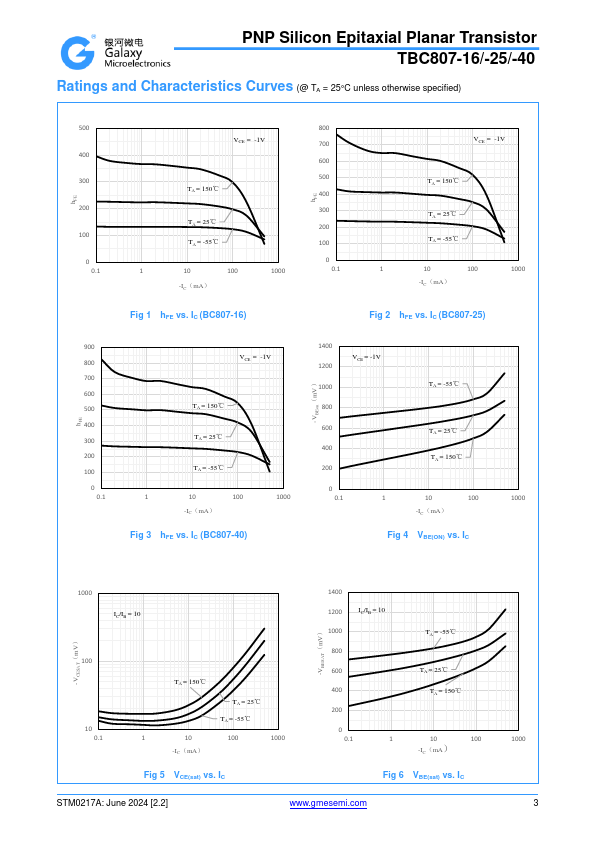

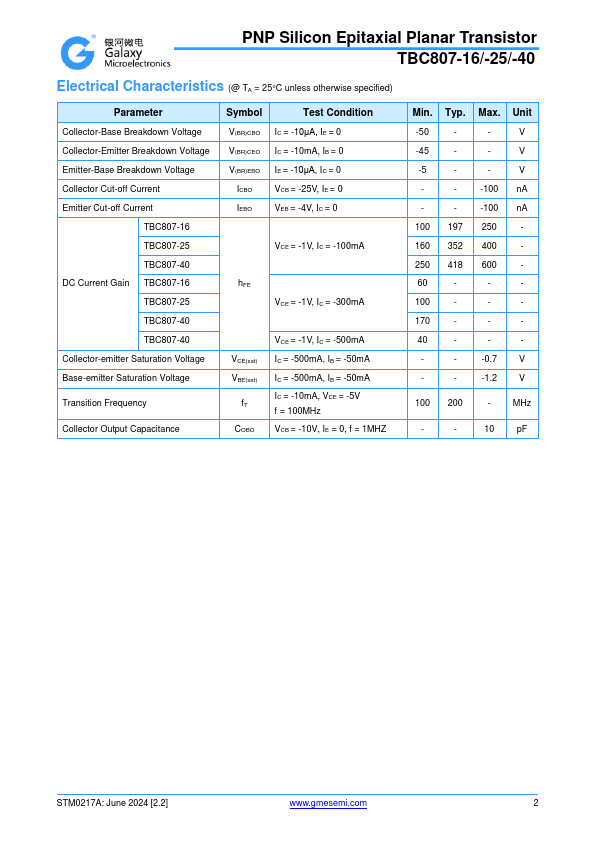

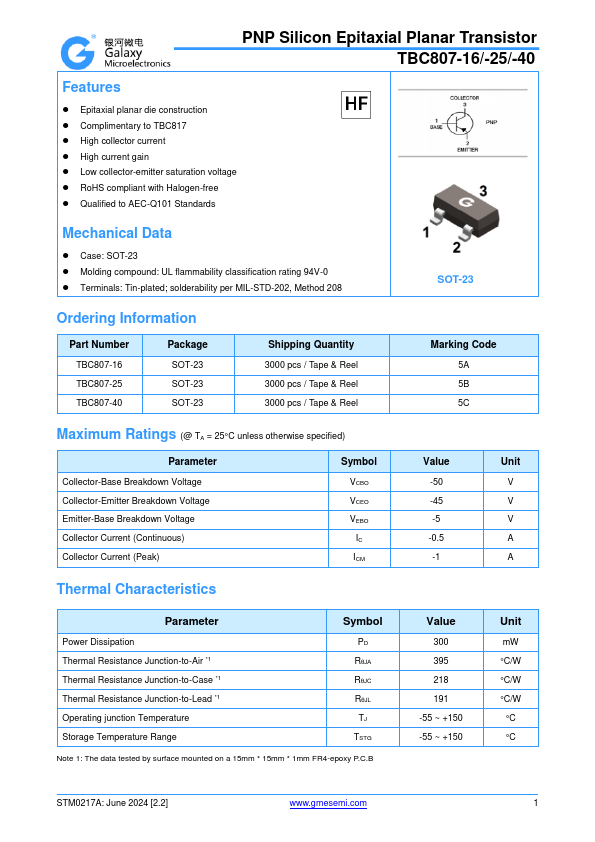

PNP Silicon Epitaxial Planar Transistor TBC807-16/-25/-40 Features  Epitaxial planar die construction  Complimentary to TBC817  High collector current  High current gain  Low collector-emitter saturation voltage  RoHS compliant with Halogen-free  Qualified to AEC-Q101 Standards Mechanical Data  Case: SOT-23  Molding compound: UL flammability classification rating 94V-0  Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 SOT-23 Ordering Information Part Number TBC807-16 TBC807-25 TBC807-40 Package SOT-23 SOT-23 SOT-23 Shipping Quantity 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel Marking Code 5A 5B 5C Maximum Ratings (@ TA = 25°C unless otherwise specified) Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage
