G1N4148W - Switching Diode

Features

  • Fast switching speed.
  • High conductance.
  • For general purpose switching.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
G1NP02 N and P Channel Enhancement Mode Power MOSFET GOFORD
G1NP02ELL N and P Channel Enhancement Mode Power MOSFET GOFORD

Other Datasheets by Galaxy Microelectronics

Part Number Description
G1N4148WS Switching Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

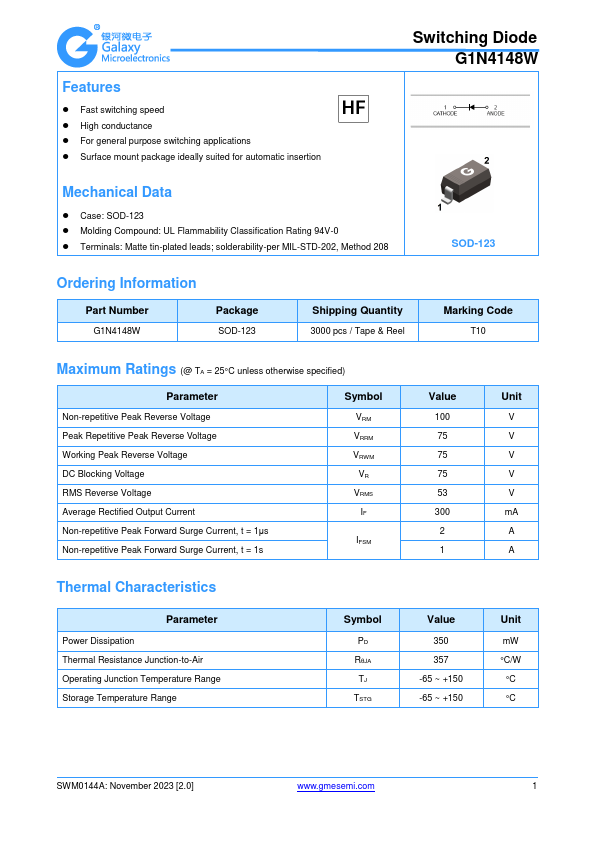

Features  Fast switching speed  High conductance  For general purpose switching applications  Surface mount package ideally suited for automatic insertion Switching Diode G1N4148W Mechanical Data  Case: SOD-123  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOD-123 Ordering Information Part Number G1N4148W Package SOD-123 Shipping Quantity 3000 pcs / Tape & Reel Marking Code T10 Maximum Ratings (@ TA = 25°C unless otherwise specified) Parameter Non-repetitive Peak Reverse Voltage Peak Repetitive Peak Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current Non-repetitive Peak Forward Surge Current, t = 1μs Non-repetitive
