FZT851 - NPN Silicon Epitaxial Planar Transistor

Key Features

  • Epitaxial planar die construction.
  • High continuous collector current.
  • Low saturation voltage VCE(SAT) NPN Silicon Epitaxial Planar Transistor FZT851 Mechanical Data.
  • Case: SOT-223.
  • Molding Compound: UL Flammability Classification Rating 94V-0.
  • Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOT-223 Ordering Information Part Number FZT851 Package SOT-223 Shipping Quantity 4000 pcs / Tape & Reel Marking Code FZT851 Maximum Rating.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FZT851 60V NPN MEDIUM POWER TRANSISTOR Diodes
FZT853 100V NPN MEDIUM POWER TRANSISTOR Diodes
FZT853 NPN Transistors Kexin
FZT855 150V NPN MEDIUM POWER TRANSISTOR Diodes
FZT857 300V NPN MEDIUM POWER TRANSISTOR Diodes

Other Datasheets by Galaxy Microelectronics

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

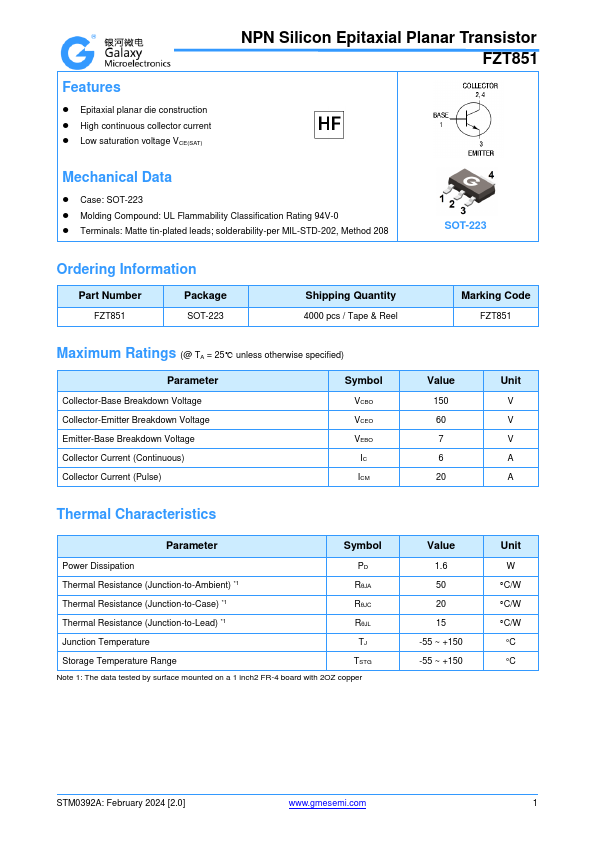

Features  Epitaxial planar die construction  High continuous collector current  Low saturation voltage VCE(SAT) NPN Silicon Epitaxial Planar Transistor FZT851 Mechanical Data  Case: SOT-223  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOT-223 Ordering Information Part Number FZT851 Package SOT-223 Shipping Quantity 4000 pcs / Tape & Reel Marking Code FZT851 Maximum Ratings (@ TA = 25℃ unless otherwise specified) Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Current (Continuous) Collector Current (Pulse) Symbol VCBO VCEO VEBO IC ICM Value 150 60 7 6 20 Unit V V V A A Thermal Characteristics Parameter S
