BZG05C51 - Zener Diodes

Download the BZG05C51 datasheet PDF. This datasheet also covers the BZG05C3V3 variant, as both devices belong to the same zener diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • High reliability.
  • Voltage range 3.3 V to 100 V.
  • Fits onto 5 mm SMD footpads.
  • RoHS compliant with Halogen-free Mechanical Data.
  • Case: SMA molded plastic.
  • Molding compound, UL flammability classification rating 94V-0.
  • Terminals: Solder plated, solderable per MIL- STD-202,Method 208.
  • Polarity: Color band denotes cathode end Absolute Maximum Ratings (@TA = 25°C unless otherwise specified) Parameter Test condition Power dissipation Non repetitive peak surge.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BZG05C3V3-GME.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
BZG05C51 SURFACE MOUNT SILICON ZENER DIODES SunMate
BZG05C51 Zener Diodes Vishay
BZG05C51 ZENER DIODES EIC
BZG05C51-M Zener Diode Vishay
BZG05C56 SURFACE MOUNT SILICON ZENER DIODES SunMate

Other Datasheets by Galaxy Microelectronics

Part Number Description
BZG05C56 Zener Diodes
BZG05C5V1 Zener Diodes
BZG05C5V6 Zener Diodes
BZG05C10 Zener Diodes
BZG05C100 Zener Diodes

Full PDF Text Transcription

Click to expand full text

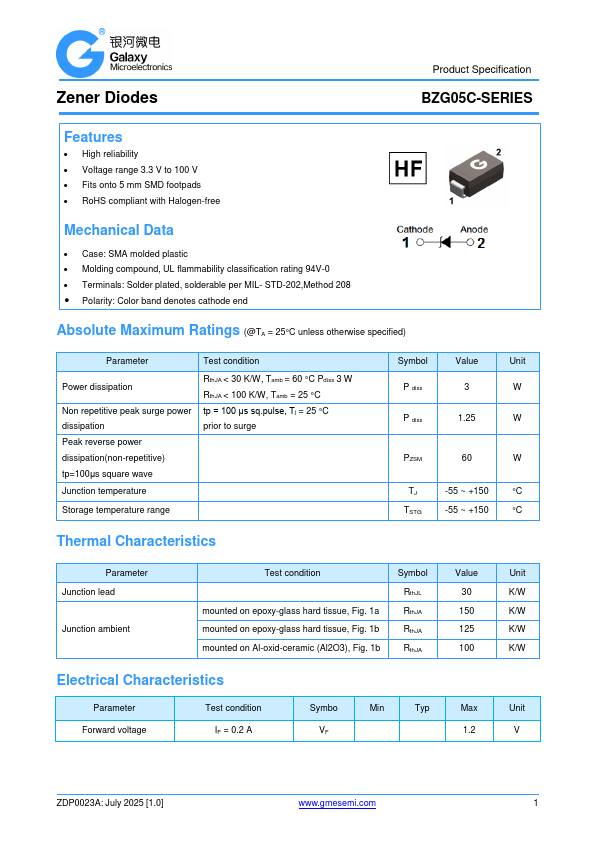

Zener Diodes Product Specification BZG05C-SERIES Features  High reliability  Voltage range 3.3 V to 100 V  Fits onto 5 mm SMD footpads  RoHS compliant with Halogen-free Mechanical Data  Case: SMA molded plastic  Molding compound, UL flammability classification rating 94V-0  Terminals: Solder plated, solderable per MIL- STD-202,Method 208  Polarity: Color band denotes cathode end Absolute Maximum Ratings (@TA = 25°C unless otherwise specified) Parameter Test condition Power dissipation Non repetitive peak surge power dissipation Peak reverse power dissipation(non-repetitive) tp=100μs square wave RthJA < 30 K/W, Tamb = 60 °C Pdiss 3 W RthJA < 100 K/W, Tamb = 25 °C tp = 100 μs sq.
