BL3415-3L - P-Channel Enhancement Mode MOSFET

This page provides the datasheet information for the BL3415-3L, a member of the BL3415 P-Channel Enhancement Mode MOSFET family.

Features

  • High-speed switching.
  • Drive circuits can be simple.
  • Parallel use is easy.
  • HBM: JESD22-A114-B: 1A P-Channel Enhancement Mode MOSFET BL3415 BL3415-3L Typical.

📥 Download Datasheet

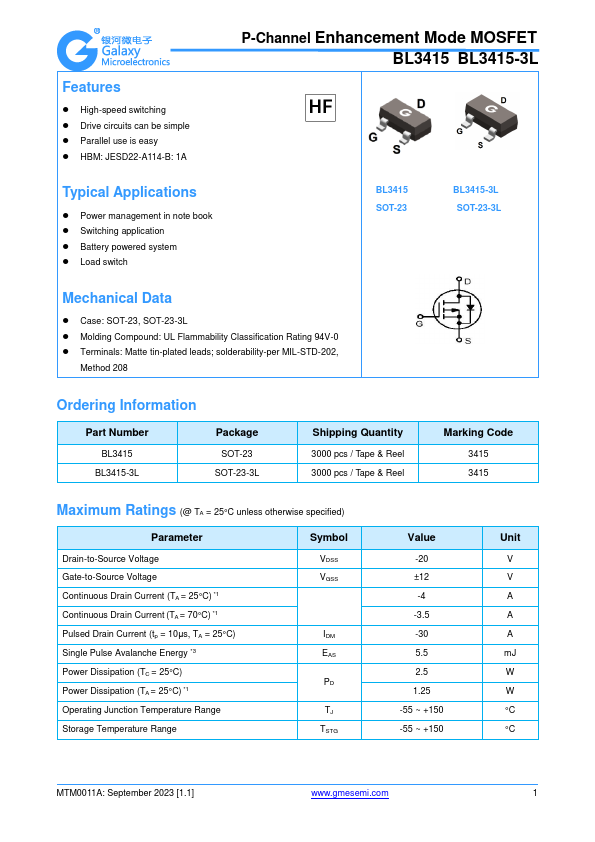

Datasheet preview – BL3415-3L

Datasheet Details

Part number BL3415-3L
Manufacturer Galaxy Microelectronics
File Size 773.01 KB
Description P-Channel Enhancement Mode MOSFET
Datasheet download datasheet BL3415-3L Datasheet

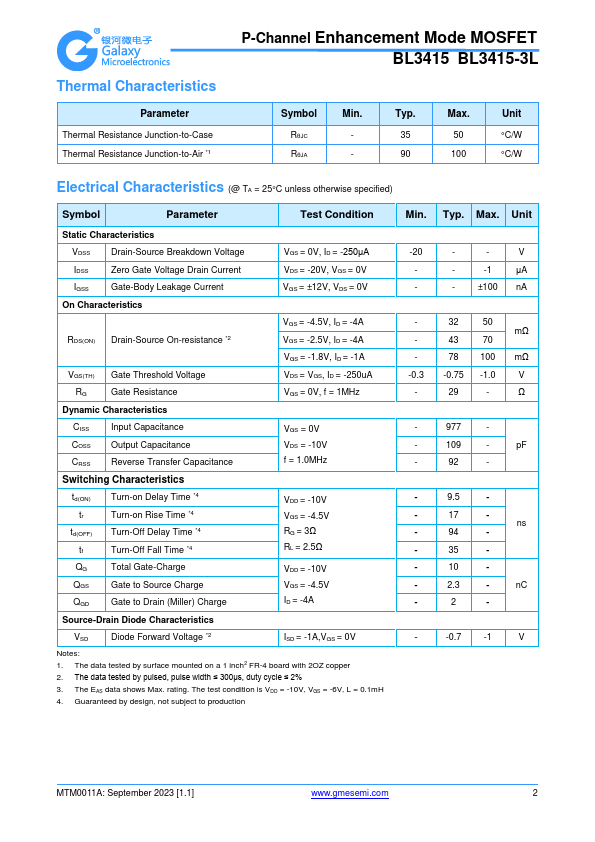

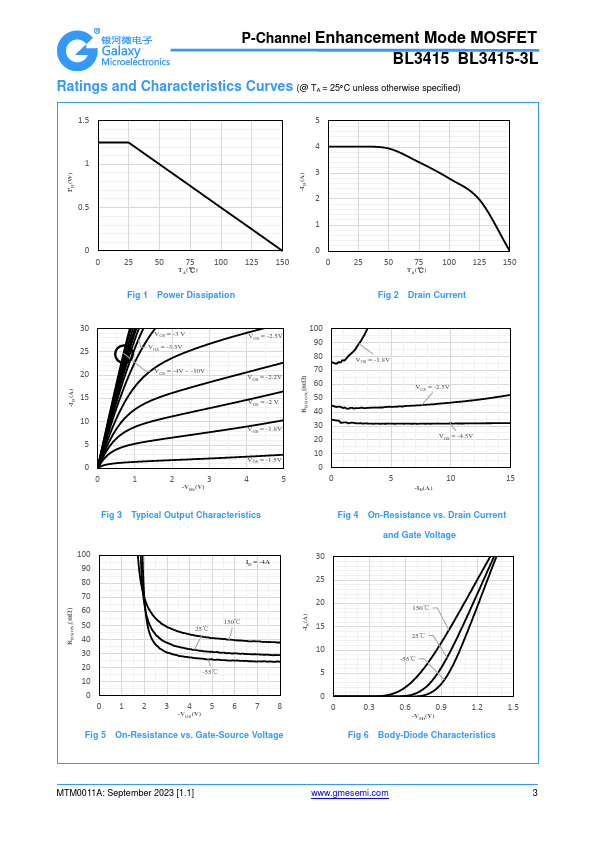

Additional preview pages of the BL3415-3L datasheet.

📁 Similar Datasheet

  • BL34118 - Voice Switched Speakerphone (SHANGHAI BELLING)
  • BL34119 - Telephone low voltage audio amplifier circuit (SHANGHAI BELLING)
  • BL34018 - high quality hands free speakerphone system (SHANGHAI BELLING)
  • BL3406B - 800mA Synchronous Buck Converter (SHANGHAI BELLING)
  • BL3085A - RS-485 Transceivers (BELLING)
  • BL3085B - RS-485 Transceivers (BELLING)
  • BL3085E - High-speed transceiver (BELLING)
  • BL3090 - RS-485/RS-422 Transceivers (BELLING)
  • BL3102 - COMS Clock Generator/Driver (SHANGHAI BELLING)
  • BL317 - HIGH CURRENT ADJUSTABLE VOLTAGE REGULATOR (BELLING)
Other Datasheets by GME
  • BL3415 - P-Channel Enhancement Mode MOSFET
  • BL3400 - N-Channel Power Mosfet
  • BL3401 - P-Channel High Density Trench MOSDET
  • BL3401L - P-Channel MOSDET
  • BL3402 - N-Channel Power Mosfet
  • BL3404 - N-Channel Power Mosfet
  • BL3407 - P-Channel Power Mosfet
  • BL3428W - N-Channel Enhancement Mode MOSFET

Full PDF Text Transcription

Click to expand full text
Features  High-speed switching  Drive circuits can be simple  Parallel use is easy  HBM: JESD22-A114-B: 1A P-Channel Enhancement Mode MOSFET BL3415 BL3415-3L Typical Applications  Power management in note book  Switching application  Battery powered system  Load switch BL3415 SOT-23 BL3415-3L SOT-23-3L Mechanical Data  Case: SOT-23, SOT-23-3L  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 Ordering Information Part Number BL3415 BL3415-3L Package SOT-23 SOT-23-3L Shipping Quantity 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel Marking Code 3415 3415 Maximum Ratings (@ TA = 25°C unless otherwise specified) Parameter Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drai
