BC847AW Datasheet NPN Small Signal Surface Mount Transistor

Manufacturer: Galaxy Microelectronics

Download the BC847AW datasheet PDF. This datasheet also includes the BC846W variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

BC847AW npn small signal surface mount transistor by Galaxy Microelectronics - Datasheet Preview — Note: The manufacturer provides a single datasheet file (BC846W-GME.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	BC847AW
Manufacturer	Galaxy Microelectronics
File Size	311.56 KB
Description	NPN Small Signal Surface Mount Transistor
Download	BC847AW Download (PDF)

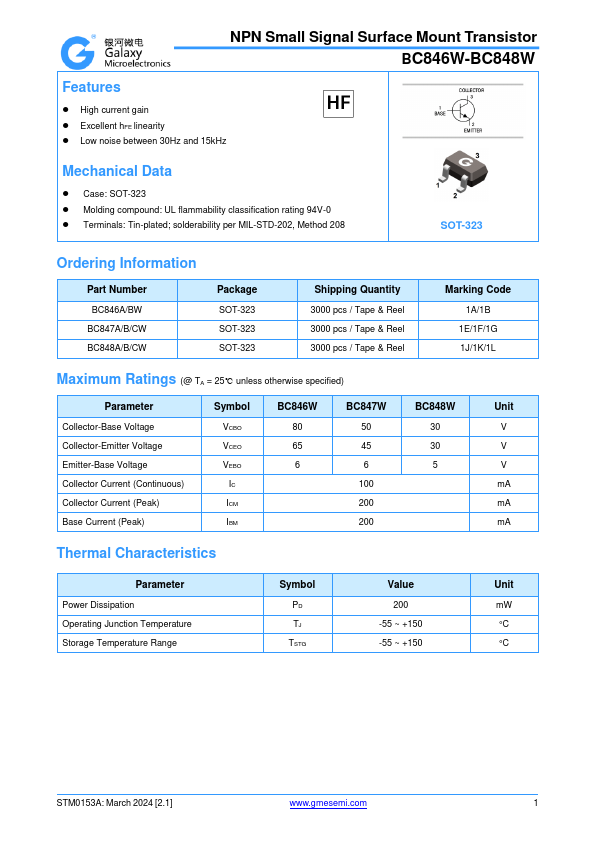

Overview

NPN Small Signal Surface Mount Transistor BC846W-BC848W.

Key Features

High current gain.
Excellent hFE linearity.
Low noise between 30Hz and 15kHz Mechanical Data.
Case: SOT-323.
Molding compound: UL flammability classification rating 94V-0.
Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 SOT-323 Ordering Information Part Number BC846A/BW BC847A/B/CW BC848A/B/CW Package SOT-323 SOT-323 SOT-323 Shipping Quantity 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel Marking Code 1A/1B 1E/1F/1G 1J/1.
