2SB1124 - PNP Epitaxial Planar Silicon Transistors

Key Features

  • Fast switching speed.
  • Low collector-to-emitter saturation voltage.
  • Large current capacity and wide ASO.
  • RoHS compliant with Halogen-free Product Specification 2SB1124.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB1124 PNP Transistor Sanyo Semicon Device
2SB1124 PNP Epitaxial Planar Silicon Transistors Kexin
2SB1124 Bipolar Transistor ON Semiconductor
2SB1124 PNP EPITAXIAL PLANAR SILICON TRANSISTOR AiT Semiconductor
2SB1120 PNP Transistor Sanyo Semicon Device

Other Datasheets by Galaxy Microelectronics

Part Number Description
2SB1119 PNP Epitaxial Planar Silicon Transistors
2SB1132 PNP Silicon Epitaxial Planar Transistor
2SB1182 Medium Power Transistor
2SB1184 PNP Silicon Epitaxial Planar Transistor
2SB1185 Power Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

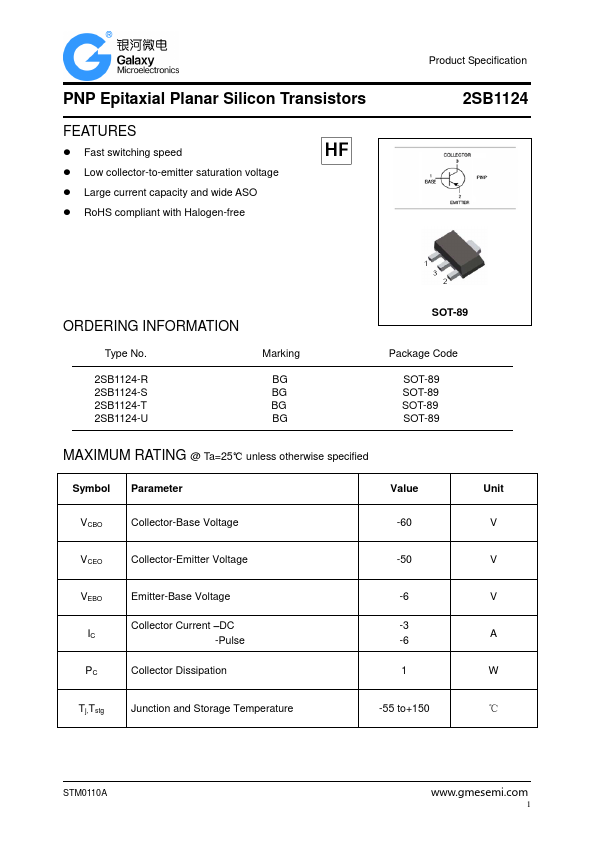

PNP Epitaxial Planar Silicon Transistors FEATURES  Fast switching speed  Low collector-to-emitter saturation voltage  Large current capacity and wide ASO  RoHS compliant with Halogen-free Product Specification 2SB1124 ORDERING INFORMATION Type No. 2SB1124-R 2SB1124-S 2SB1124-T 2SB1124-U Marking BG BG BG BG SOT-89 Package Code SOT-89 SOT-89 SOT-89 SOT-89 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value Unit VCBO Collector-Base Voltage -60 V VCEO Collector-Emitter Voltage -50 V VEBO IC PC Emitter-Base Voltage Collector Current –DC -Pulse Collector Dissipation -6 V -3 A -6 1 W Tj,Tstg Junction and Storage Temperature -55 to+150 ℃ STM0110A www.gmesemi.
