2SA1012 - PNP Epitaxial Silicon Transistor

Key Features

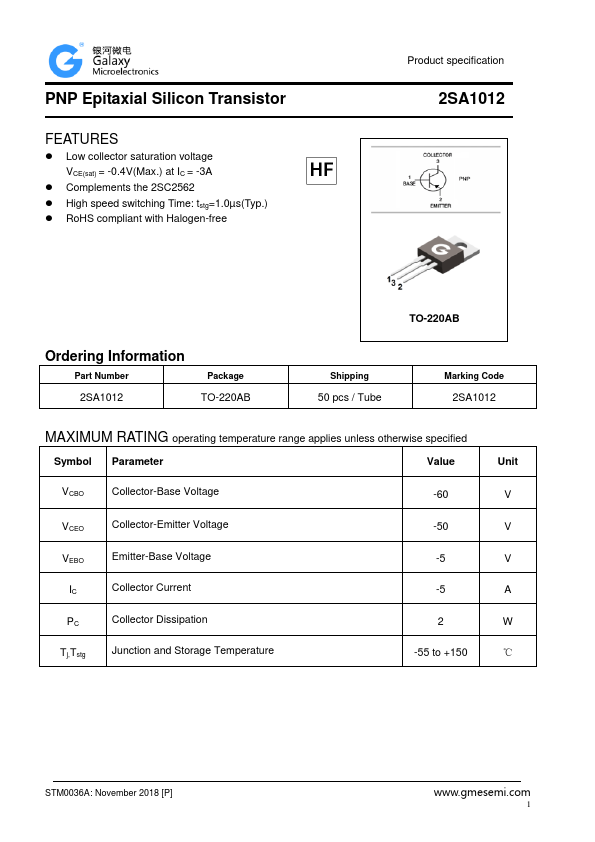

  • Low collector saturation voltage VCE(sat) = -0.4V(Max. ) at IC = -3A.
  • Complements the 2SC2562.
  • High speed switching Time: tstg=1.0µs(Typ. ).
  • RoHS compliant with Halogen-free Product specification 2SA1012 Ordering Information Part Number 2SA1012 Package TO-220AB TO-220AB Shipping 50 pcs / Tube Marking Code 2SA1012.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1012 TRANSISITOR Toshiba Semiconductor
2SA1012 PNP Transistor SEMTECH
2SA1012 PNP SILICON TRANSISTOR UTC
2SA1012 TO-252 PNP Transistor INCHANGE
2SA1012 Silicon PNP transistor BLUE ROCKET ELECTRONICS

Other Datasheets by Galaxy Microelectronics

Part Number Description
2SA1012 PNP Epitaxial Silicon Transistor
2SA1015 Silicon Epitaxial Planar Transistor
2SA1036 Silicon Epitaxial Planar Transistor
2SA1037 Silicon Epitaxial Planar Transistor
2SA1162 Silicon Epitaxial Planar Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

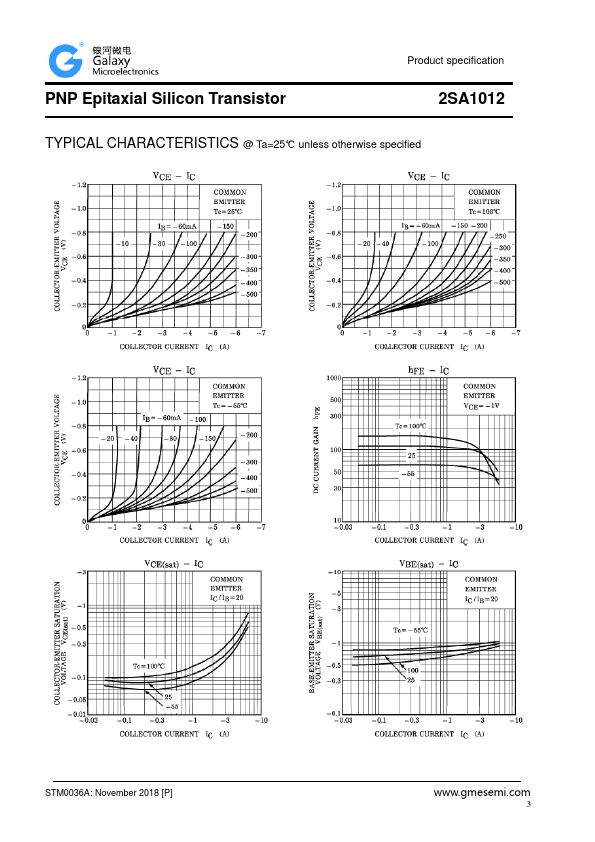

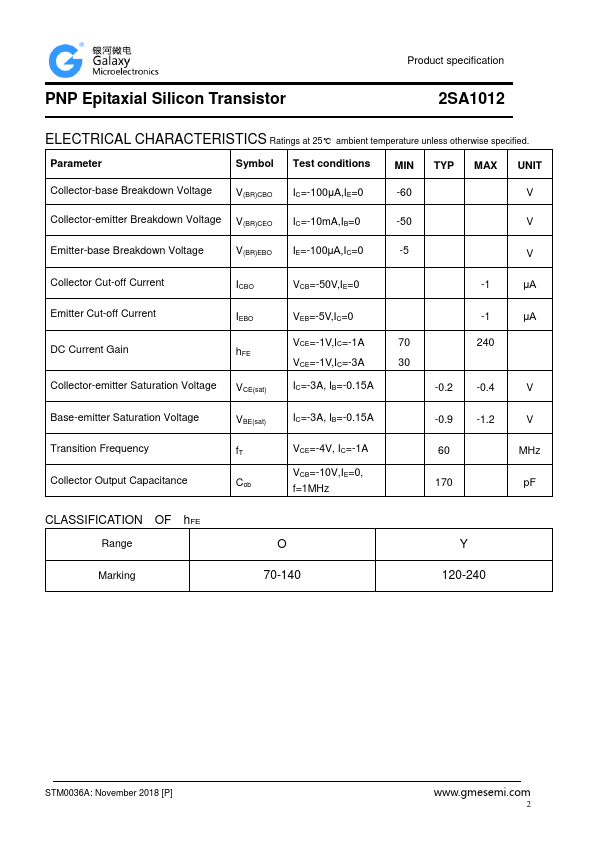

PNP Epitaxial Silicon Transistor FEATURES  Low collector saturation voltage VCE(sat) = -0.4V(Max.) at IC = -3A  Complements the 2SC2562  High speed switching Time: tstg=1.0µs(Typ.)  RoHS compliant with Halogen-free Product specification 2SA1012 Ordering Information Part Number 2SA1012 Package TO-220AB TO-220AB Shipping 50 pcs / Tube Marking Code 2SA1012 MAXIMUM RATING operating temperature range applies unless otherwise specified Symbol Parameter Value Unit VCBO Collector-Base Voltage -60 V VCEO Collector-Emitter Voltage -50 V VEBO IC PC Tj,Tstg Emitter-Base Voltage Collector Current Collector Dissipation Junction and Storage Temperature -5 V -5 A 2 W -55 to +150 ℃ STM0036A: November 2018 [P] www.gmesemi.
