MB7130H - High Speed Schottky TTL PROM

Product Overview

Fujitsu

📥 Download Datasheet

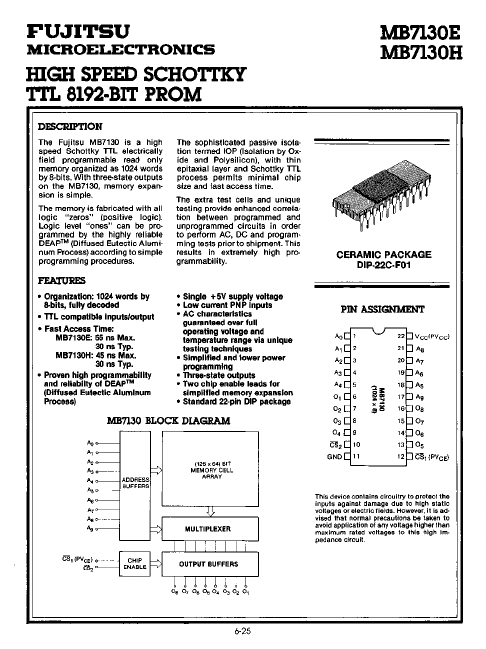

MB7130H High Speed Schottky TTL PROM by Fujitsu - Datasheet Preview — Datasheet preview – MB7130H

Datasheet Details

Part number	MB7130H
Manufacturer	Fujitsu
File Size	90.06 KB
Description	High Speed Schottky TTL PROM
Datasheet	MB7130H Datasheet
Note	This datasheet PDF includes multiple part numbers: MB7130H, MB7130. Please refer to the document for exact specifications by model.

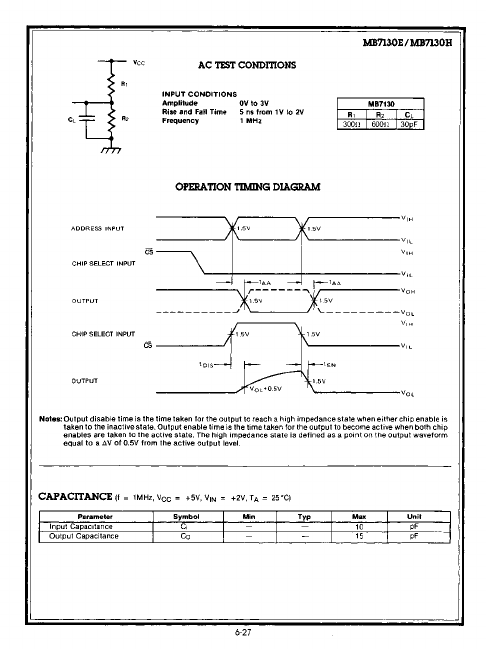

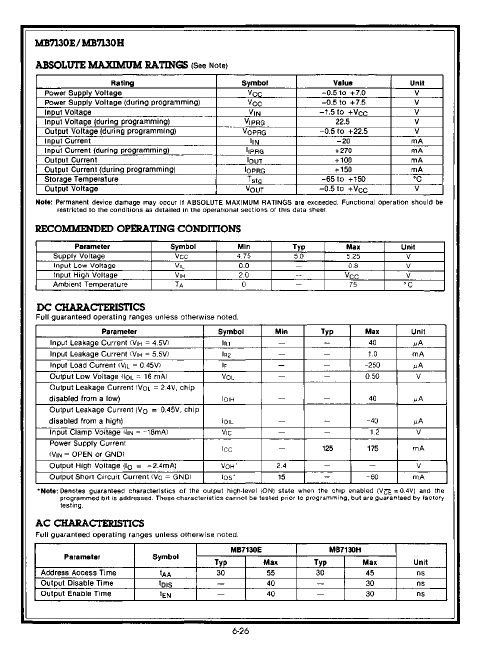

Additional preview pages of the MB7130H datasheet.

Product details

Description

The Fujitsu MB7130 is a high speed Schottky TIL electrically field programmable read only memory organized as 1024 words by 8-bits.

Features

Organization: 1024 words by 8-bits, fully decoded.
TIL compatible inputs/output.
Fast Access Time: MB713OE: 55 ns Max_ 30 ns Typ_ MB7130H: 45 ns Max_ 30 ns Typ_.
Proven high programmability and rellabilty of DEAPTM (Diffused Eutectic Aluminum Process).
Single +5V supply voltage.
Low current PNP inputs.
AC characteristics guaranteed over full operating voltage and temperature range via unique testing techniques.
Simplified.
