FP5139 - Asynchronous Boost Controller

Feeling Technology

Datasheet Details

Part number	FP5139
Manufacturer	Feeling Technology
File Size	430.98 KB
Description	Asynchronous Boost Controller
Datasheet	FP5139 Datasheet

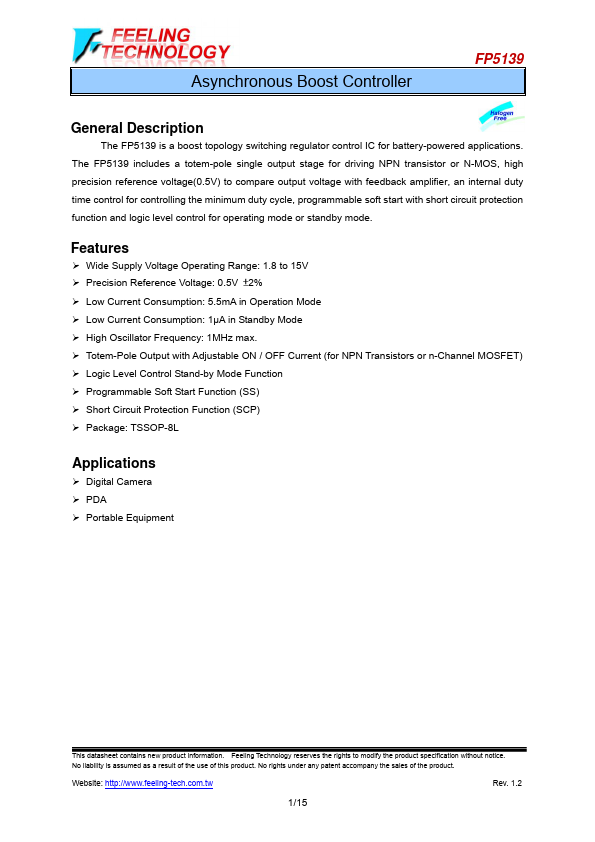

General Description

The FP5139 is a boost topology switching regulator control IC for battery-powered applications.

The FP5139 includes a totem-pole single output stage for driving NPN transistor or N-MOS, high precision reference voltage(0.5V) to compare output voltage with feedback amplifier, an internal duty time control for controlling the minimum duty cycle, programmable soft start with short circuit protection function and logic level control for operating mode or standby mode.

Overview

Asynchronous Boost Controller FP5139 General.

Key Features

Wide Supply Voltage Operating Range: 1.8 to 15V.
Precision Reference Voltage: 0.5V ±2%.
Low Current Consumption: 5.5mA in Operation Mode.
Low Current Consumption: 1μA in Standby Mode.
High Oscillator Frequency: 1MHz max.
Totem-Pole Output with Adjustable ON / OFF Current (for NPN Transistors or n-Channel MOSFET).
Logic Level Control Stand-by Mode Function.
Programmable Soft Start Function (SS).
Short Circuit Protection Function (SCP).
Package:.
