FR8012HAQ

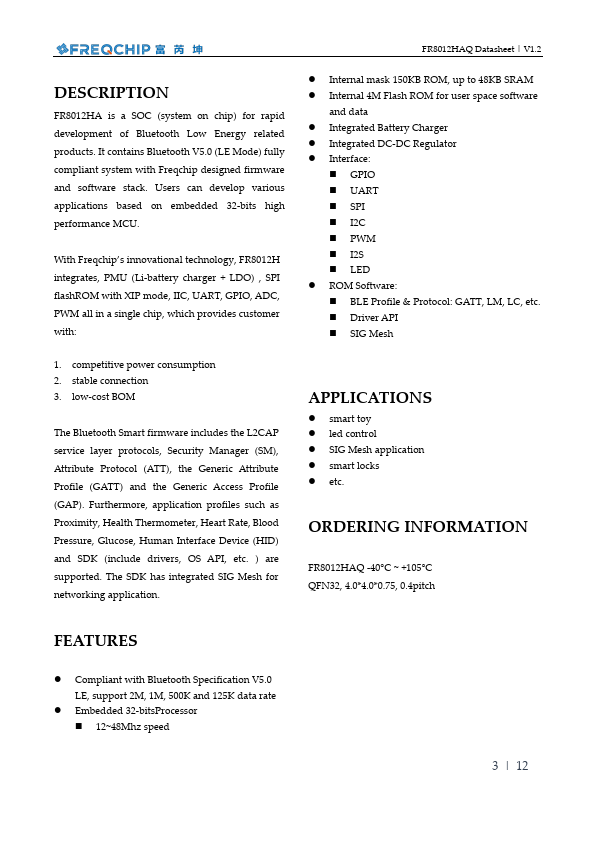

DESCRIPTION
FR8012HA is a SOC (system on chip) for rapid development of Bluetooth Low Energy related products. It contains Bluetooth V5.0 (LE Mode) fully pliant system with Freqchip designed firmware and software stack. Users can develop various applications based on embedded 32-bits high performance MCU.
With Freqchip’s innovational technology, FR8012H integrates, PMU (Li-battery charger + LDO) , SPI flash ROM with XIP mode, IIC, UART, GPIO, ADC, PWM all in a single chip, which provides customer with:
- Internal mask 150KB ROM, up to 48KB SRAM
- Internal 4M Flash ROM for user space software and data
- Integrated Battery Charger
- Integrated DC-DC Regulator
- Interface:
- GPIO
- UART
- SPI
- I2C
- PWM
- I2S
- LED
- ROM Software:
- BLE Profile & Protocol: GATT, LM, LC, etc.
- Driver API
- SIG Mesh
1. petitive power consumption 2. stable connection 3. low-cost BOM
The Bluetooth Smart firmware includes the L2CAP service layer protocols, Security Manager (SM), Attribute Protocol (ATT),...
