FRC3 - RELAY

Features

  • Small size and high contact rating 70A High temperature design. Plug in or P. C. Board terminal Optional mounting bracket 3.

📥 Download Datasheet

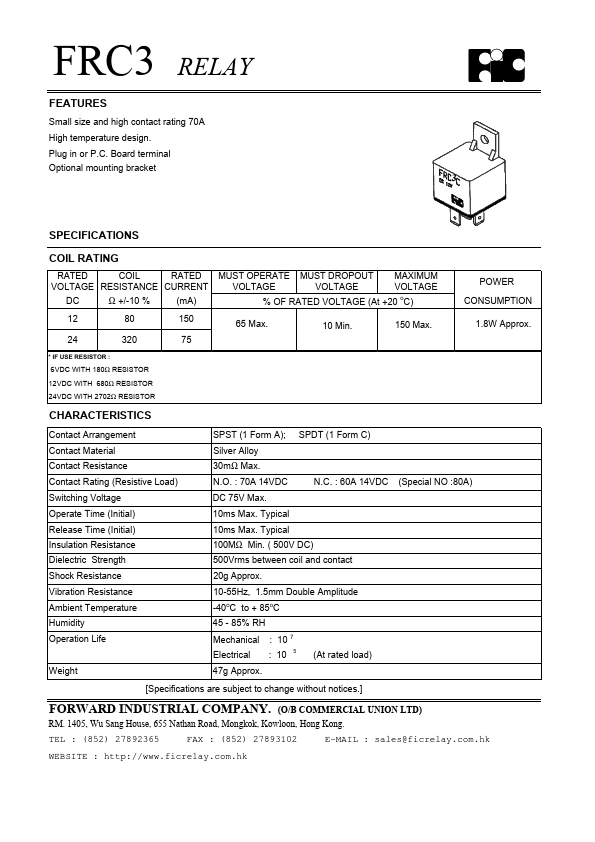

Datasheet preview – FRC3

Datasheet Details

Part number FRC3
Manufacturer FORWARD
File Size 116.63 KB
Description RELAY
Datasheet download datasheet FRC3 Datasheet

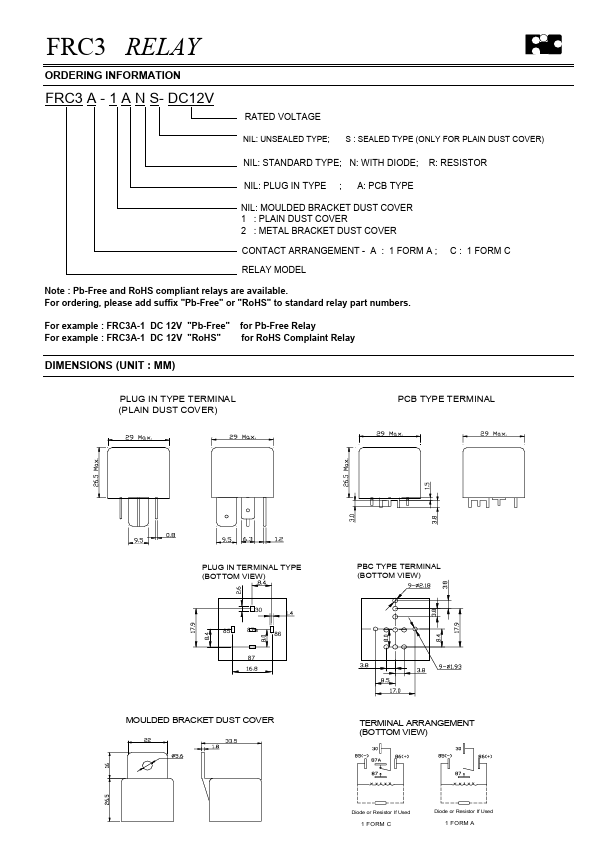

Additional preview pages of the FRC3 datasheet.

📁 Similar Datasheet

  • FRC3 - (FRC3 Series) High Current Version (DDK)
  • FRC-20 - Variable Transformers Controller (Staco)
  • FRC-20 - Transformer Controller (Staco Energy)
  • FRC-D - (FRC-D Series) PCB Connectors (DDK)
  • FRC-E - (FRC-E Series) PCB Connectors (DDK)
  • FRC-J - (FRC-J Series) PCB Connectors (DDK)
  • FRC1 - RELAY (ETC)
  • FRC2 - Relay (ETC)
  • FRC20 - Reversing fan controller (Miratron)
  • FRC2A - Relay (ETC)
Other Datasheets by FORWARD

Full PDF Text Transcription

Click to expand full text
FRC3 RELAY FEATURES Small size and high contact rating 70A High temperature design. Plug in or P.C. Board terminal Optional mounting bracket 3 SPECIFICATIONS COIL RATING RATED COIL RATED MUST OPERATE MUST DROPOUT MAXIMUM VOLTAGE RESISTANCE CURRENT VOLTAGE VOLTAGE VOLTAGE DC Ω +/-10 % (mA) % OF RATED VOLTAGE (At +20 oC) 12 80 150 65 Max. 24 320 75 10 Min. 150 Max. POWER CONSUMPTION 1.8W Approx.
