EL357N Datasheet 4 PIN ULTRA SMALL SOP PHOTOTRANSISTOR PHOTOCOUPLER

Manufacturer: Everlight

Download the EL357N datasheet PDF. This datasheet also includes the EL357N-G variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (EL357N-G-EverlightElectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number EL357N
Manufacturer Everlight
File Size 2.14 MB
Description 4 PIN ULTRA SMALL SOP PHOTOTRANSISTOR PHOTOCOUPLER
Datasheet download datasheet EL357N Datasheet

General Description

The EL357N-G series contains an infrared emitting diode, optically coupled to a phototransistor detector.

The devices in a 4-pin small outline SMD package.

Pin Configuration 1.

Overview

4 PIN ULTRA SMALL SOP PHOTOTRANSISTOR PHOTOCOUPLER.

Key Features

  • Halogens free.
  • Current transfer ratio (CTR: 50~600% at IF =5mA, VCE =5V).
  • High isolation voltage between input and output (Viso=3750 V rms ).
  • Compact 4 Pin SOP with a 2.0 mm profile.
  • Pb free and RoHS compliant.
  • UL approved (No. E214129).
  • VDE approved (No. 132249).
  • SEMKO approved.
  • NEMKO approved.
  • DEMKO approved.
  • FIMKO approved.

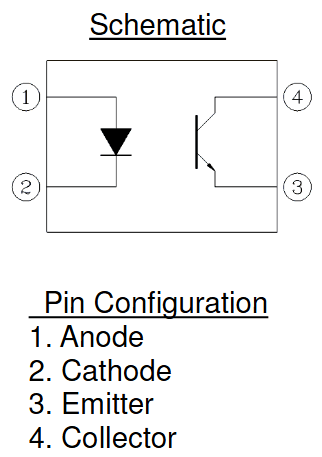

  • CSA approved (No. 1408633) EL357N-G Series Schematic Desc.
