FLM5964-35F - C-Band Internally Matched FET

General Description

The FLM5964-35F is a power GaAs FET that is internally matched for standard communication bands to provide optimum power and gain in a 50Ω system.

.

Key Features

  • High Output Power: P1dB=45.5dBm(Typ. ) High Gain: G1dB=9.0dB(Typ. ) High PAE: ηadd=36%(Typ. ) Broad Band: 5.9~6.4GHz Impedance Matched Zin/Zout = 50Ω Hermetically Sealed Package.

📥 Download Datasheet

Datasheet Details

Part number FLM5964-35F
Manufacturer Eudyna Devices
File Size 314.39 KB
Description C-Band Internally Matched FET
Datasheet download datasheet FLM5964-35F Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FLM5964-35F C-Band Internally Matched FET SUMITOMO
FLM5964-35DA Internally Matched Power GaAs FETs Fujitsu
FLM5964-12DA Internally Matched Power GaAs FETs Fujitsu
FLM5964-12F C-Band Internally Matched FET Fujitsu
FLM5964-12F C-Band Internally Matched FET SUMITOMO

Other Datasheets by Eudyna Devices

Part Number Description
FLM5964-12F C-Band Internally Matched FET
FLM5964-18F C-Band Internally Matched FET
FLM5964-25F C-Band Internally Matched FET
FLM5964-45F C-Band Internally Matched FET
FLM5964-4F C-Band Internally Matched FET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

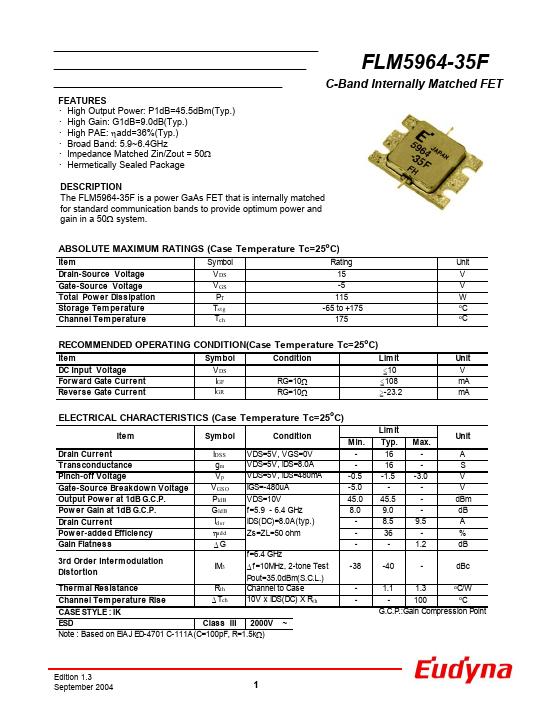

FEATURES High Output Power: P1dB=45.5dBm(Typ.) High Gain: G1dB=9.0dB(Typ.) High PAE: ηadd=36%(Typ.) Broad Band: 5.9~6.4GHz Impedance Matched Zin/Zout = 50Ω Hermetically Sealed Package DESCRIPTION The FLM5964-35F is a power GaAs FET that is internally matched for standard communication bands to provide optimum power and gain in a 50Ω system. w w w .D a t a S e e h U t4 .
