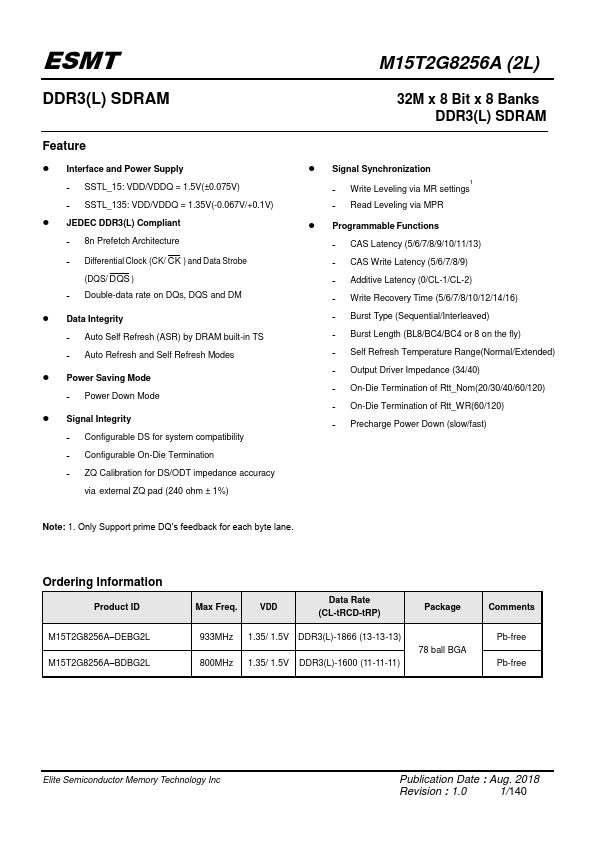

M15T2G8256A
Feature
- Interface and Power Supply ˗ SSTL_15: VDD/VDDQ = 1.5V(±0.075V) ˗ SSTL_135: VDD/VDDQ = 1.35V(-0.067V/+0.1V)
- JEDEC DDR3(L) pliant ˗ 8n Prefetch Architecture ˗ Differential Clock (CK/ CK ) and Data Strobe (DQS/ DQS ) ˗ Double-data rate on DQs, DQS and DM
- Data Integrity ˗ Auto Self Refresh (ASR) by DRAM built-in TS ˗ Auto Refresh and Self Refresh Modes
- Power Saving Mode ˗ Power Down Mode
- Signal Integrity ˗ Configurable DS for system patibility ˗ Configurable On-Die Termination ˗ ZQ Calibration for DS/ODT impedance accuracy via external ZQ pad (240 ohm ± 1%)

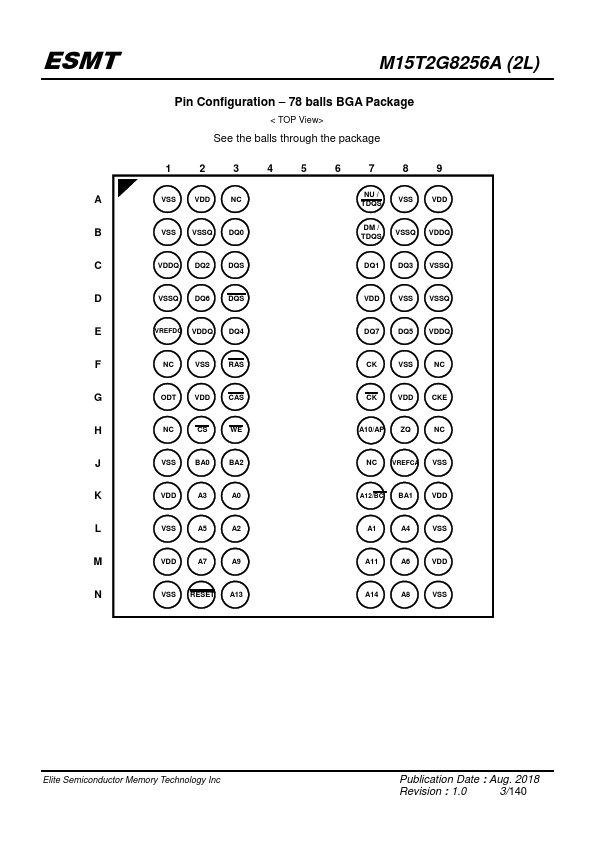

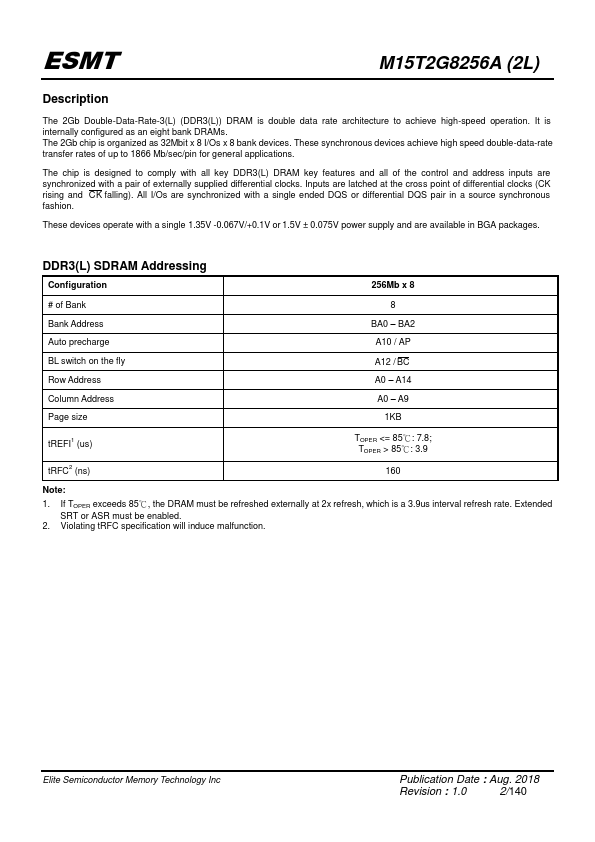

M15T2G8256A (2L)
32M x 8 Bit x 8 Banks DDR3(L) SDRAM
- Signal Synchronization
˗ Write Leveling via MR settings ˗ Read Leveling via MPR
- Programmable Functions ˗ CAS Latency (5/6/7/8/9/10/11/13) ˗ CAS Write Latency (5/6/7/8/9) ˗ Additive Latency (0/CL-1/CL-2) ˗ Write Recovery Time (5/6/7/8/10/12/14/16) ˗ Burst Type (Sequential/Interleaved) ˗ Burst Length (BL8/BC4/BC4 or 8 on the fly) ˗ Self Refresh Temperature...
