M12L64164A-5BG2C - 1M x 16 Bit x 4 Banks Synchronous DRAM

Product Overview

ESMT

Part number	M12L64164A-5BG2C
Manufacturer	ESMT
File Size	1.20 MB
Description	1M x 16 Bit x 4 Banks Synchronous DRAM
Datasheet	M12L64164A-5BG2C Datasheet
Note	This datasheet PDF includes multiple part numbers: M12L64164A-5BG2C, M12L64164A. Please refer to the document for exact specifications by model.

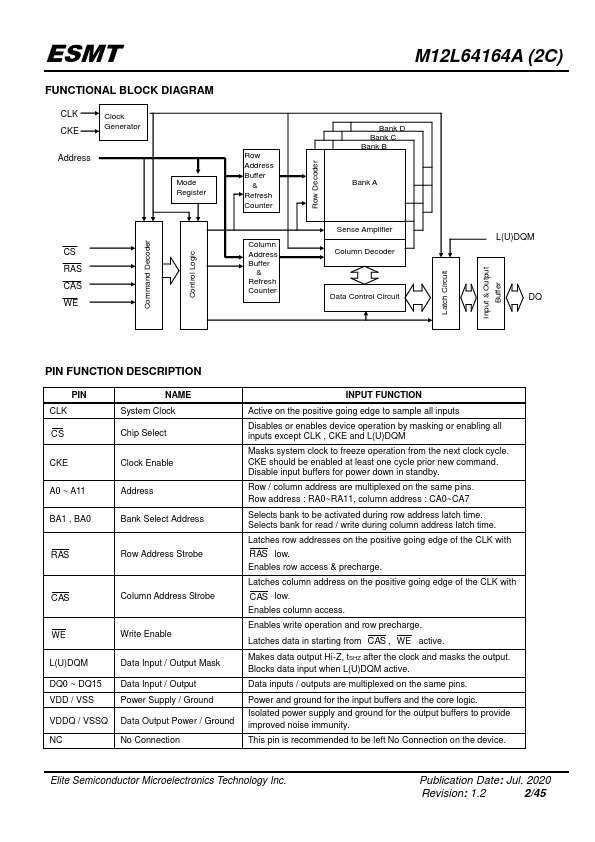

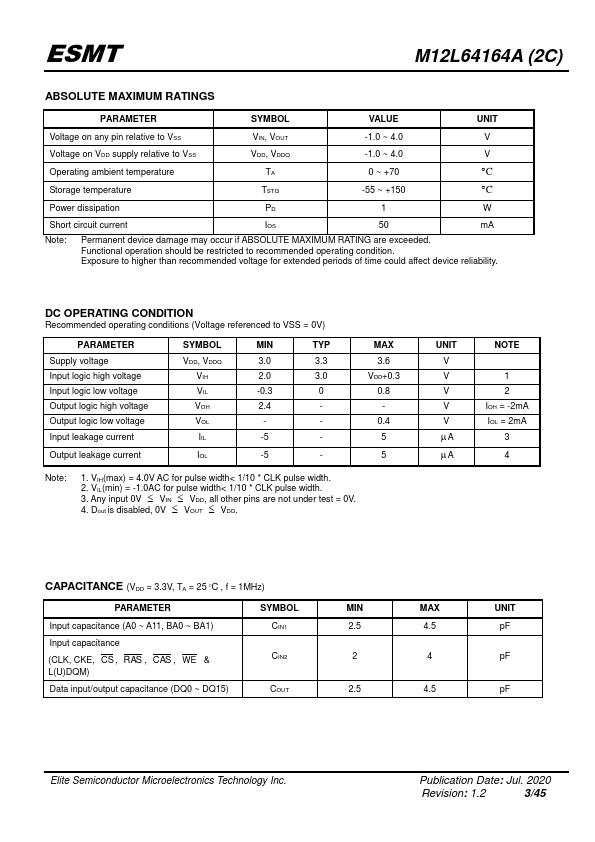

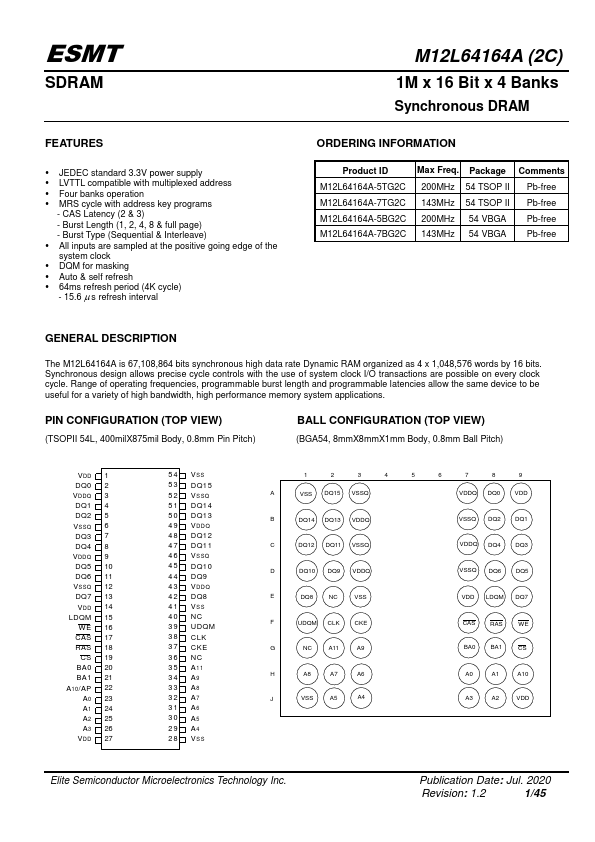

Additional preview pages of the M12L64164A-5BG2C datasheet.

The M12L64164A is 67,108,864 bits synchronous high data rate Dynamic RAM organized as 4 x 1,048,576 words by 16 bits.

JEDEC standard 3.3V power supply LVTTL compatible with multiplexed address Four banks operation MRS cycle with address key programs - CAS Latency (2 & 3) - Burst Length (1, 2, 4, 8 & full page) - Burst Type (Sequential & Interleave) All inputs are sampled at the positive going edge of the system clock DQM for masking Auto & self refresh 64ms refresh period (4K cycle) - 15.6 µ s refresh interval M12L64164A (2C) 1M x 16 Bit x 4 Banks Synchronous DRAM.
