LD3179 - Two Lamp DC to AC Inverter

Product Overview

ERG

LD3179 Two Lamp DC to AC Inverter by ERG - Datasheet Preview — Datasheet preview – LD3179

Datasheet Details

Part number	LD3179
Manufacturer	ERG
File Size	155.37 KB
Description	Two Lamp DC to AC Inverter
Datasheet	LD3179 Datasheet

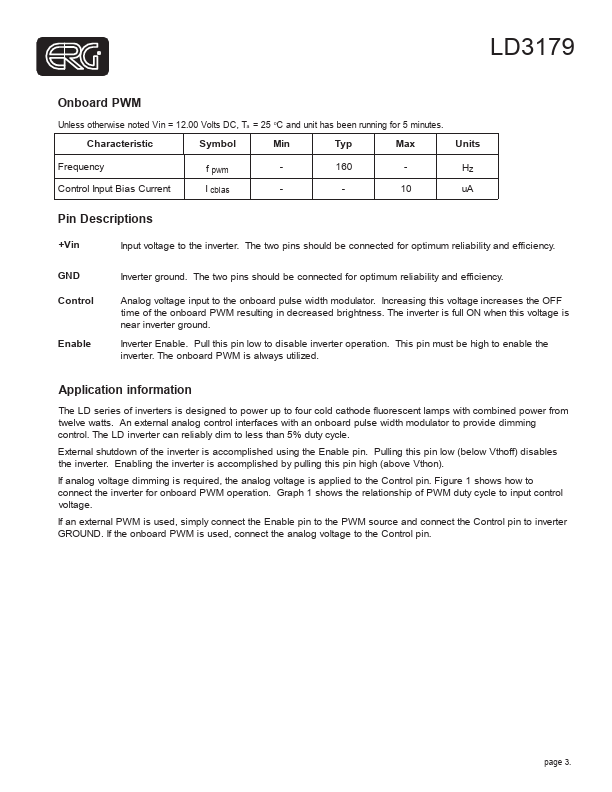

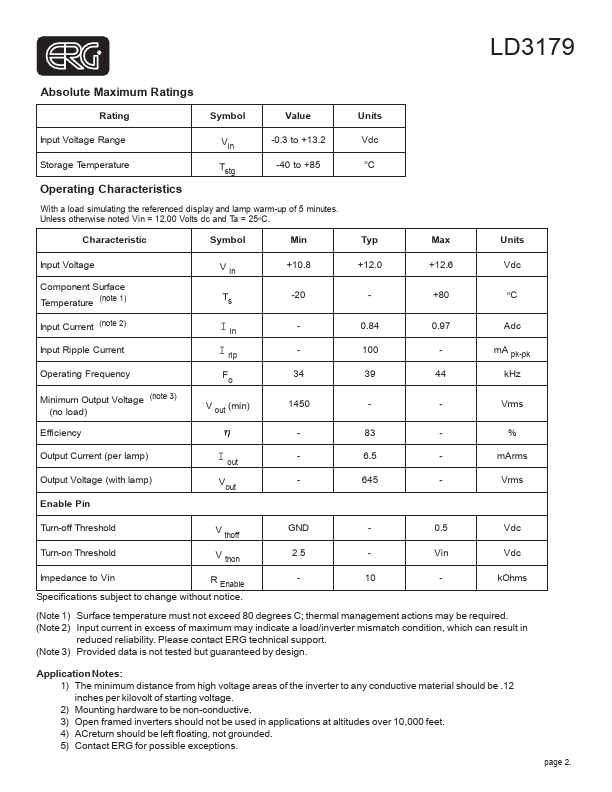

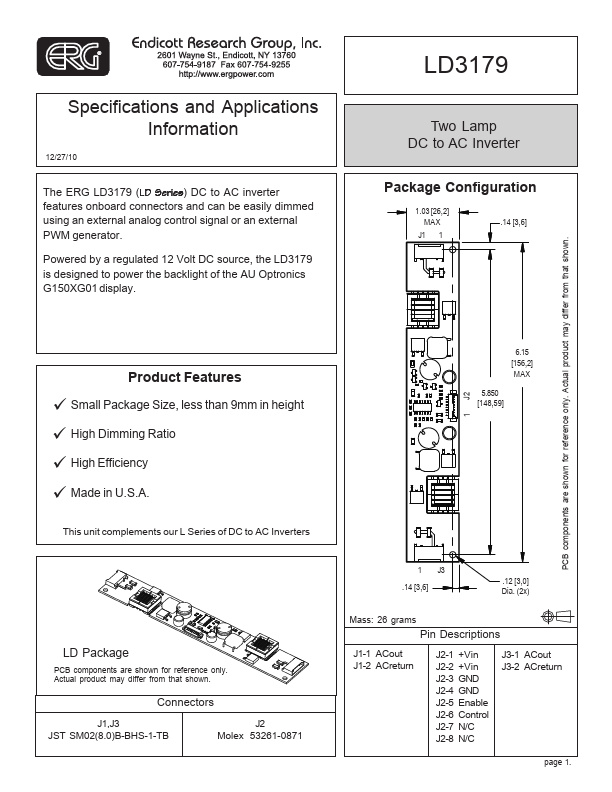

Additional preview pages of the LD3179 datasheet.

Product details

Description

J1-1 ACout J1-2 ACreturn J2-1 +Vin J2-2 +Vin J2-3 GND J2-4 GND J2-5 Enable J2-6 Control J2-7 N/C J2-8 N/C J3-1 ACout J3-2 ACreturn page 1. LD3179 Absolute Maximum Ratings Rating Symbol Value Units Input Voltage Range Vin -0.3 to +13.2 Vdc Storage Temperature Tstg -40 to +85 oC Operating Characteristics With a load simulating the referenced display and lamp warm-up of 5 minutes.Unless otherwise noted Vin = 12.00 Volts dc and Ta = 25oC.Characteristic Symbol Min Typ Max

Features

onboard connectors and can be easily dimmed using an external analog control signal or an external PWM generator. Powered by a regulated 12 Volt DC source, the LD3179 is designed to power the backlight of the AU Optronics G150XG01 display. LD3179 Two Lamp DC to AC Inverter Package Configuration 1.03 [26,2] MAX J1 1 .14 [3,6] 1 J2 PCB components are shown for reference only. Actual product may differ from that shown. Product Features.
Small Package Size, less than 9mm in height.
