ELM4P2607FAA-S - Single P-channel MOSFET

Key Features

  • ELM4P2607FAA-S uses advanced trench technology to.
  • Vds=-20V provide excellent Rds(on), low gate charge and low gate.
  • Id=-6.9A (Vgs=-4.5V) threshold voltage.
  • Rds(on) = 30mΩ (Vgs=-4.5V).
  • Rds(on) = 38mΩ (Vgs=-2.5V).
  • Rds(on) = 55mΩ (Vgs=-1.8V).
  • Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current (Vgs=-4.5V) Pulsed drain current Total power dissipation Storage temperature range Operating junct.

📥 Download Datasheet

Datasheet Details

Part number ELM4P2607FAA-S
Manufacturer ELM
File Size 857.94 KB
Description Single P-channel MOSFET
Datasheet download datasheet ELM4P2607FAA-S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ELM452 TRANSISTOR PHOTOCOUPLER Everlight
ELM453 TRANSISTOR PHOTOCOUPLER Everlight
ELM-1081SURWA Dot Matrix Display Everlight
ELM-2001EWA Dot Matrix Display Everlight Electronics
ELM-2001GWA Dot Matrix Display Everlight Electronics

Other Datasheets by ELM

Part Number Description
ELM4P4103FAA-N Single P-channel MOSFET
ELM4P6105FDA-N Single P-channel MOSFET
ELM4P6115FDA-N Single P-channel MOSFET
ELM401 Rotary Encoder Debounce Circuit
ELM402 Rotary Decoder

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

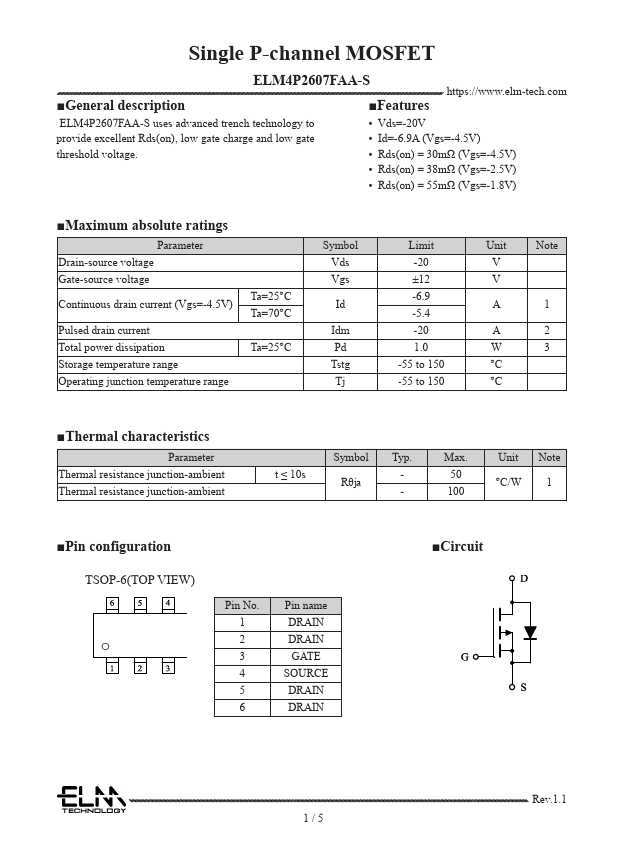

Single P-channel MOSFET ELM4P2607FAA-S https://www.elm-tech.com ■General description ■Features ELM4P2607FAA-S uses advanced trench technology to • Vds=-20V provide excellent Rds(on), low gate charge and low gate • Id=-6.9A (Vgs=-4.5V) threshold voltage. • Rds(on) = 30mΩ (Vgs=-4.5V) • Rds(on) = 38mΩ (Vgs=-2.5V) • Rds(on) = 55mΩ (Vgs=-1.8V) ■Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current (Vgs=-4.5V) Pulsed drain current Total power dissipation Storage temperature range Operating junction temperature range Ta=25°C Ta=70°C Ta=25°C Symbol Vds Vgs Id Idm Pd Tstg Tj Limit -20 ±12 -6.9 -5.4 -20 1.
