SNOA - SURFACE MOUNT RECTIFIERS

Features

  • :.
  • High current capability.
  • High surge current capability.
  • High reliability.
  • Low reverse current.
  • Low forward voltage drop.
  • Pb / RoHS Free 1.2 ± 0.2 2.6 ± 0.15 2.1 ± 0.2 0.2 ± 0.07 2.0 ± 0.2.

📥 Download Datasheet

Datasheet Details

Part number SNOA
Manufacturer EIC
File Size 36.37 KB
Description SURFACE MOUNT RECTIFIERS
Datasheet download datasheet SNOA Datasheet

📁 Similar Datasheet

  • SNOA - SURFACE MOUNT GENERAL PURPOSE PLASTIC RECTIFIER (GOOD-ARK Electronics)
  • SNOB - SURFACE MOUNT GENERAL PURPOSE PLASTIC RECTIFIER (GOOD-ARK Electronics)
  • SNOD - SURFACE MOUNT GENERAL PURPOSE PLASTIC RECTIFIER (GOOD-ARK Electronics)
  • SNOE - SURFACE MOUNT GENERAL PURPOSE PLASTIC RECTIFIER (GOOD-ARK Electronics)
  • SNOG - SURFACE MOUNT GENERAL PURPOSE PLASTIC RECTIFIER (GOOD-ARK Electronics)
  • SNOH - SURFACE MOUNT GENERAL PURPOSE PLASTIC RECTIFIER (GOOD-ARK Electronics)
  • SNOJ - SURFACE MOUNT GENERAL PURPOSE PLASTIC RECTIFIER (GOOD-ARK Electronics)
  • SNOK - SURFACE MOUNT GENERAL PURPOSE PLASTIC RECTIFIER (GOOD-ARK Electronics)
  • SNOM - SURFACE MOUNT GENERAL PURPOSE PLASTIC RECTIFIER (GOOD-ARK Electronics)
Other Datasheets by EIC
  • SNOB - SURFACE MOUNT RECTIFIERS
  • SNOD - SURFACE MOUNT RECTIFIERS
  • SNOE - SURFACE MOUNT RECTIFIERS
  • SNOG - SURFACE MOUNT RECTIFIERS
  • SNOH - SURFACE MOUNT RECTIFIERS
  • SNOJ - SURFACE MOUNT RECTIFIERS
  • SNOK - SURFACE MOUNT RECTIFIERS
  • SNOM - SURFACE MOUNT RECTIFIERS

Full PDF Text Transcription

Click to expand full text

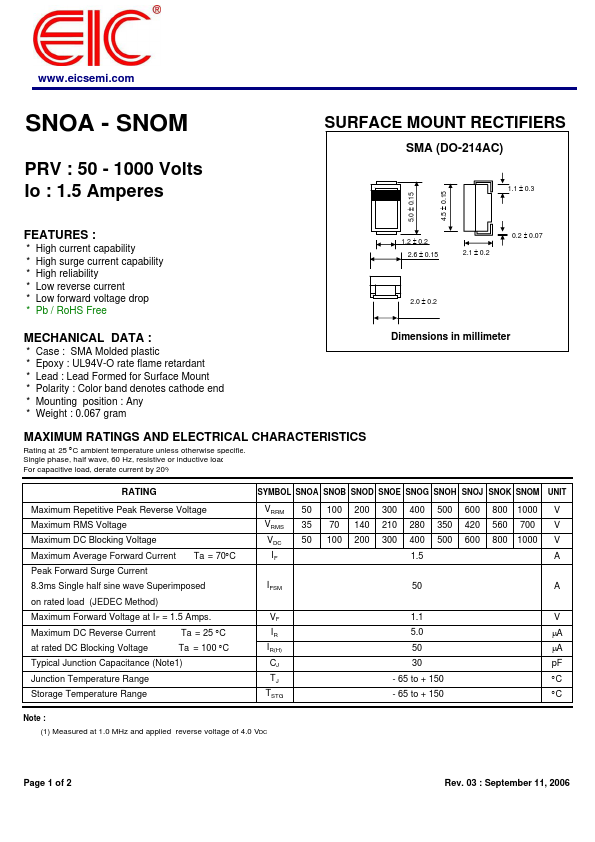

www.eicsemi.com SNOA - SNOM PRV : 50 - 1000 Volts Io : 1.5 Amperes SURFACE MOUNT RECTIFIERS SMA (DO-214AC) 1.1 ± 0.3 5.0 ± 0.15 4.5 ± 0.15 FEATURES : * High current capability * High surge current capability * High reliability * Low reverse current * Low forward voltage drop * Pb / RoHS Free 1.2 ± 0.2 2.6 ± 0.15 2.1 ± 0.2 0.2 ± 0.07 2.0 ± 0.2 MECHANICAL DATA : * Case : SMA Molded plastic * Epoxy : UL94V-O rate flame retardant * Lead : Lead Formed for Surface Mount * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.067 gram Dimensions in millimeter MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25 °C ambient temperature unless otherwise specifie.
