BZG05C22 - ZENER DIODES

Download the BZG05C22 datasheet PDF. This datasheet also covers the BZG05C3V3 variant, as both devices belong to the same zener diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • :.
  • Glass passivated junction.
  • High reliability.
  • Voltage range 3.3 V to 100 V.
  • Low leakage current.
  • Pb / RoHS Free.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BZG05C3V3-EIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number BZG05C22
Manufacturer EIC
File Size 197.47 KB
Description ZENER DIODES
Datasheet download datasheet BZG05C22 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BZG05C22 Zener Diodes GME
BZG05C22 SURFACE MOUNT SILICON ZENER DIODES SunMate
BZG05C22 Zener Diodes Vishay
BZG05C22-M Zener Diode Vishay
BZG05C20 Zener Diodes GME

Other Datasheets by EIC

Part Number Description
BZG05C20 ZENER DIODES
BZG05C24 ZENER DIODES
BZG05C27 ZENER DIODES
BZG05C10 ZENER DIODES
BZG05C11 ZENER DIODES

Full PDF Text Transcription

Click to expand full text

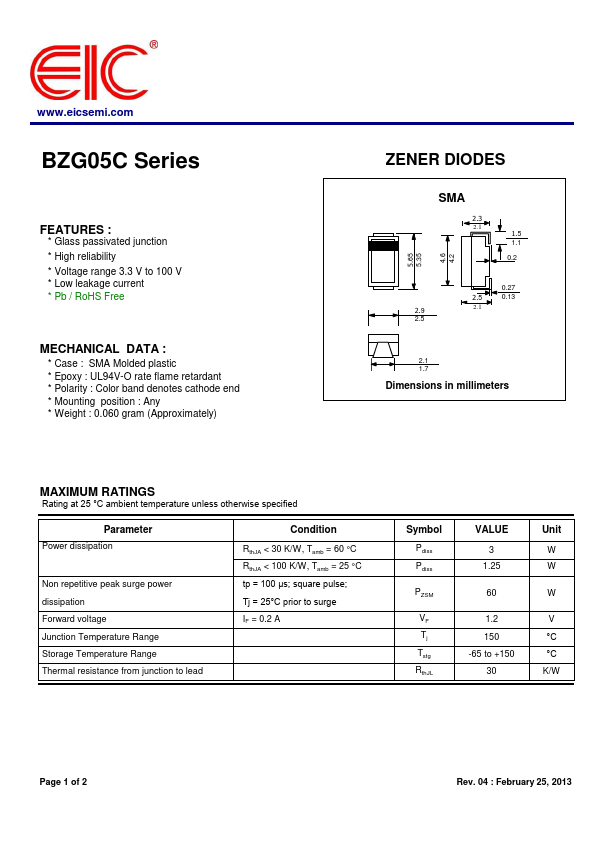

www.eicsemi.com BZG05C Series FEATURES : * Glass passivated junction * High reliability * Voltage range 3.3 V to 100 V * Low leakage current * Pb / RoHS Free MECHANICAL DATA : * Case : SMA Molded plastic * Epoxy : UL94V-O rate flame retardant * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.060 gram (Approximately) ZENER DIODES 5.65 5.35 4. 6 4. 2 SMA 2.3 2.1 1.5 1.1 0.2 0.27 2.5 0.13 2.9 2.1 2.5 2.1 1.
