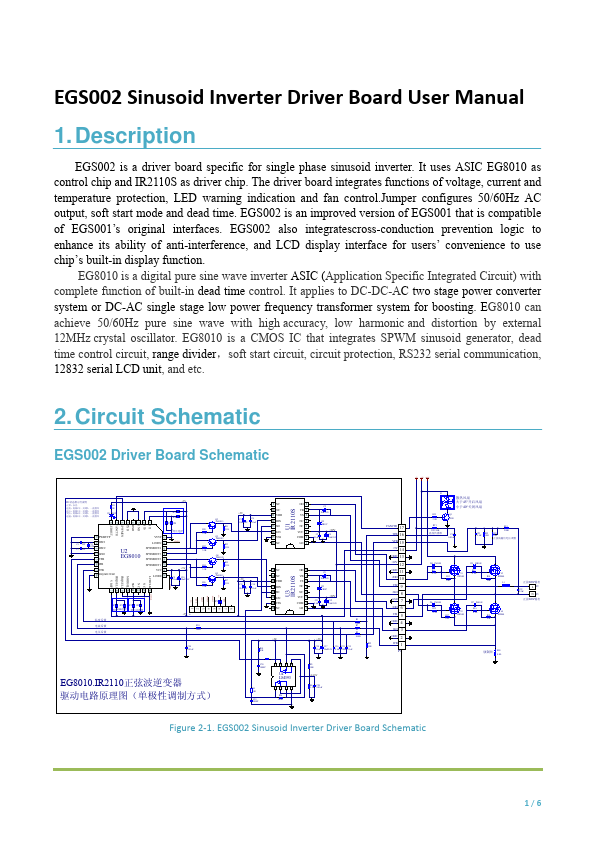

EGS002 Sinusoid Inverter Driver Board User Manual 1. Description EGS002 is a driver board specific for single phase sinusoid inverter. It uses ASIC EG8010 as control chip and IR2110S as driver chip. The driver board integrates functions of voltage, current and temperature protection, LED warning indication and fan control.Jumper configures 50/60Hz AC output, soft start mode and dead time. EGS002 is an improved version of EGS001 that is patible of EGS001’s original interfaces. EGS002 also integratescross-conduction prevention logic to enhance its ability of anti-interference, and LCD display interface for users’ convenience to use chip’s built-in display function. EG8010 is a digital pure sine wave inverter ASIC (Application Specific Integrated Circuit) with plete function of built-in dead time control. It applies to DC-DC-AC two stage power converter system or DC-AC single stage low power frequency transformer system for boosting. EG8010 can achieve 50/60Hz pure sine wave with high accuracy, low harmonic and distortion by external 12MHz crystal oscillator. EG8010 is a CMOS IC that integrates SPWM sinusoid generator, dead time control circuit, range divider，soft start circuit, circuit protection, RS232 serial munication, 12832 serial LCD unit, and etc. 2. Circuit Schematic EGS002 Driver Board Schematic LCDDI 32 31 30 29 28 27 26 25 D1状态指示灯说明 正常：长亮 过流：闪烁2下，灭2秒，一直循环 过压：闪烁3下，灭2秒，一直循环 欠压：闪烁4下，灭2秒，一直循环 过温：闪烁5下，灭2秒，一直循环 R1 1K D1 LED +5V JP3 JP4 JP7 JP8 1 DT1 2 DT0 3 GND 4 RXD 5 TXD 6 SPWMEN 7 FANCTR 8 LEDOUT 9 10 11 12 13 14 15 16 C1 22P C7 22P PWMTYP Y1 OSC1 12M OSC2 GND VFB IFB TFB FRQADJ/VFB2 U2 EG8010 VVVF LCDEN SPWMOUT4 SPWMOUT3 SPWMOUT2 SPWMOUT1 VCC LCDDI 死区选择 LCDCEN +5V C9 C10 0.1uF 10uF/16V Q2 2SA1015 R31...
