CESD2510LC5VU - Low Capacitance ESD TVS Array

Datasheet Summary

Features

  • 80Watts peak pulse power (Tp = 8/20μs).
  • DFN2510 Package.
  • Unidirectional configurations.
  • Solid-state silicon-avalanche technology.
  • Low clamping voltage.
  • Low leakage current.
  • Low capacitance (0.3pF typical I/O to I/O).
  • ESD Protection for high-speed data lines to: IEC 61000-4-2 ±15KV contact ±15KV air IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 5A (8/20μs).

📥 Download Datasheet

Datasheet preview – CESD2510LC5VU

Datasheet Details

Part number CESD2510LC5VU
Manufacturer E-CMOS
File Size 578.95 KB
Description Low Capacitance ESD TVS Array
Datasheet download datasheet CESD2510LC5VU Datasheet

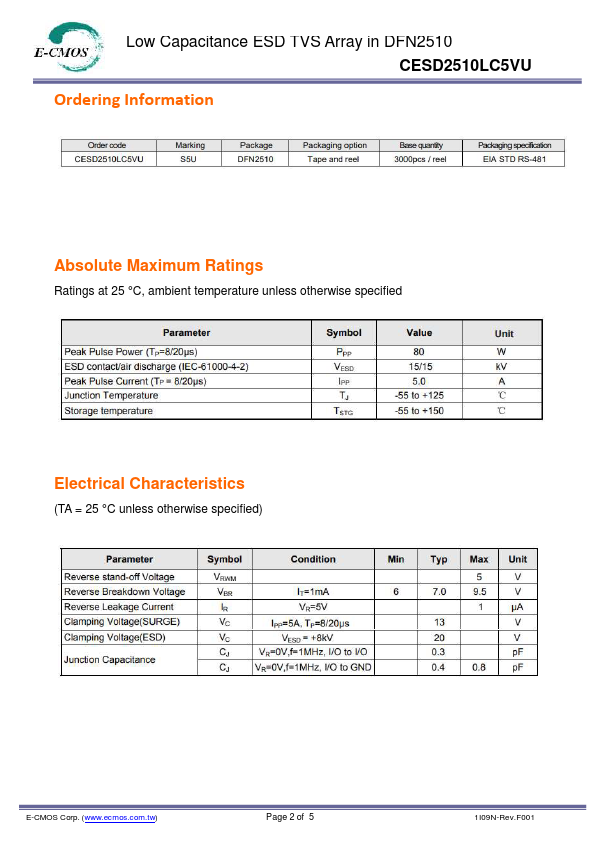

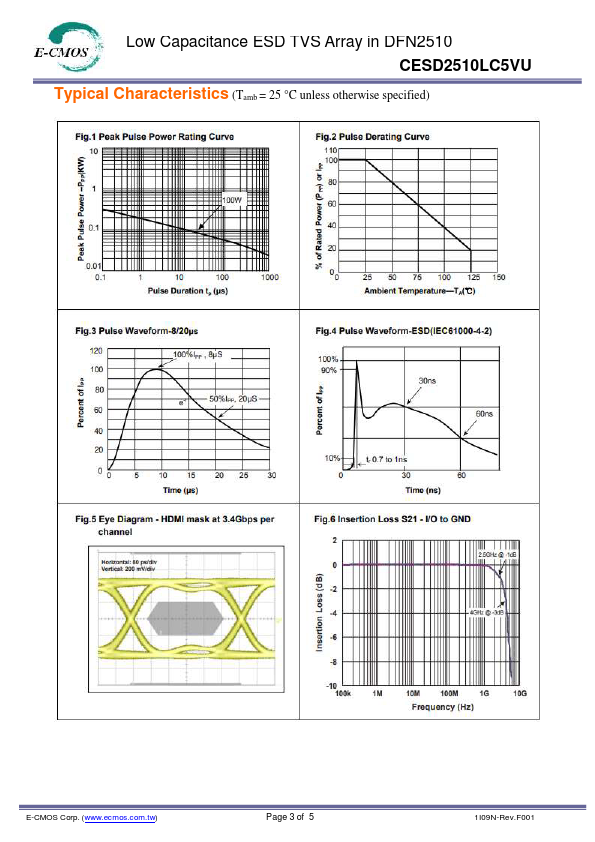

Additional preview pages of the CESD2510LC5VU datasheet.

📁 Similar Datasheet

Other Datasheets by E-CMOS

Full PDF Text Transcription

Click to expand full text

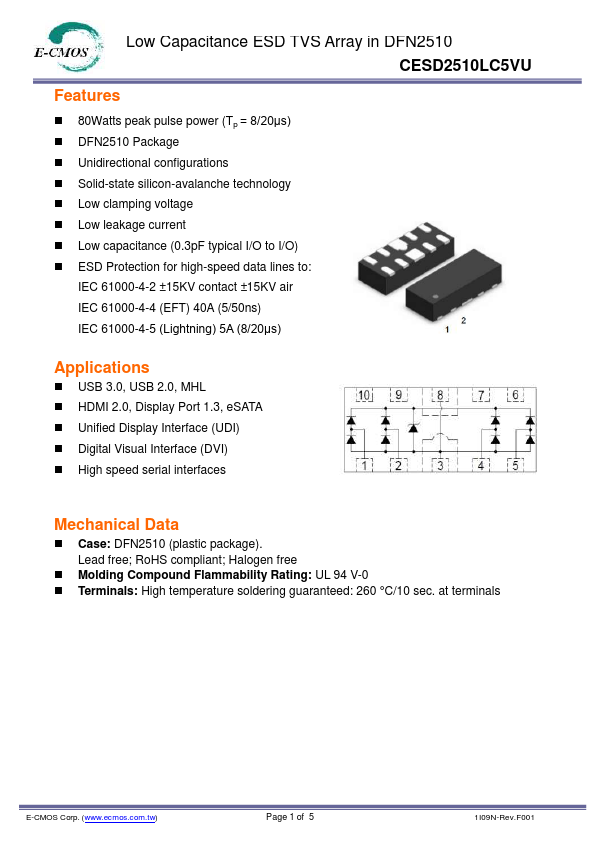

Low Capacitance ESD TVS Array in DFN2510 CESD2510LC5VU Features  80Watts peak pulse power (Tp = 8/20μs)  DFN2510 Package  Unidirectional configurations  Solid-state silicon-avalanche technology  Low clamping voltage  Low leakage current  Low capacitance (0.3pF typical I/O to I/O)  ESD Protection for high-speed data lines to: IEC 61000-4-2 ±15KV contact ±15KV air IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 5A (8/20μs) Applications  USB 3.0, USB 2.0, MHL  HDMI 2.0, Display Port 1.3, eSATA  Unified Display Interface (UDI)  Digital Visual Interface (DVI)  High speed serial interfaces Mechanical Data  Case: DFN2510 (plastic package).
