Datasheet Details
| Part number | SM5400 |
|---|---|
| Manufacturer | Diotec Semiconductor |
| File Size | 214.51 KB |
| Description | Standard Recovery SMD Rectifier Diodes |
| Datasheet |

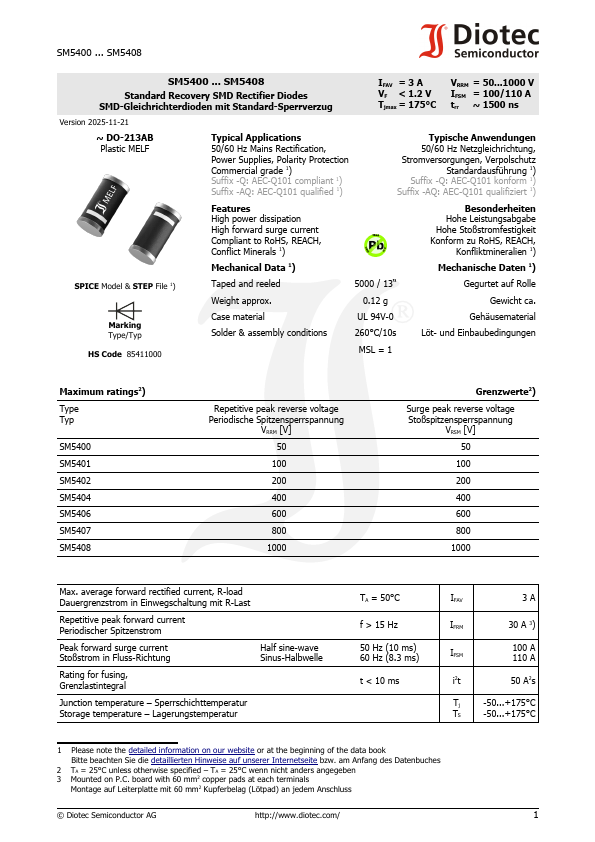

 SM5400 Datasheet
|
|
|
Key Features
- Besonderheiten High power dissipation Hohe Leistungsabgabe High forward surge current Hohe Stoßstromfestigkeit Compliant to RoHS, REACH, Conflict Minerals 1) WEEE RoHS Pb ELV Konform zu RoHS, REACH, Konfliktmineralien 1) Mechanical Data 1) Mechanische Daten 1) SPICE Model & STEP File 1) Taped and reeled Weight approx. 5000 / 13“ 0.12 g Gegurtet auf Rolle Gewicht ca. Marking Type/Typ HS Code 85411000 Case material Solder & assembly conditions UL 94V-0 260°C/10s MSL = 1 Gehäuse.
