DI010N03PW - N-Channel Power MOSFET

Features

  • Tiny, space saving package Low profile height Low on state resistance Fast switching times Low gate charge Compliant to RoHS (w/o exemp. ) REACH, Conflict Minerals 1) WEEE Halogen FREE RoHS Pb ELV Besonderheiten Winzige, platzsparende Bauform Niedrige Bauhöhe Niedriger Einschaltwiderstand Schnelle Schaltzeiten Niedrige Gate-Ladung Konform zu RoHS (ohne Ausn. ) REACH, Konfliktmineralien 1) Mechanical Data 1) Mechanische Daten 1) G 3 S 45 Taped and reeled Weight approx. 4000 / 7“ 0.05 g G.

📥 Download Datasheet

Datasheet Details

Part number DI010N03PW
Manufacturer Diotec
File Size 340.94 KB
Description N-Channel Power MOSFET
Datasheet download datasheet DI010N03PW Datasheet

📁 Similar Datasheet

  • DI01-04 - 1Watt Dual Separate Output DC-DC Converter (FranMar)
  • DI01-04A - 1Watt Dual Separate Output DC-DC Converter (FranMar)
  • DI01-04E - 1Watt Dual Separate Output DC-DC Converter (FranMar)
  • DI01-04F - 1Watt Dual Separate Output DC-DC Converter (FranMar)
  • DI01-04G - 1Watt Dual Separate Output DC-DC Converter (FranMar)
  • DI01-64 - 1Watt Dual Separate Output DC-DC Converter (FranMar)
  • DI01-64E - 1Watt Dual Separate Output DC-DC Converter (FranMar)
  • DI01-64F - 1Watt Dual Separate Output DC-DC Converter (FranMar)
  • DI01-64G - 1Watt Dual Separate Output DC-DC Converter (FranMar)
  • DI08 - Spst Standard DIP Switches (Apem Components)
Other Datasheets by Diotec

    Full PDF Text Transcription

    Click to expand full text

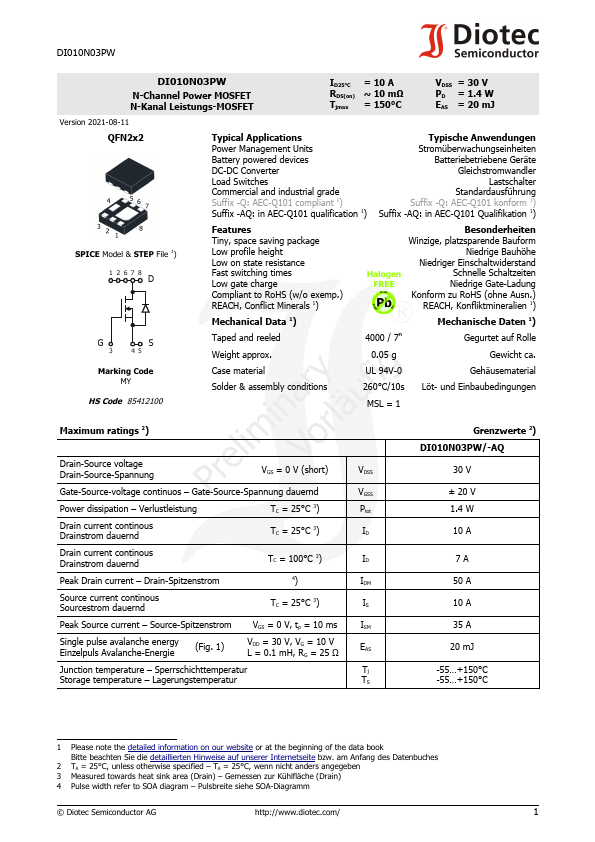

    DI010N03PW DI010N03PW N-Channel Power MOSFET N-Kanal Leistungs-MOSFET ID25°C RDS(on) Tjmax = 10 A ~ 10 mΩ = 150°C VDSS = 30 V PD = 1.4 W EAS = 20 mJ Version 2021-08-11 QFN2x2 Typical Applications Power Management Units Battery powered devices DC-DC Converter Load Switches Commercial and industrial grade Suffix -Q: AEC-Q101 compliant 1) Suffix -AQ: in AEC-Q101 qualification 1) Typische Anwendungen Stromüberwachungseinheiten Batteriebetriebene Geräte Gleichstromwandler Lastschalter Standardausführung Suffix -Q: AEC-Q101 konform 1) Suffix -AQ: in AEC-Q101 Qualifikation 1) SPICE Model & STEP File 1) 12678 D Features Tiny, space saving package Low profile height Low on state resistance Fast switching times Low gate charge Compliant to RoHS (w/o exemp.
