GBJ2506 Datasheet 25A GLASS PASSIVATED BRIDGE RECTIFIER

Manufacturer: Diodes Incorporated

Download the GBJ2506 datasheet PDF. This datasheet also includes the GBJ25005 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

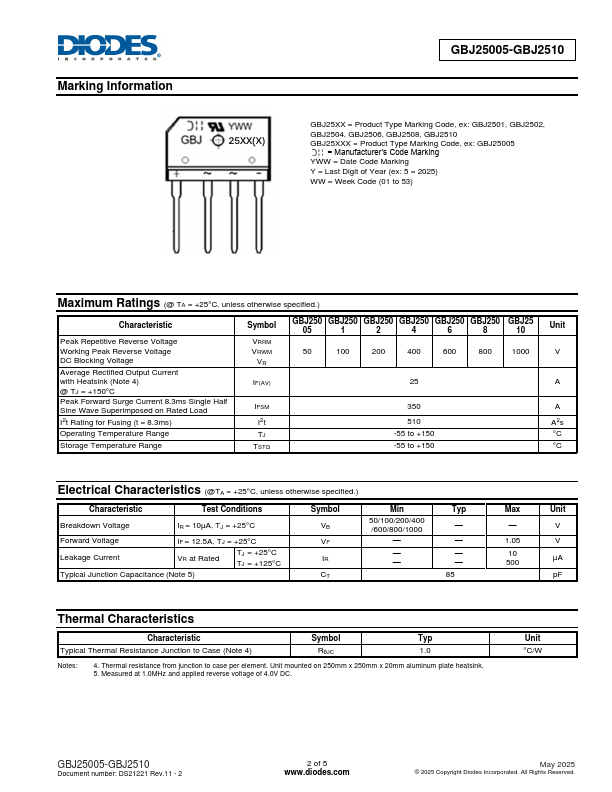

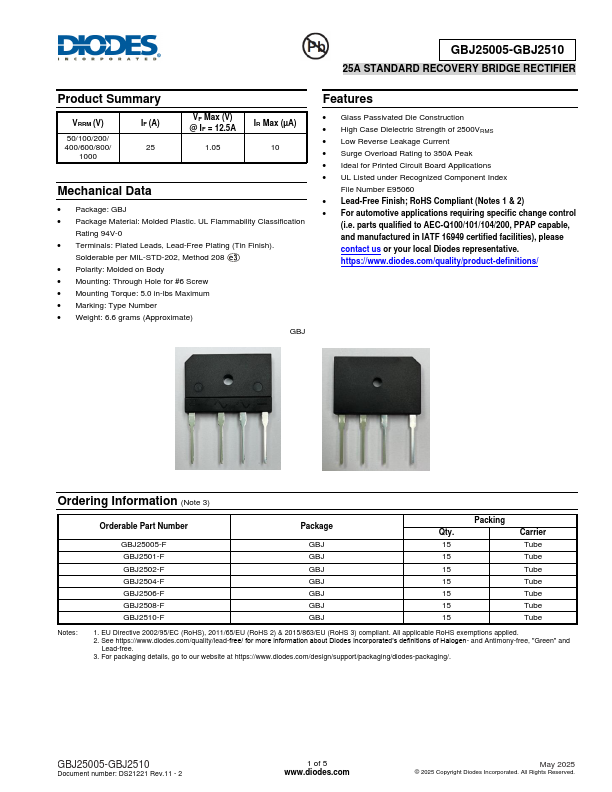

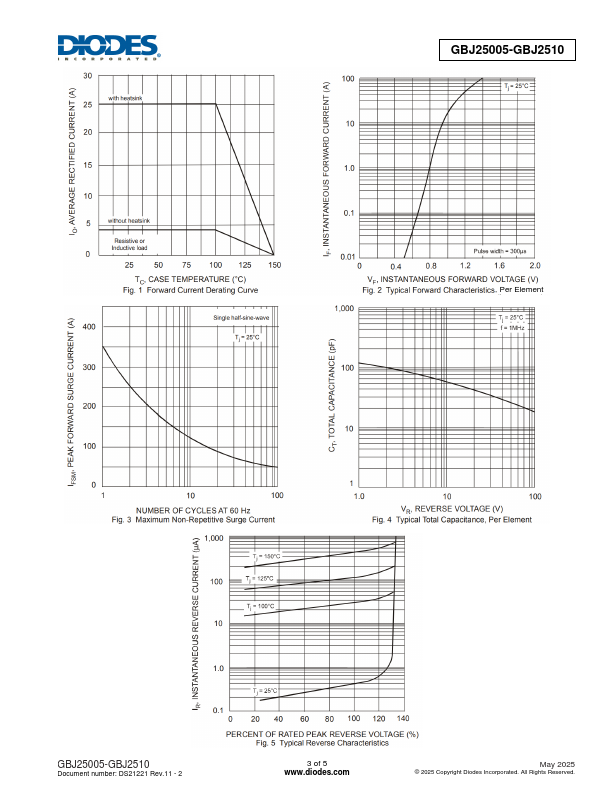

GBJ2506 25a glass passivated bridge rectifier by Diodes Incorporated - Datasheet Preview — Note: The manufacturer provides a single datasheet file (GBJ25005-Diodes.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	GBJ2506
Manufacturer	Diodes Incorporated
File Size	213.70 KB
Description	25A GLASS PASSIVATED BRIDGE RECTIFIER
Datasheet	GBJ2506 Datasheet

Key Features

Glass Passivated Die Construction.
High Case Dielectric Strength of 2500VRMS.
Low Reverse Leakage Current.
Surge Overload Rating to 350A Peak.
Ideal for Printed Circuit Board.
