FZT949 - PNP MEDIUM POWER TRANSISTOR

Product Overview

Diodes

Part number	FZT949
Manufacturer	DIODES
File Size	549.14 KB
Description	PNP MEDIUM POWER TRANSISTOR
Datasheet	FZT949 Datasheet

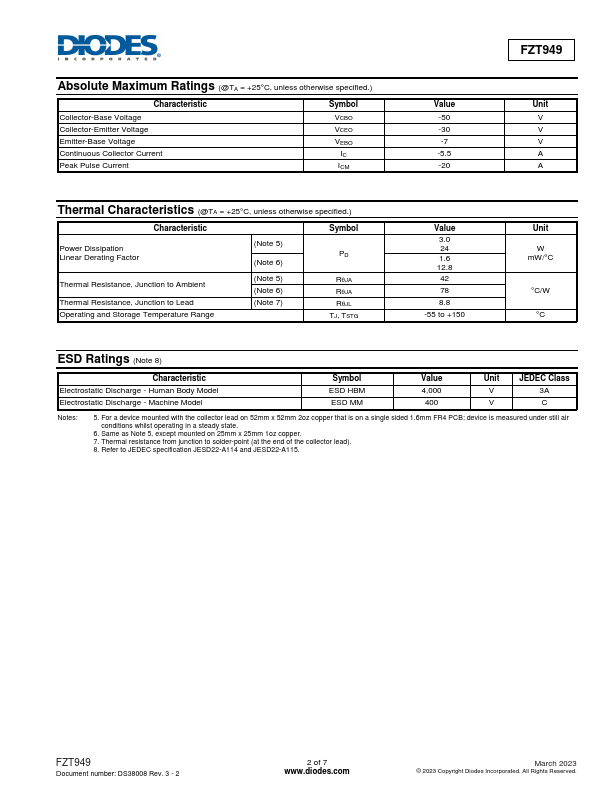

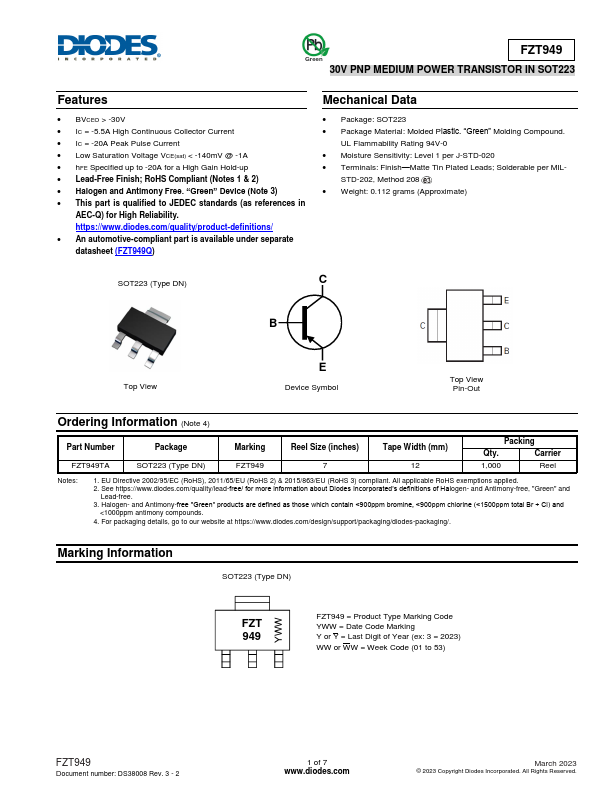

Additional preview pages of the FZT949 datasheet.

BVCEO > -30V.
IC = -5.5A High Continuous Collector Current.
IC = -20A Peak Pulse Current.
Low Saturation Voltage VCE(sat) < -140mV @ -1A.
hFE Specified up to -20A for a High Gain Hold-Up.
Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
PPAP Capable (Note 4) A Product Line of Diodes Incorporated Green FZT949 30V PNP MEDIUM POWER.
