FZT751Q - PNP HIGH PERFORMANCE TRANSISTOR

General Description

This Bipolar Junction Transistor (BJT) is designed to meet the stringent requirements of automotive applications.

Key Features

  • BVCEO > -60V.
  • IC = -3A High Continuous Current.
  • ICM = -6A Peak Pulse Current.
  • Low Saturation Voltage VCE(sat) < -300mV @ -1A.
  • Complementary NPN Type: FZT651Q.
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability.
  • PPAP Capable (Note 4) A Product Line of Diodes Incorporated Green FZT751Q 60V PNP HIGH.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FZT751 High Performance Transistor Guangdong Kexin Industrial
FZT704 SOT223 NPN SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTORS ETC
FZT749 PNP Low Saturation Transistor Fairchild Semiconductor
FZT749 Medium Power Transistor Kexin
FZT790A PNP Low Saturation Transistor Fairchild Semiconductor

Other Datasheets by Diodes Incorporated

Part Number Description
FZT751 PNP HIGH PERFORMANCE TRANSISTOR
FZT753 100V PNP HIGH PERFORMANCE TRANSISTOR
FZT755 150V PNP MEDIUM POWER TRANSISTOR
FZT757 300V PNP HIGH VOLTAGE TRANSISTOR
FZT758 400V PNP HIGH VOLTAGE TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

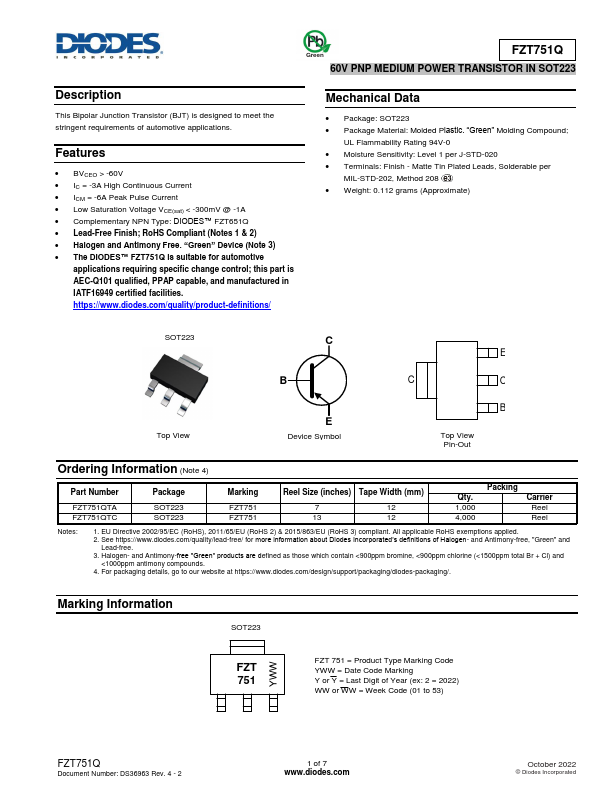

Description This Bipolar Junction Transistor (BJT) is designed to meet the stringent requirements of automotive applications. Features • BVCEO > -60V • IC = -3A High Continuous Current • ICM = -6A Peak Pulse Current • Low Saturation Voltage VCE(sat) < -300mV @ -1A • Complementary NPN Type: FZT651Q • Lead-Free Finish; RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • Qualified to AEC-Q101 Standards for High Reliability • PPAP Capable (Note 4) A Product Line of Diodes Incorporated Green FZT751Q 60V PNP HIGH PERFORMANCE TRANSISTOR IN SOT223 Applications • Automotive Lighting • MOSFET and IGBT Gate Driving Mechanical Data • Case: SOT223 • Case Material: Molded Plastic. “Green” Molding Compound.
