KPC6N139 - 8PIN HIGH-SPEED DARLINGTON OUTPUT PHOTOCOUPLER

Product Overview

Cosmo

📥 Download Datasheet

KPC6N139 8PIN HIGH-SPEED DARLINGTON OUTPUT PHOTOCOUPLER by Cosmo - Datasheet Preview — Datasheet preview – KPC6N139

Datasheet Details

Part number	KPC6N139
Manufacturer	Cosmo
File Size	296.41 KB
Description	8PIN HIGH-SPEED DARLINGTON OUTPUT PHOTOCOUPLER
Datasheet	KPC6N139 Datasheet

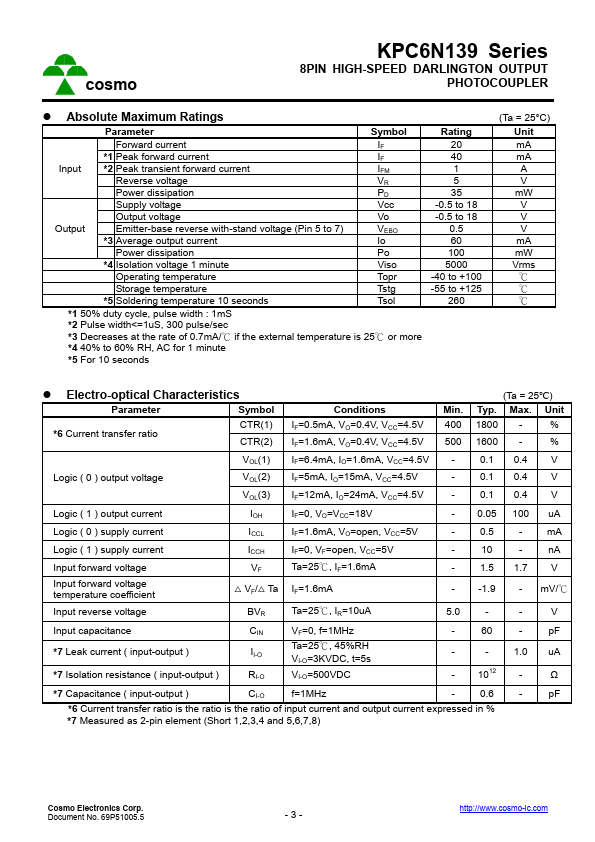

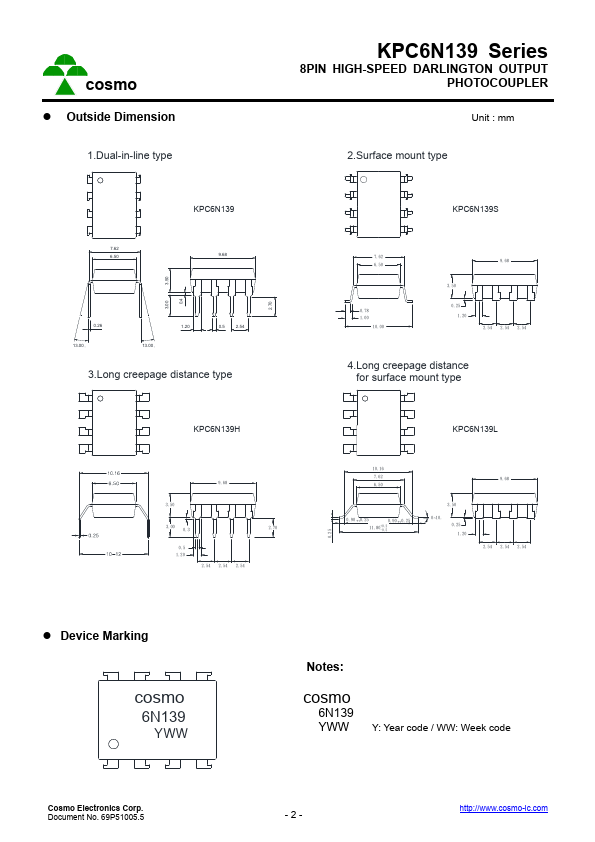

Additional preview pages of the KPC6N139 datasheet.

Product details

Description

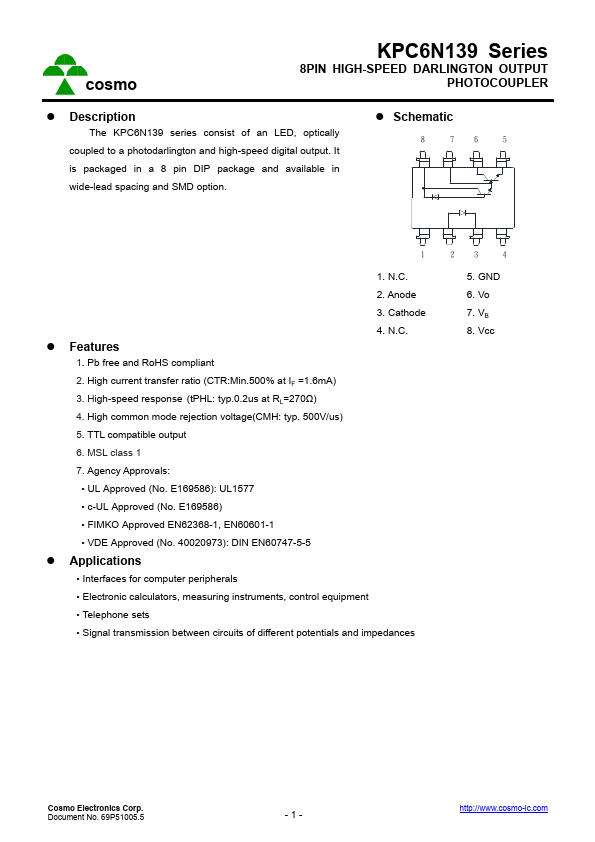

The KPC6N139 series consist of an LED, optically coupled to a photodarlington and high-speed digital output. Schematic 87 6 5

Features

s 1. Pb free and RoHS compliant 2. High current transfer ratio (CTR:Min.500% at IF =1.6mA) 3. High-speed response (tPHL: typ.0.2us at RL=270Ω) 4. High common mode rejection voltage(CMH: typ. 500V/us) 5. TTL compatible output 6. MSL class 1 7. Agency Approvals:.
UL Approved (No. E169586): UL1577.
c-UL Approved (No. E169586).
FIMKO Approved: EN60065, EN60950 1 1. N. C. 2. Anode 3. Cathode 4. N. C. 23 4 5. GND 6. Vo 7. VB 8. Vcc.
