CZT127 - TRANSISTOR

Download the CZT127 datasheet PDF. This datasheet also covers the CZT122 variant, as both devices belong to the same transistor family and are provided as variant models within a single manufacturer datasheet.

Description

The CENTRAL SEMICONDUCTOR CZT122, CZT127 types are Complementary Silicon Power Darlington Transistors manufactured in a surface mount package designed for low speed switching and amplifier applications.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CZT122_CentralSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
CZT127 PNP Transistor JCST
CZT127 Surface Mount PNP Silicon Power Darlington Transistor Kexin
CZT127 TRANSISTOR TY Semiconductor
CZT122 NPN Transistor JCST
CZT122 NPN Transistor Guangdong Kexin Industrial

Other Datasheets by Central Semiconductor

Part Number Description
CZT122 TRANSISTOR
CZT2222A SURFACE MOUNT SILICON NPN TRANSISTOR
CZT2680 SURFACE MOUNT NPN SILICON TRANSISTOR
CZT2955 SURFACE MOUNT COMPLEMENTARY SILICON POWER TRANSISTORS
CZT3055 SURFACE MOUNT COMPLEMENTARY SILICON POWER TRANSISTORS

Full PDF Text Transcription

Click to expand full text

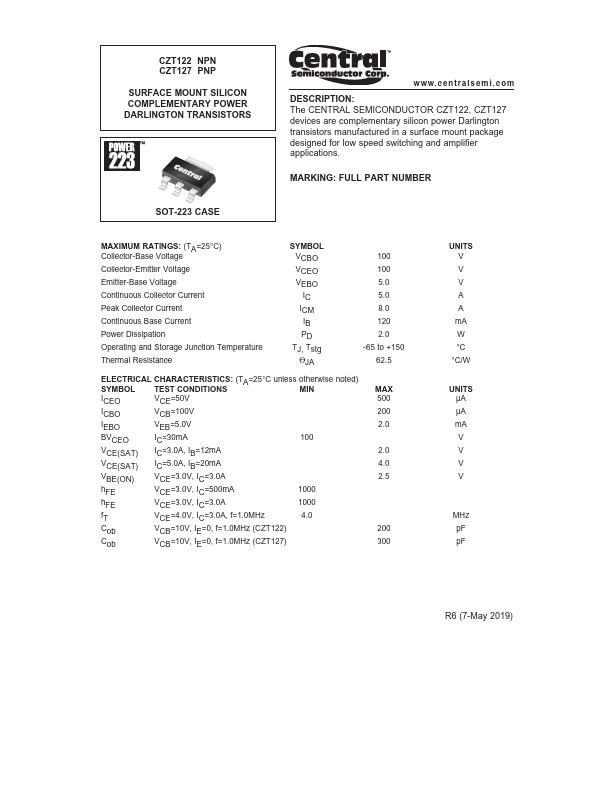

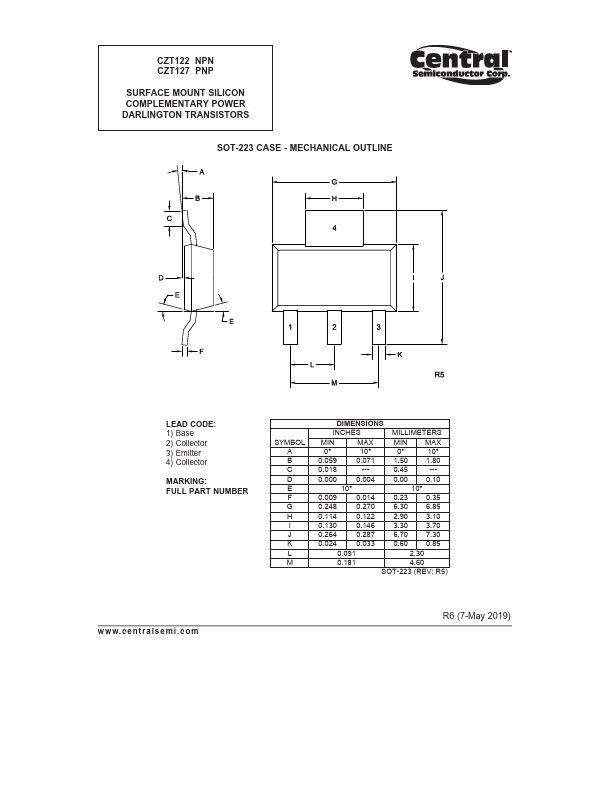

www.DataSheet.co.kr CZT122 NPN CZT127 PNP SURFACE MOUNT COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTOR Central TM Semiconductor Corp. DESCRIPTION: The CENTRAL SEMICONDUCTOR CZT122, CZT127 types are Complementary Silicon Power Darlington Transistors manufactured in a surface mount package designed for low speed switching and amplifier applications. MARKING CODE: FULL PART NUMBER SOT-223 CASE MAXIMUM RATINGS: (TA=25°C) Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Peak Collector Current Base Current Power Dissipation Operating and Storage Junction Temperature Thermal Resistance TJ,Tstg ΘJA -65 to +150 62.5 °C °C/W SYMBOL VCBO VCEO VEBO IC ICM IB PD 100 100 5.0 5.0 8.0 120 2.
