BCW61D - PNP SILICON TRANSISTOR

This page provides the datasheet information for the BCW61D, a member of the BCW61B PNP SILICON TRANSISTOR family.

Description

The CENTRAL SEMICONDUCTOR BCW61B Series types are PNP Silicon Transistors manufactured by the epitaxial planar process, epoxy molded in a surface mount package, designed for low level, low noise applications.

📥 Download Datasheet

Datasheet preview – BCW61D

Datasheet Details

Part number BCW61D
Manufacturer Central Semiconductor
File Size 121.30 KB
Description PNP SILICON TRANSISTOR
Datasheet download datasheet BCW61D Datasheet
Additional preview pages of the BCW61D datasheet.

📁 Similar Datasheet

  • BCW61D - PNP general purpose transistors (NXP)
  • BCW61D - PNP Silicon AF Transistors (For AF input stages and driver applications High current gain) (Siemens Semiconductor Group)
  • BCW61D - PNP Silicon AF Transistors (Infineon)
  • BCW61D - Transistor (Fairchild Semiconductor)
  • BCW61D - (BCW61x) Surface Mount General Purpose Si-Epi-Planar Transistors (Diotec Semiconductor)
  • BCW61D - Small Signal Transistors (Vishay)
  • BCW61D - SILICON PLANAR EPITAXIAL TRANSISTORS (CDIL)
  • BCW61D - General Purpose Transistor (Kexin)
  • BCW61D - GENERAL PURPOSE TRANSISTOR (Motorola)
  • BCW61D - PNP Transistoor (RECTRON)
Other Datasheets by Central Semiconductor
  • BCW61B - PNP Transistor
  • BCW61C - PNP SILICON TRANSISTOR
  • BCW65 - SILICON NPN TRANSISTORS
  • BCW65A - SILICON NPN TRANSISTORS
  • BCW65B - SILICON NPN TRANSISTORS
  • BCW65C - SILICON NPN TRANSISTORS
  • BCW66 - SILICON NPN TRANSISTORS
  • BCW66F - SILICON NPN TRANSISTORS

Full PDF Text Transcription

Click to expand full text

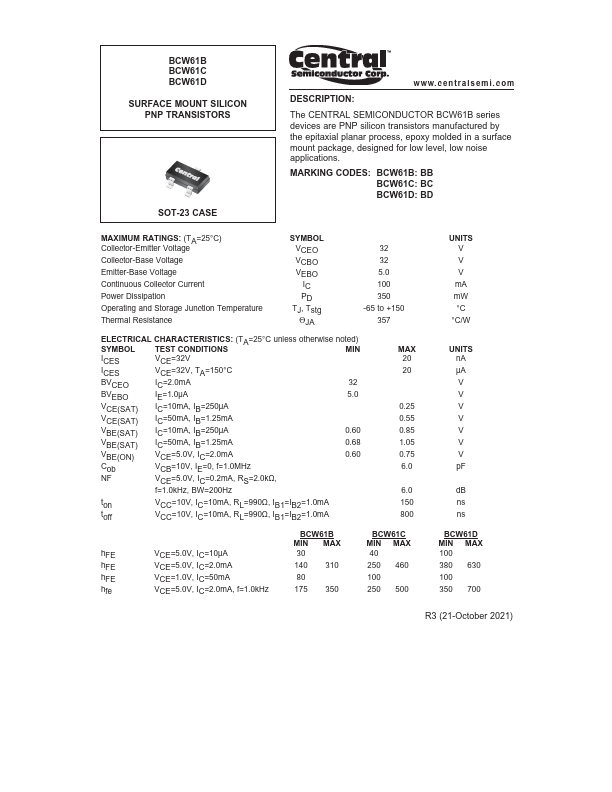

BCW61B BCW61C BCW61D SURFACE MOUNT PNP SILICON TRANSISTOR CentralTM Semiconductor Corp. DESCRIPTION: The CENTRAL SEMICONDUCTOR BCW61B Series types are PNP Silicon Transistors manufactured by the epitaxial planar process, epoxy molded in a surface mount package, designed for low level, low noise applications. MARKING CODES: BCW61B : BB BCW61C : BC BCW61D : BD SOT-23 CASE MAXIMUM RATINGS (TA=25°C) SYMBOL Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Power Dissipation Operating and Storage Junction Temperature Thermal Resistance VCEO VCBO VEBO IC PD TJ,Tstg ΘJA 32 32 5.
