CMSD2004S - HIGH VOLTAGE SWITCHING DIODE

Datasheet Summary

Description

The CENTRAL SEMICONDUCTOR CMSD2004S type is a dual, in series silicon switching diode manufactured by the epitaxial planar process, designed for applications requiring high voltage capability.

Central Semiconductor Corp

📥 Download Datasheet

Datasheet Details

Part number	CMSD2004S
Manufacturer	Central Semiconductor Corp
File Size	211.53 KB
Description	HIGH VOLTAGE SWITCHING DIODE
Datasheet	CMSD2004S Datasheet
Additional preview pages of the CMSD2004S datasheet.

📁 Similar Datasheet

CMSD2004S - SWITCHING DIODE (JCET)
CMSD2004S - SURFACE MOUNT FAST SWITCHING DIODE (LITE-ON)
CMSD2004S - Surface mount switching diode (GME)
CMSD2005S - HIGH VOLTAGE SILICON SWITCHING DIODES (Central Semiconductor)
CMSD2836 - DUAL SILICON SWITCHING DIODES (Central Semiconductor)
CMSD2838 - DUAL SILICON SWITCHING DIODES (Central Semiconductor)
CMSD4448 - HIGH SPEED SILICON SWITCHING DIODE (Central Semiconductor)
CMSD6001 - ULTRA LOW LEAKAGE SILICON SWITCHING DIODES (Central Semiconductor)
CMSD6001A - ULTRA LOW LEAKAGE SILICON SINGLE SWITCHING DIODES (Central Semiconductor)
CMSD6001C - ULTRA LOW LEAKAGE SILICON DUAL SWITCHING DIODES (Central Semiconductor)

Other Datasheets by Central Semiconductor Corp

CMSSH-3 - SUPER-MINI SCHOTTKY DIODES
CMSSH-3A - SUPER-MINI SCHOTTKY DIODES
CMSSH-3C - SUPER-MINI SCHOTTKY DIODES
CMSSH-3S - SUPER-MINI SCHOTTKY DIODES
CMST2222A - SUPER-MINI NPN SILICON TRANSISTOR
CMST2907A - SUPER-MINI PNP SILICON TRANSISTOR
CMST3906 - SILICON PNP TRANSISTORS

Full PDF Text Transcription

Click to expand full text

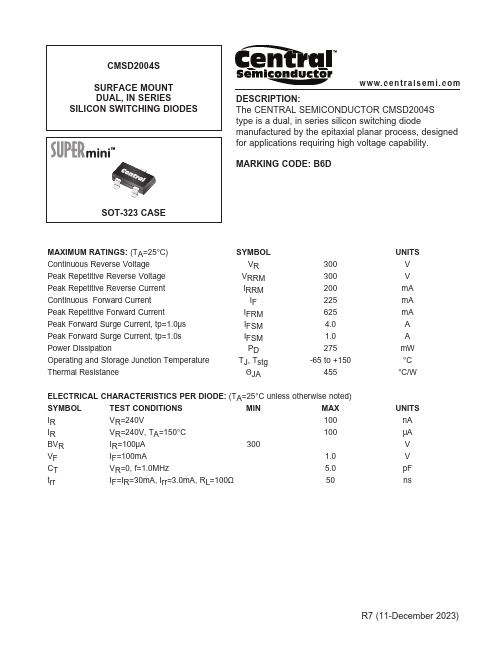

CMSD2004S SURFACE MOUNT DUAL, IN SERIES SILICON SWITCHING DIODES w w w. c e n t r a l s e m i . c o m DESCRIPTION: The CENTRAL SEMICONDUCTOR CMSD2004S type is a dual, in series silicon switching diode manufactured by the epitaxial planar process, designed for applications requiring high voltage capability. MARKING CODE: B6D SOT-323 CASE MAXIMUM RATINGS: (TA=25°C) Continuous Reverse Voltage Peak Repetitive Reverse Voltage Peak Repetitive Reverse Current Continuous Forward Current Peak Repetitive Forward Current Peak Forward Surge Current, tp=1.0μs Peak Forward Surge Current, tp=1.0s Power Dissipation Operating and Storage Junction Temperature Thermal Resistance SYMBOL VR VRRM IRRM IF IFRM IFSM IFSM PD TJ, Tstg ΘJA 300 300 200 225 625 4.0 1.
