N156B3-P0B - TFT LCD Module

Description

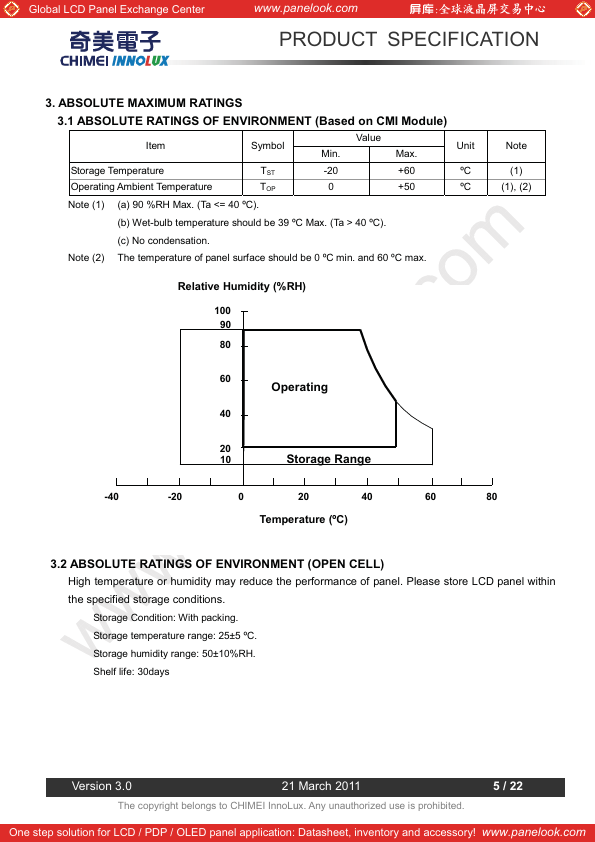

High temperature or humidity may reduce the performance of panel.

CHIMEI Innolux

Datasheet Details

Part number	N156B3-P0B
Manufacturer	CHIMEI Innolux
File Size	765.78 KB
Description	TFT LCD Module
Datasheet	N156B3-P0B Datasheet
Additional preview pages of the N156B3-P0B datasheet.

📁 Similar Datasheet

N156B3-L01 - TFT LCD Module (CMI MEI)
N156B3-L02 - TFT LCD Module (CMI MEI)
N156B3-L03 - TFT LCD Module (CMI MEI)
N156B3-L04 - TFT LCD Module (CMI MEI)
N156B3-L0B - TFT LCD Module (CMI MEI)
N156B6-L01 - TFT LCD Module (CMI MEI)
N156B6-L02 - TFT LCD (Chi Mei)
N156B6-L03 - TFT LCD (Chi Mei)
N156B6-L04 - TFT LCD (Chi Mei)
N156B6-L05 - TFT LCD Module (CMI MEI)

Other Datasheets by CHIMEI Innolux

N156B6-L3D - TFT LCD Module
N156B6-P03 - TFT LCD Module
N156B6-P0B - TFT LCD Module
N156BGE-E21 - TFT LCD Module
N156BGE-EA1 - TFT LCD Module
N156BGE-EB1 - TFT LCD Module
N156BGE-L11 - TFT LCD Module
N156BGE-L11-5FNJX - TFT LCD Module

Full PDF Text Transcription

Click to expand full text

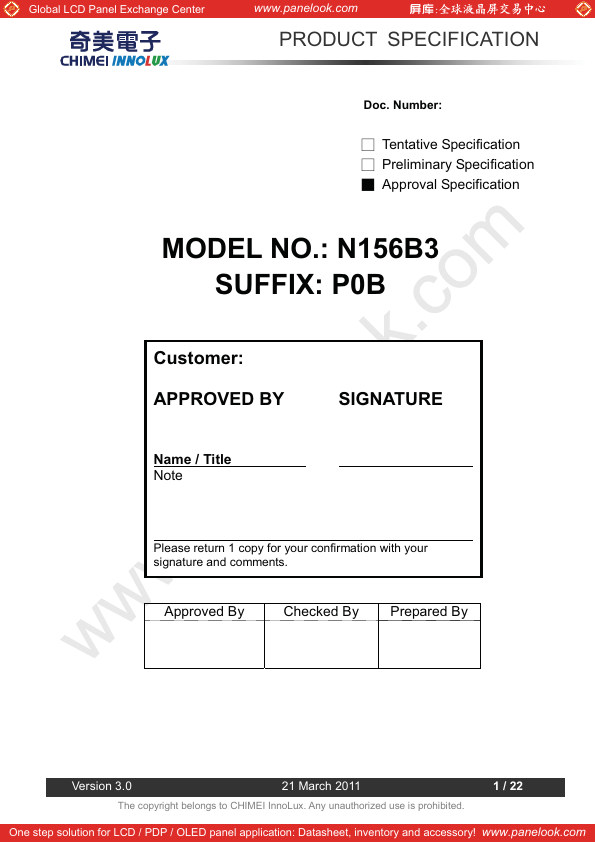

Global LCD Panel Exchange Center www.panelook.com PRODUCT SPECIFICATION Doc. Number: ϭʳ Tentative Specification ϭʳ Preliminary Specification Ϯʳ Approval Specification MODEL NO.: N156B3 SUFFIX: P0B Customer: APPROVED BY Name / Title Note SIGNATURE Please return 1 copy for your confirmation with your signature and comments. Approved By Checked By Prepared By Version 3.0 21 March 2011 The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited. 1 / 22 One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com PRODUCT SPECIFICATION CONTENTS 1. GENERAL DESCRIPTION .....................................................................................................

Published: Jan 13, 2015 |
