G185BGE-L01
DESCRIPTION

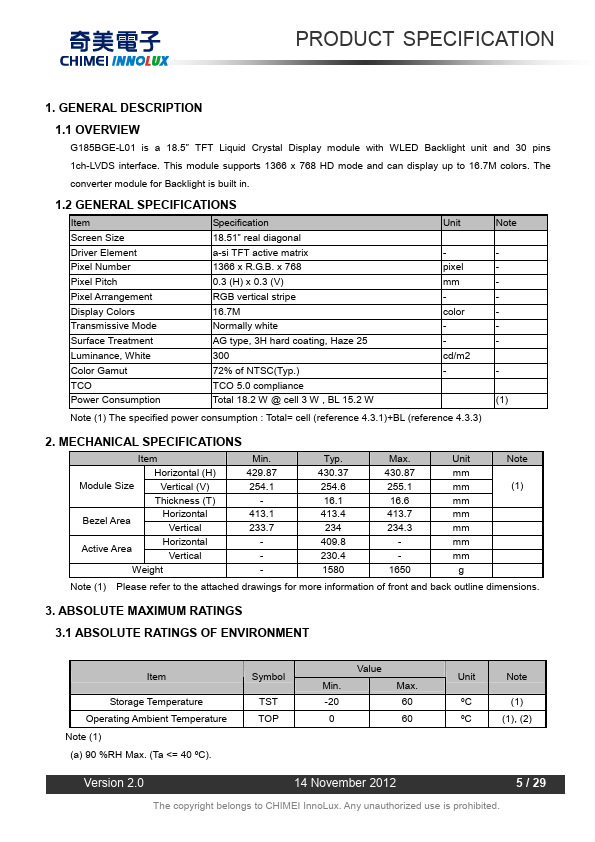

1.1 OVERVIEW
G185BGE-L01 is a 18.5” TFT Liquid Crystal Display module with WLED Backlight unit and 30 pins 1ch-LVDS interface. This module supports 1366 x 768 HD mode and can display up to 16.7M colors. The converter module for Backlight is built in.
1.2 GENERAL SPECIFICATIONS
Item Screen Size Driver Element Pixel Number Pixel Pitch Pixel Arrangement Display Colors Transmissive Mode Surface Treatment Luminance, White Color Gamut TCO Power Consumption
Specification 18.51” real diagonal a-si TFT active matrix 1366 x R.G.B. x 768 0.3 (H) x 0.3 (V) RGB vertical stripe 16.7M Normally white AG type, 3H hard coating, Haze 25 300 72% of NTSC(Typ.) TCO 5.0 pliance Total 18.2 W @ cell 3 W , BL 15.2 W
Unit pixel mm color cd/m2
- Note (1) The specified power consumption : Total= cell (reference 4.3.1)+BL (reference 4.3.3)
Note
- -
(1)
2. MECHANICAL SPECIFICATIONS
Item
Horizontal (H)
Module Size
Vertical (V)
Thickness (T)
Bezel Area
Horizontal Vertical
Active...
