HDSP-4603 - Seven-Segment Displays

Product Overview

Broadcom

📥 Download Datasheet

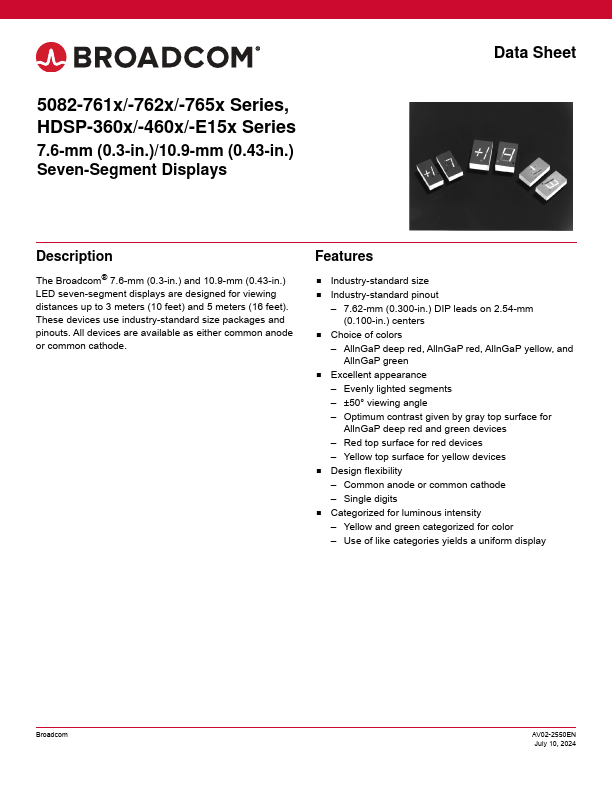

HDSP-4603 Seven-Segment Displays by Broadcom - Datasheet Preview — Datasheet preview – HDSP-4603

Datasheet Details

Part number	HDSP-4603
Manufacturer	Broadcom
File Size	1.02 MB
Description	Seven-Segment Displays
Datasheet	HDSP-4603 Datasheet
Note	This datasheet PDF includes multiple part numbers: HDSP-4603, HDSP-3600. Please refer to the document for exact specifications by model.

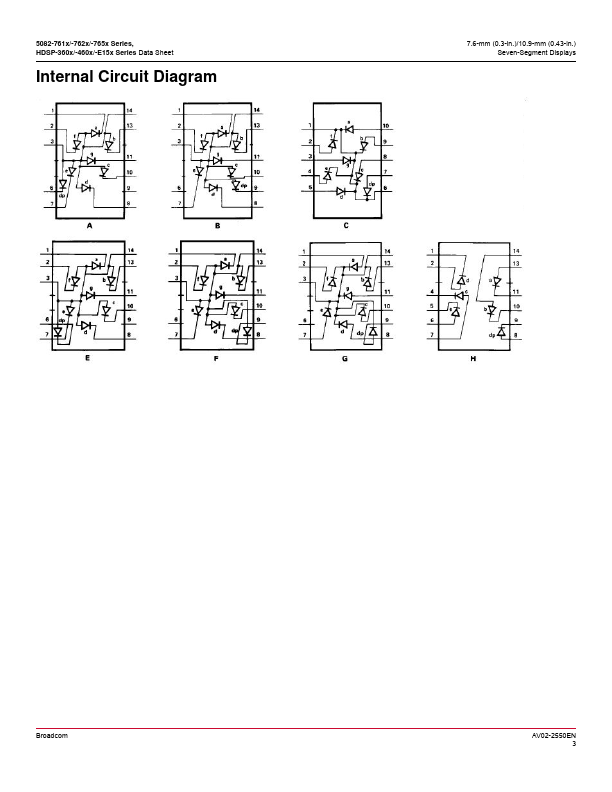

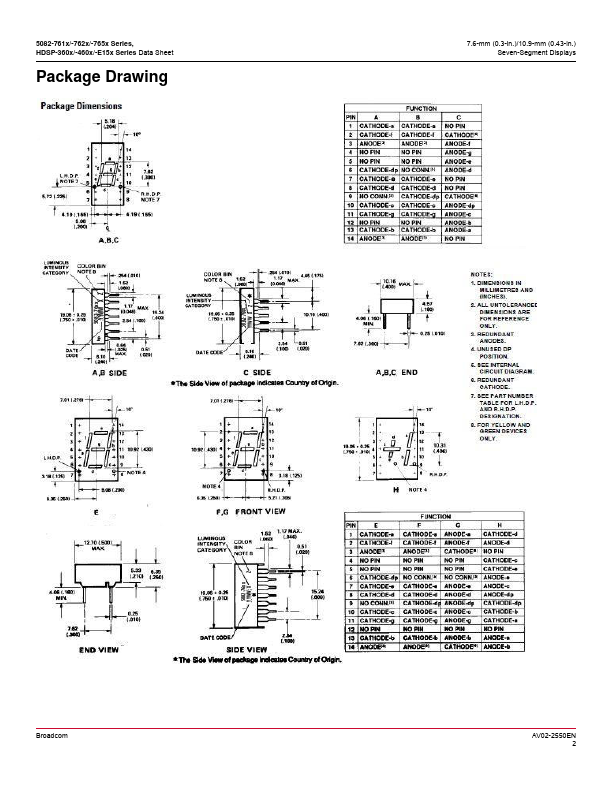

Additional preview pages of the HDSP-4603 datasheet.

Product details

Description

The Broadcom® 7.6-mm (0.3-in.) and 10.9-mm (0.43-in.) LED seven-segment displays are designed for viewing distances up to 3 meters (10 feet) and 5 meters (16 feet).

Features

Industry-standard size.
Industry-standard pinout.
7.62-mm (0.300-in. ) DIP leads on 2.54-mm (0.100-in. ) centers.
Choice of colors.
AllnGaP deep red, AllnGaP red, AllnGaP yellow, and AllnGaP green.
Excellent appearance.
Evenly lighted segments.
±50° viewing angle.
Optimum contrast given by gray top surface for AllnGaP deep red and green devices.
Red top surface for red devices.
Yellow top surface for yellow devices.
